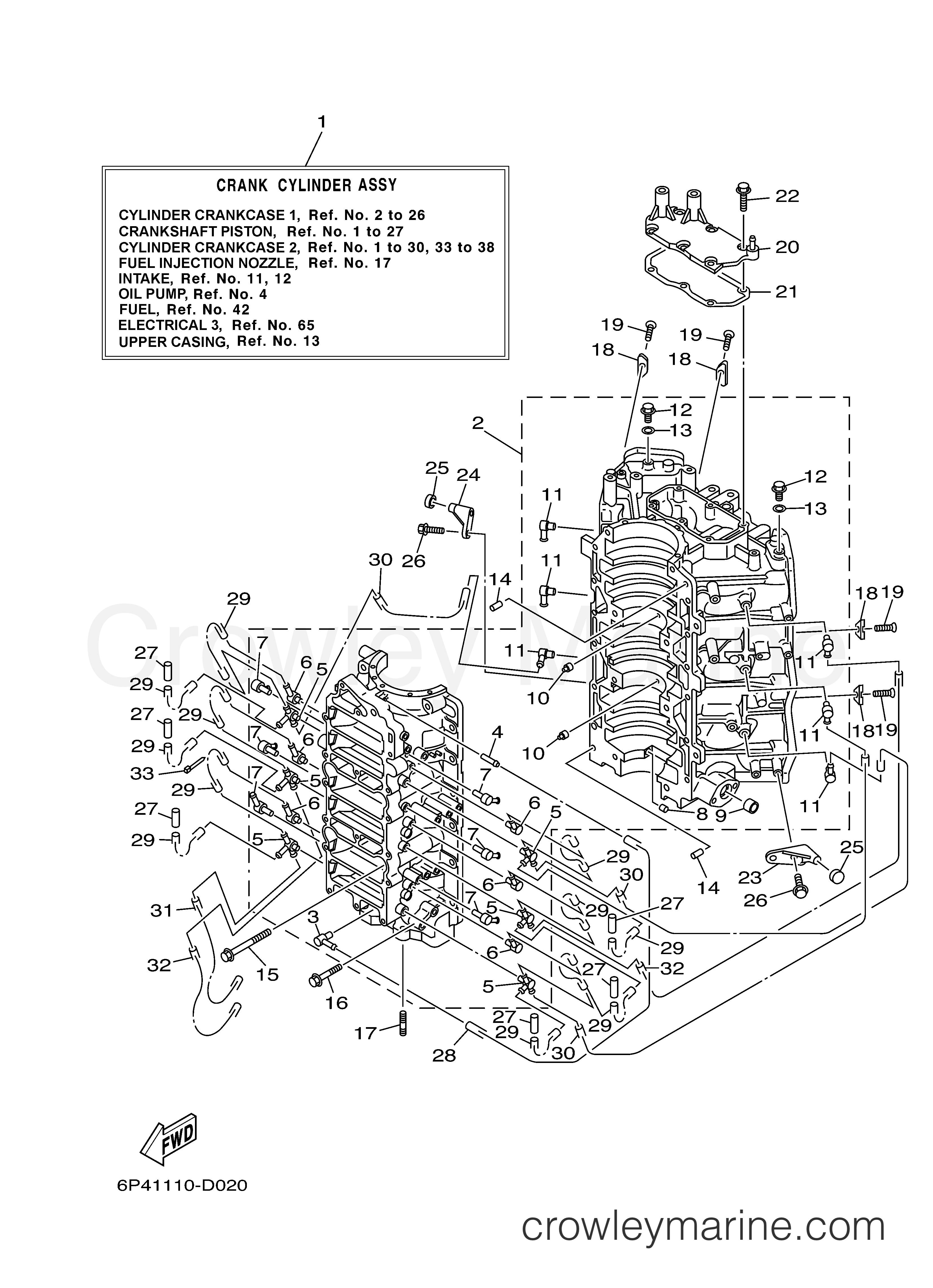

2005 Outboard 200hp - Z200TXRD CYLINDER CRANKCASE 1 diagram
-15%
1
Yamaha Motors
Crank Cylinder Assembly68F-W0090-14-1S
Required: 1
CRANK CYLINDER ASSY
$6214.90
You save $1096.75
-15%
1
Yamaha Motors
Crank Cylinder Assembly68L-W0090-13-1S
Required: 1
CRANK CYLINDER ASSY
$6611.00
You save $1166.65
-15%
2
Yamaha Motors
Crankcase Assembly68F-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 68F-15100-00-1S
No longer availableSearch Nationwide Inventory
$4612.94
You save $814.05
-15%
2
Yamaha Motors
Crankcase Assembly68L-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 68L-15100-00-1S
$4096.99
You save $723.00
-15%
3
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 1
.NIPPLE, HOSE
$8.92
You save $1.57
-15%
$7.22
You save $1.27
-15%
5
Yamaha Motors
Hose Nipple68F-11372-01-00
Required: 6
.NIPPLE, HOSE
$13.59
You save $2.40
-20%
6
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 6
.CHECK VALVE ASSY
In stock
5+ in stock
$13.99
You save $3.50
-15%
$14.02
You save $2.47
-15%
8
Yamaha Motors
Bimetal Formed Bushing90384-06002-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-06M07-00
$3.19
You save $0.56
-15%
9
Yamaha Motors
Bimetal Formed Bushing90384-14011-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-14M09-00
No longer availableSearch Nationwide Inventory
$5.74
You save $1.01
-15%
10
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 2
.LOCK, BEARING
$9.77
You save $1.72
-20%
11
Yamaha Motors
Check Valve Assembly646-11370-01-00
Required: 6
.CHECK VALVE ASSY
In stock
Only 4 remaining
$11.99
You save $3.00
-20%
12
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.59
You save $2.90
-20%
In stock
Only 2 remaining
$2.48
You save $0.62
-50%
In stock
Only 1 remaining
$3.50
You save $3.50
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
-15%
16
Yamaha Motors
Bolt with Washer90119-08M94-00
Required: 12
BOLT, WITH WASHER
$4.04
You save $0.71
-15%
17
Yamaha Motors
Stud Bolt90116-08M14-00
Required: 2
BOLT, STUD
Supersedes: 90116-08M45-00
$5.94
You save $1.05
-20%
In stock
5+ in stock
$4.76
You save $1.19
-20%
19
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 8
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
$56.09
You save $9.90
-15%
$12.32
You save $2.17
-20%
22
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 6
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-15%
$14.87
You save $2.62
-15%
$10.19
You save $1.80
-50%
25
Yamaha Motors
DAMPER UPPER MOUNT RUBBER68F-44533-02-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
Supersedes: 68F-44533-00-00
In stock
Only 1 remaining
$3.75
You save $3.75
-20%
26
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-20%
27
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 6
.HOSE (L34)
Supersedes: 90445-07M03-00
In stock
5+ in stock
$6.39
You save $1.60
-15%
28
Yamaha Motors
Hose (L610)90445-07M11-00
Required: 1
HOSE (L510)
Supersedes: 90445-07M10-00
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-15%
29
Yamaha Motors
Hose (L150)90445-07MA5-00
Required: 12
HOSE (L90)
Supersedes: 90445-07MA6-00
No longer availableSearch Nationwide Inventory
$6.29
You save $1.11
-20%
30
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 3
HOSE (L280)
Supersedes: 90445-07MA4-00
In stock
5+ in stock
$6.39
You save $1.60
-20%
31
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L340)
Supersedes: 90445-07M45-00
In stock
5+ in stock
$6.39
You save $1.60
-15%
32
Yamaha Motors
Hose90445-07M67-00
Required: 2
HOSE (L310)
Supersedes: 90445-07M27-00
No longer availableSearch Nationwide Inventory
$6.29
You save $1.11
-15%
No longer availableSearch Nationwide Inventory
$2.68
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
