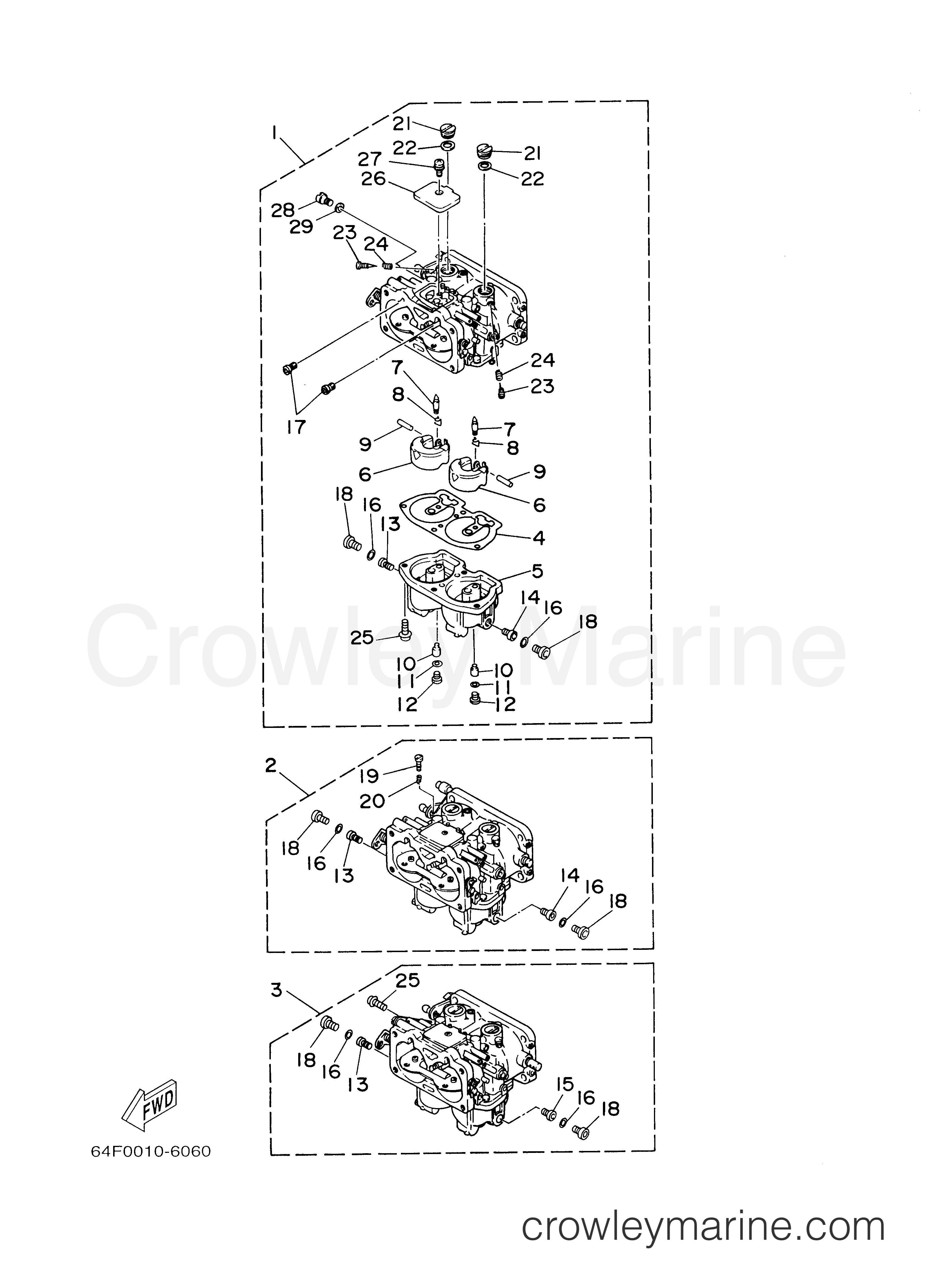

2005 Outboard 150hp - V150TLR CARBURETOR diagram
-15%
1
Yamaha Motors
Carburetor Assembly64K-14301-10-00
Required: 1
CARBURETOR ASSY 1
No longer availableSearch Nationwide Inventory
$480.21
You save $84.74
-15%
2
Yamaha Motors
Carburetor Assembly64K-14302-10-00
Required: 1
CARBURETOR ASSY 2
No longer availableSearch Nationwide Inventory
$501.49
You save $88.50
-15%
3
Yamaha Motors
Carburetor Assembly64K-14303-10-00
Required: 1
CARBURETOR ASSY 3
No longer availableSearch Nationwide Inventory
$448.42
You save $79.13
-20%
4
Yamaha Motors
Float Chamber Gasket64D-14384-01-00
Required: 3
.GASKET, FLOAT CHAMBER
PartX Recommends:Yamaha Motors 64D-14384-01-00
In stock
5+ in stock
$63.99
You save $16.00
-50%
5
Yamaha Motors
Float Chamber Body64D-14381-00-00
Required: 3
.BODY, FLOAT CHAMBER
In stock
Only 1 remaining
$87.00
You save $87.00
-20%
In stock
5+ in stock
$29.59
You save $7.40
-20%
7
Yamaha Motors
Needle Valve6E5-14546-00-00
Required: 6
.VALVE, NEEDLE
In stock
5+ in stock
$16.79
You save $4.20
-15%
$11.47
You save $2.02
-50%
In stock
Only 5 remaining
$4.75
You save $4.75
-15%
10
Yamaha Motors
Air Slow (#84) Jet64D-1492F-42-00
Required: 6
.JET, AIR SLOW (#84)
$29.74
You save $5.25
-20%
In stock
5+ in stock
$6.79
You save $1.70
-20%
12
Yamaha Motors
Drain Valve64D-14394-00-00
Required: 6
.VALVE, DRAIN
In stock
5+ in stock
$19.19
You save $4.80
-15%
13
Yamaha Motors
Main (#152) Jet64D-1492E-76-00
Required: 3
.JET, MAIN (#152)
$34.84
You save $6.15
-15%
14
Yamaha Motors
Main Jet (#154)64D-1492E-77-00
Required: 2
.JET, MAIN (#154)
$34.84
You save $6.15
-15%
15
Yamaha Motors
Main (#158) Jet64D-1492E-79-00
Required: 1
.JET, MAIN (#158)
$34.84
You save $6.15
-20%
In stock
5+ in stock
$5.59
You save $1.40
-20%
17
Yamaha Motors
Slow Air Bleed Jet (#60)61A-1492H-12-00
Required: 6
.JET, SLOW AIR BLEED (#60)
$26.39
You save $6.60
-15%
18
Yamaha Motors
Drain Screw61A-14383-01-00
Required: 6
.SCREW, DRAIN
$10.19
You save $1.80
-15%
19
Yamaha Motors
Throttle Screw6E5-14321-00-00
Required: 1
.SCREW, THROTTLE
$36.54
You save $6.45
-50%
20
Yamaha Motors
Throttle Spring6J8-14334-00-00
Required: 1
.SPRING, THROTTLE
In stock
Only 1 remaining
$4.00
You save $4.00
-50%
In stock
Only 4 remaining
$7.50
You save $7.50
-20%
In stock
Only 1 remaining
$4.79
You save $1.20
-20%
23
Yamaha Motors
Air Adjusting Screw6E5-14323-03-00
Required: 6
.SCREW, AIR ADJUSTING
$19.99
You save $5.00
-50%
24
Yamaha Motors
Air Adjusting Spring6E5-14223-00-00
Required: 6
.SPRING, AIR ADJUSTING
In stock
Only 2 remaining
$4.75
You save $4.75
-15%
25
Yamaha Motors
Screw With Washer97980-05116-00
Required: 13
.SCREW, WITH WASHER
$4.67
You save $0.82
-15%
$15.29
You save $2.70
-15%
27
Yamaha Motors
Screw With Washer97980-05108-00
Required: 3
.SCREW, WITH WASHER
$4.17
You save $0.74
-15%
28
Yamaha Motors
Flat Head Screw6E5-14324-00-00
Required: 3
.SCREW, FLAT HEAD
$10.19
You save $1.80
-20%
29
Yamaha Motors
Gasket6J8-14995-00-00
Required: 3
.GASKET
Supersedes: 6J8-14959-00-00
In stock
5+ in stock
$2.92
You save $0.73
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
