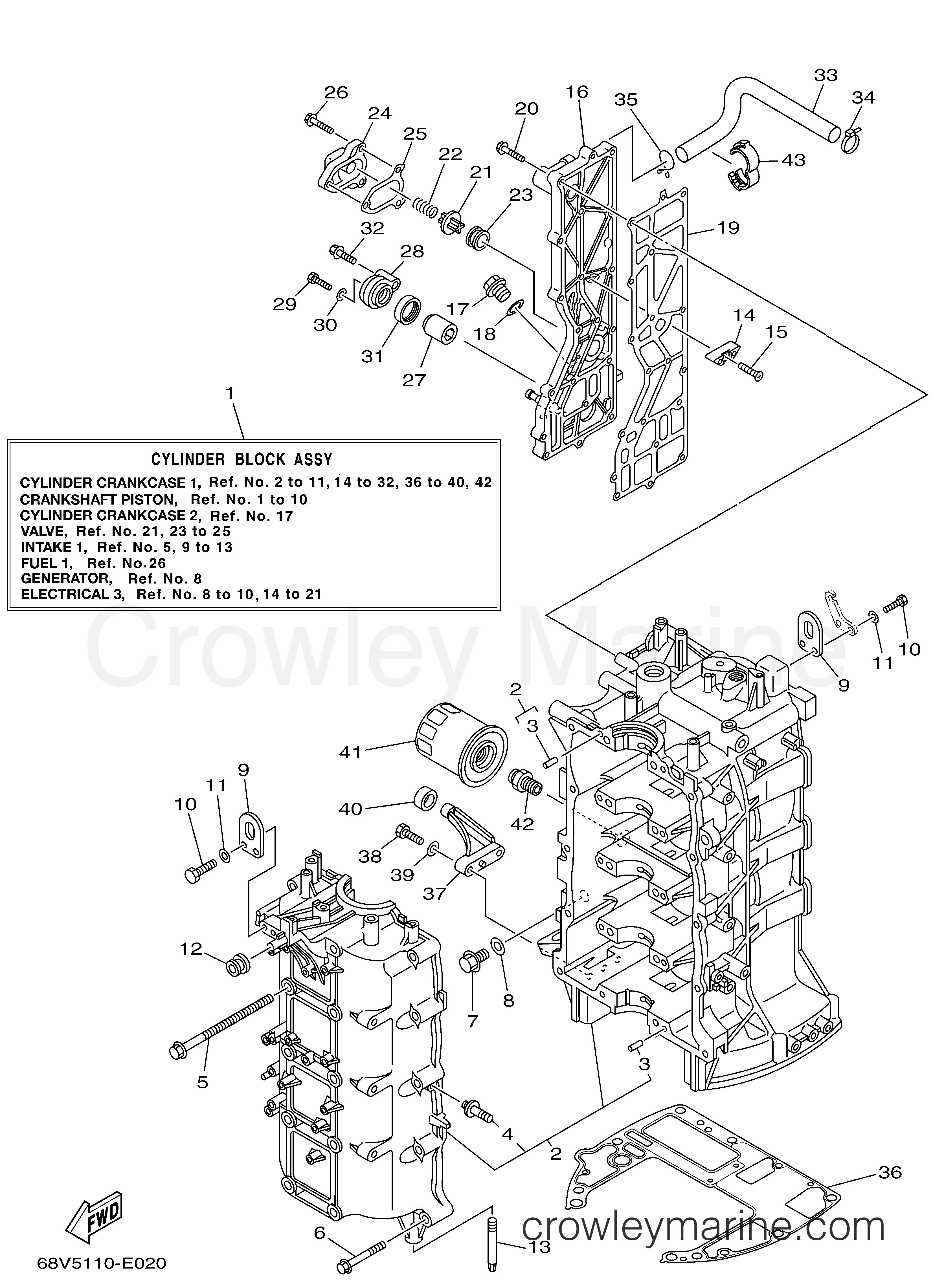

2005 Outboard 115hp - F115TLR CYLINDER CRANKCASE 1 diagram
-15%
1
Yamaha Motors
Cylinder Block Assembly68V-W009B-19-9S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 68V-W009B-06-1S
$2940.00
You save $518.50
-15%
2
Yamaha Motors
Crankcase Assembly68V-15100-03-00
Required: 1
CRANKCASE ASSY
Supersedes: 68V-15100-02-1S
$1745.04
You save $307.95
-20%
In stock
5+ in stock
$3.68
You save $0.92
-15%
4
Yamaha Motors
BOLT68V-44581-A0-00
Required: 1
.BOLT
Supersedes: 68V-44581-01-00
$19.54
You save $3.45
-15%
5
Yamaha Motors
Bolt with Washer90119-10M88-00
Required: 10
BOLT, WITH WASHER
$11.47
You save $2.02
-15%
6
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.19
You save $0.56
-20%
7
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$11.59
You save $2.90
-20%
In stock
Only 2 remaining
$2.48
You save $0.62
-15%
9
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 2
HANGER, ENGINE
$11.89
You save $2.10
-20%
10
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
In stock
5+ in stock
$7.59
You save $1.90
-15%
$24.64
You save $4.35
-20%
In stock
5+ in stock
$4.76
You save $1.19
-20%
15
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 3
SCREW, FLAT HEAD
In stock
Only 4 remaining
$1.19
You save $0.30
-15%
16
Yamaha Motors
Obsolete Yamaha Part68V-WS41D-02-9S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6D8-41113-00-1S
$222.69
You save $39.30
-15%
17
Yamaha Motors
Straight Screw Plug90340-18M09-00
Required: 1
.PLUG, STRAIGHT SCREW
$24.64
You save $4.35
-15%
$8.07
You save $1.42
-20%
19
Yamaha Motors
Exhaust Outer Cover Gasket67F-41114-A2-00
Required: 1
.GASKET, EXHAUST OUTER COVER
Supersedes: 6D8-41114-A0-00
In stock
5+ in stock
$15.19
You save $3.80
-20%
20
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 18
BOLT, WITH WASHER
In stock
5+ in stock
$3.60
You save $0.90
-20%
21
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 2 remaining
$11.59
You save $2.90
-20%
22
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$6.39
You save $1.60
-20%
$3.60
You save $0.90
-20%
24
Yamaha Motors
Cover67F-1246A-A0-9S
Required: 1
COVER 1
Supersedes: 67F-1246A-01-1S
No longer availableSearch Nationwide Inventory
$20.40
You save $5.10
-20%
In stock
5+ in stock
$5.59
You save $1.40
-20%
26
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 3
BOLT, WITH WASHER
In stock
5+ in stock
$2.64
You save $0.66
-20%
In stock
5+ in stock
$21.56
You save $5.39
-20%
28
Yamaha Motors
ANODE COVER ASSY69J-11301-11-00
Required: 1
COVER, ANODE
Supersedes: 69J-11327-00-94
In stock
5+ in stock
$14.79
You save $3.70
-15%
29
Yamaha Motors
BOLT97095-06020-00
Required: 1
BOLT
Supersedes: 97075-06020-00
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-20%
30
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
31
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 1
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.12
You save $0.78
-20%
32
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 4 remaining
$4.39
You save $1.10
-20%
$24.79
You save $6.20
-20%
34
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.24
You save $0.56
-15%
$5.94
You save $1.05
-20%
36
Yamaha Motors
Cylinder Gasket68V-11351-00-00
Required: 1
.GASKET, CYLINDER
In stock
5+ in stock
$66.39
You save $16.60
-15%
37
Yamaha Motors
Stopper67F-42761-01-00
Required: 2
STOPPER
Supersedes: 67F-42761-00-94
$27.19
You save $4.80
-15%
No longer availableSearch Nationwide Inventory
$2.85
You save $0.50
-20%
39
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-50%
40
Yamaha Motors
DAMPER UPPER MOUNT RUBBER68F-44533-02-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
Supersedes: 68F-44533-00-00
In stock
Only 1 remaining
$3.75
You save $3.75
-20%
41
Yamaha Motors
ELEMENT ASSY, OIL CLEANER5GH-13440-72-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 5GH-13440-00-00
In stock
5+ in stock
$13.56
You save $3.39
-50%
42
Yamaha Motors
Union Bolt90401-20007-00
Required: 1
BOLT, UNION
Supersedes: 90401-20145-00
In stock
Only 1 remaining
$10.49
You save $10.49
-15%
$2.03
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
