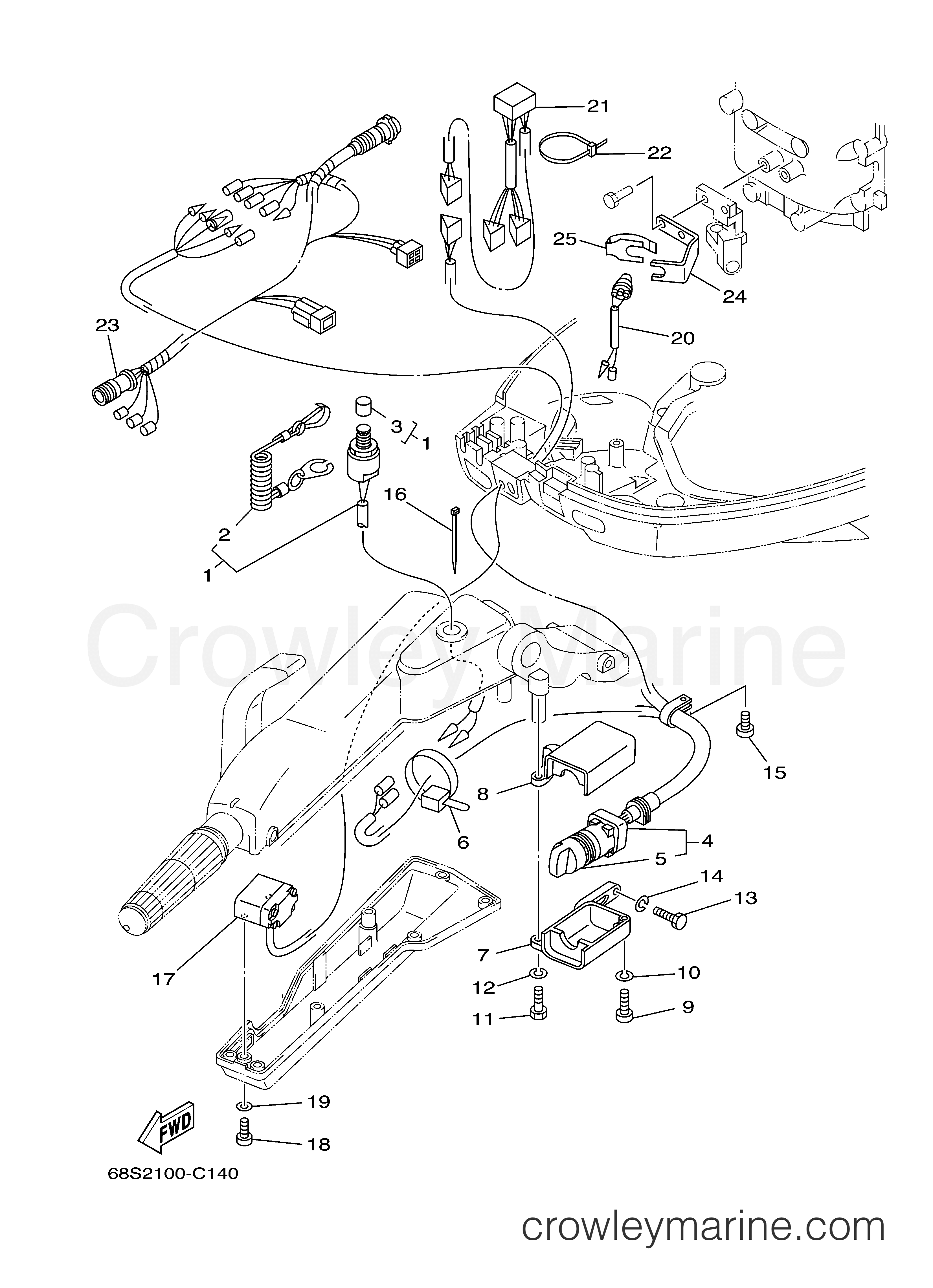

2004 Outboard 50hp - T50TLRC ELECTRICAL 3 diagram
-15%
1
Yamaha Motors
Engine Stop Switch Assembly69W-82575-00-00
Required: 1
ENGINE STOP SWITCH ASSY
$73.09
You save $12.90
-20%
2
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
.LANYARD, STOP SWITCH
In stock
5+ in stock
$6.79
You save $1.70
-20%
In stock
5+ in stock
$7.59
You save $1.90
-15%
4
Yamaha Motors
Main Switch Assembly TE, TP69W-82510-12-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 69W-82510-10-00
No longer availableSearch Nationwide Inventory
$170.94
You save $30.16
-50%
5
Yamaha Motors
Key Cap676-82577-01-00
Required: 1
.CAP, KEY
Supersedes: 676-82577-00-00
In stock
Only 1 remaining
$3.50
You save $3.50
-15%
In stock
Only 4 remaining
$7.22
You save $1.27
-15%
7
Yamaha Motors
Main Switch Cover63D-8252F-01-8D
Required: 1
COVER, MAIN SWITCH 2
Supersedes: 63D-8252F-01-4D
$19.54
You save $3.45
-15%
8
Yamaha Motors
COVER,MAIN SWITCH63D-8252E-01-8D
Required: 1
COVER, MAIN SWITCH
Supersedes: 63D-8252E-01-4D
$19.54
You save $3.45
-20%
9
Yamaha Motors
Pan Head Screw97885-06025-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$4.39
You save $1.10
-20%
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-15%
No longer availableSearch Nationwide Inventory
$2.85
You save $0.50
-20%
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
13
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
15
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
$2.76
You save $0.69
-20%
16
Yamaha Motors
Clamp90465-13M39-00
Required: 1
CLAMP
Supersedes: 90465-13M36-00
In stock
Only 3 remaining
$4.79
You save $1.20
-15%
17
Yamaha Motors
Trim & Tilt Switch Assembly67G-82563-00-00
Required: 1
TRIM & TILT SWITCH ASSY
$147.89
You save $26.10
-20%
18
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06016-00
In stock
5+ in stock
$2.76
You save $0.69
-20%
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-20%
20
Yamaha Motors
Obsolete Yamaha Part688-82540-12-00
Required: 1
NEUTRAL SWITCH ASSEMBLY
Supersedes: 6F5-82540-00-00
In stock
5+ in stock
$39.19
You save $9.80
-15%
No longer availableSearch Nationwide Inventory
$87.85
You save $15.50
-15%
$4.25
You save $0.75
-15%
23
Yamaha Motors
Wire Harness Extension6H2-82586-02-00
Required: 1
EXTENSION, WIRE HARNESS
No longer availableSearch Nationwide Inventory
$303.15
You save $53.50
-15%
24
Yamaha Motors
Obsolete Yamaha Part62Y-82554-01-00
Required: 1
STAY, NEUTRAL ASSY
Supersedes: 62Y-82554-00-00
$5.94
You save $1.05
-15%
25
Yamaha Motors
Main Switch Damper62Y-82555-10-00
Required: 1
DAMPER, MAIN SWITCH 1
No longer availableSearch Nationwide Inventory
$14.66
You save $2.59
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
