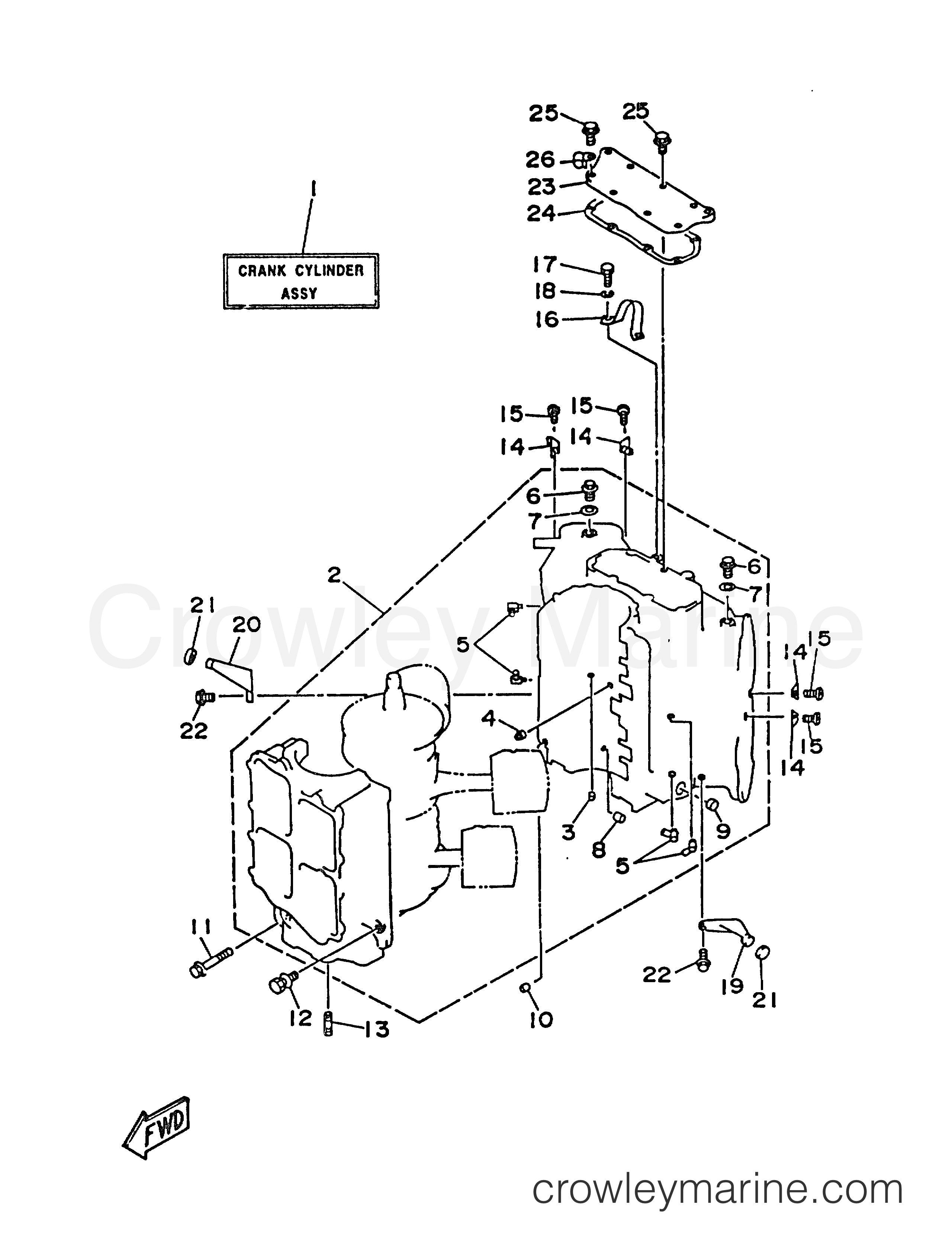

1996 Outboard 130hp - L130TXRU CYLINDER CRANKCASE 1 diagram
-15%
1
Yamaha Motors
CRANK CYLINDER ASSEMBLY (REF. #2~26 & CYLINDER - CRANK)6N6-W0090-14-4D
Required: 1
CRANK CYLINDER ASSEMBLY (REF. #2~26 & CYLINDER - CRANK)
No longer availableSearch Nationwide Inventory
$5177.01
You save $913.59
-15%
1
Yamaha Motors
Crank Cylinder Assembly6N7-W0090-20-1S
Required: 1
CRANK CYLINDER ASSEMBLY (REF. #2~26 & CYLINDER - CRANK 001)
Supersedes: 6N7-W0090-15-4D
$4912.87
You save $866.98
-15%
1
Yamaha Motors
Crank Cylinder Assembly6N7-W0090-20-1S
Required: 1
CRANK CYLINDER ASSEMBLY (REF. #2~26 & CYLINDER - CRANK 001)
Supersedes: 6N7-W0090-15-4D
$4912.87
You save $866.98
-15%
2
Yamaha Motors
6N6-15100-01-1S6N6-15100-00-1S
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6N6-15100-00-94
No longer availableSearch Nationwide Inventory
$2112.72
You save $372.83
-15%
2
Yamaha Motors
Crankcase Assembly6N7-15100-02-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6N7-15100-00-94
$3346.44
You save $590.55
-15%
3
Yamaha Motors
Check Valve624-11379-00-00
Required: 1
.VALVE, CHECK
In stock
Only 1 remaining
$11.47
You save $2.02
-15%
4
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 1
.LOCK, BEARING
$9.77
You save $1.72
-15%
5
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 4
.NIPPLE, HOSE
Supersedes: 6E5-11372-00-00
$8.92
You save $1.57
-20%
6
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.59
You save $2.90
-20%
In stock
Only 2 remaining
$2.48
You save $0.62
-15%
8
Yamaha Motors
Bimetal Formed Bushing90384-06002-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-06M07-00
$3.19
You save $0.56
-15%
9
Yamaha Motors
Bimetal Formed Bushing90384-14011-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-14M09-00
No longer availableSearch Nationwide Inventory
$5.74
You save $1.01
-50%
In stock
Only 1 remaining
$3.50
You save $3.50
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
12
Yamaha Motors
Washer with bolt90119-08M23-00
Required: 8
BOLT, W/WASHER
No longer availableSearch Nationwide Inventory
$4.14
-15%
13
Yamaha Motors
Stud Bolt90116-08M14-00
Required: 2
BOLT, STUD
Supersedes: 90116-08M45-00
$5.94
You save $1.05
-20%
In stock
5+ in stock
$4.76
You save $1.19
-20%
15
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 4
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
16
Yamaha Motors
Engine Hanger6E5-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 6E5-11119-00-00
$14.87
You save $2.62
-15%
17
Yamaha Motors
Bolt97013-08020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-08020-00
$1.53
You save $0.27
-20%
18
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$4.48
You save $1.12
-15%
19
Yamaha Motors
Stopper6E5-42761-00-1S
Required: 1
STOPPER
Supersedes: 6E5-42761-00-94
$14.87
You save $2.62
-15%
No longer availableSearch Nationwide Inventory
$9.82
You save $1.73
-50%
21
Yamaha Motors
Upper Mount Rubber Damper663-44533-00-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
In stock
Only 2 remaining
$8.25
You save $8.25
-20%
22
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97595-06520-00
$2.52
You save $0.63
-15%
23
Yamaha Motors
Cover6K7-11371-01-1S
Required: 1
COVER
Supersedes: 6K7-11371-01-9M
$29.74
You save $5.25
-20%
In stock
Only 3 remaining
$10.79
You save $2.70
-20%
25
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06520-00
$2.52
You save $0.63
-15%
$6.37
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
