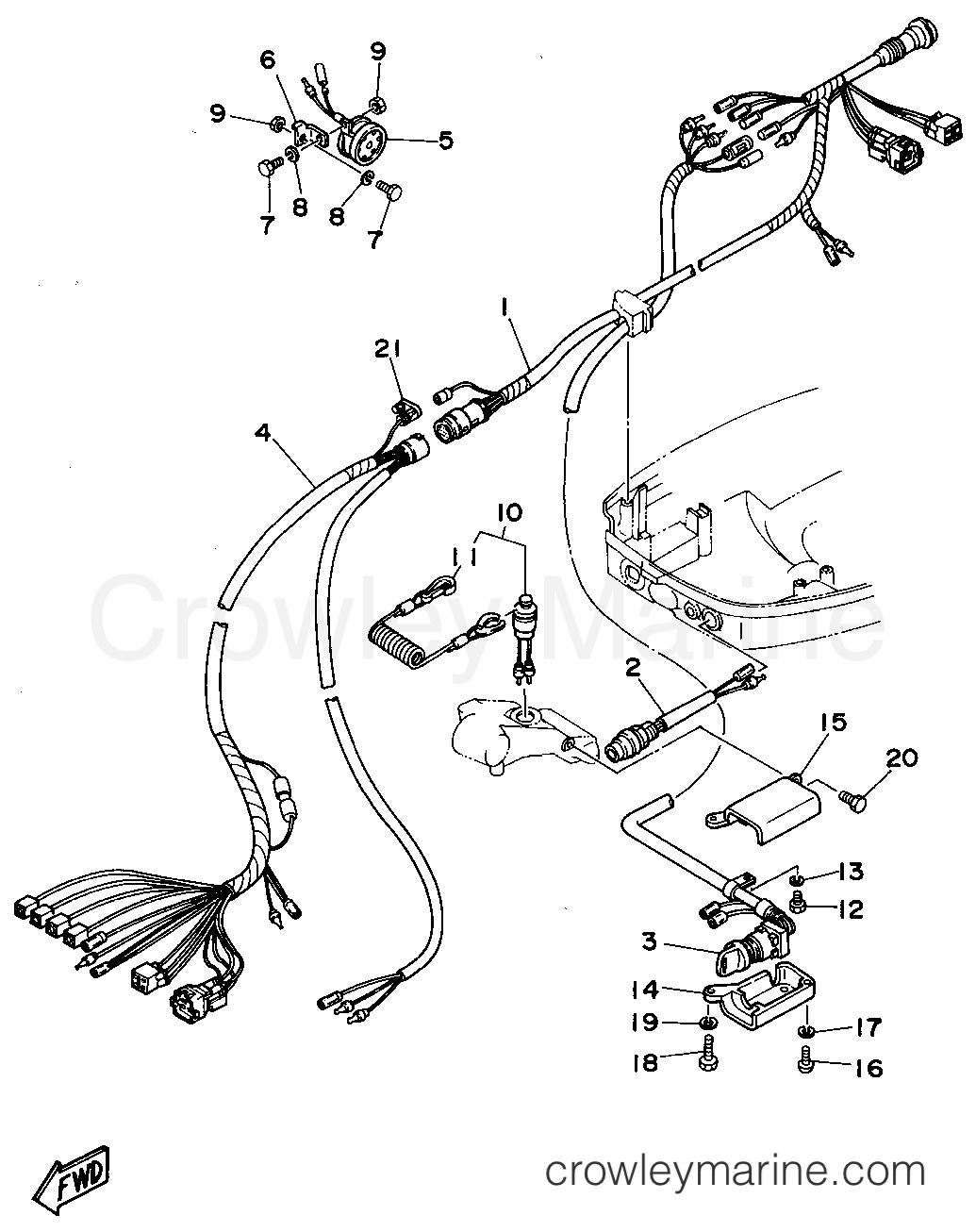

1994 Outboard 50hp - 50TLHS ELECTRICAL 3 diagram
-15%
1
Yamaha Motors
Wire Harness Extension6H5-82586-02-00
Required: 1
EXTENSION, WIRE HARNESS
No longer availableSearch Nationwide Inventory
$314.71
You save $55.54
-20%
2
Yamaha Motors
Starting Switch Assembly65W-81870-00-00
Required: 1
SWITCH, CHOKE
Supersedes: 6H5-82574-00-00
In stock
5+ in stock
$23.19
You save $5.80
-15%
3
Yamaha Motors
Main Switch Assembly TE, TP67G-82510-31-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 6H5-82510-00-00
No longer availableSearch Nationwide Inventory
$164.13
You save $28.97
-15%
No longer availableSearch Nationwide Inventory
$169.11
You save $29.84
-15%
5
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
.BUZZER
Supersedes: 688-83383-11-00
$55.24
You save $9.75
-15%
No longer availableSearch Nationwide Inventory
$10.33
You save $1.82
-50%
7
Yamaha Motors
Hexagon bolt97313-05010-00
Required: 2
BOLT, HEXAGON
In stock
Only 1 remaining
$0.85
You save $0.85
-20%
8
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
$0.28
You save $0.07
-20%
In stock
5+ in stock
$7.59
You save $1.90
-20%
10
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
.ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$31.19
You save $7.80
-20%
11
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
.LANYARD, STOP SWITCH
In stock
5+ in stock
$6.79
You save $1.70
-20%
12
Yamaha Motors
Bolt97080-06030-00
Required: 1
BOLT
Supersedes: 97095-06030-00
In stock
Only 3 remaining
$3.28
You save $0.82
-20%
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-15%
14
Yamaha Motors
Obsolete Yamaha Part697-8252F-02-EK
Required: 1
COVER, MAIN SWITCH
Supersedes: 697-8252F-00-EK
No longer availableSearch Nationwide Inventory
$29.03
You save $5.12
-15%
15
Yamaha Motors
Obsolete Yamaha Part697-8252E-02-EK
Required: 1
COVER, MAIN SWITCH
Supersedes: 697-8252E-00-EK
No longer availableSearch Nationwide Inventory
$27.84
You save $4.91
-20%
16
Yamaha Motors
Pan Head Screw97885-06025-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-06025-00
In stock
Only 4 remaining
$4.39
You save $1.10
-20%
17
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-20%
18
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
19
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.84
You save $0.71
-15%
No longer availableSearch Nationwide Inventory
$2.54
You save $0.45
-15%
21
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 1
COVER, LEAD WIRE
$2.80
You save $0.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
