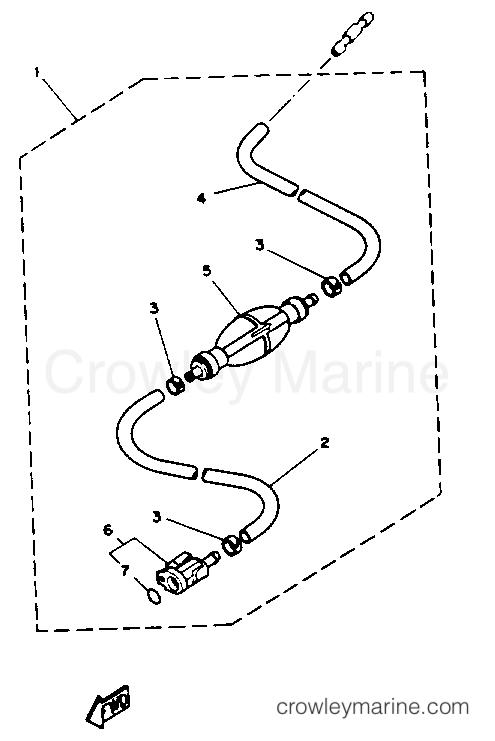

1992 Outboard 130hp - L130TXRQ FUEL SYSTEM 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-20%

Yamaha Motors

Fuel Pipe Comp6YK-24306-64-00

Required: 1

FUEL PIPE COMP. 1

Supersedes: 6Y2-24306-40-00

In stock

Only 1 remaining

~~$113.45~~

$90.95

You save $22.50

More details

-15%

Yamaha Motors

.HOSE (L2050)90445-13M01-00

Required: 1

.HOSE (L2050)

No longer availableSearch Nationwide Inventory

~~$28.65~~

$24.35

You save $4.30

-20%

.BAND 1

1 aftermarket alternative

~~$10.99~~

$8.79

You save $2.20

-15%

.HOSE (L250)

Supersedes: 90445-13M35-00

No longer availableSearch Nationwide Inventory

~~$10.15~~

$8.63

You save $1.52

More details

-20%

Yamaha Motors

Primer Pump Assembly6YK-24360-73-00

Required: 1

.PRIMER PUMP ASSY

Supersedes: 6Y2-24360-51-00

2 aftermarket alternatives

In stock

5+ in stock

~~$41.80~~

$33.44

You save $8.36

More details

-20%

Yamaha Motors

Fuel Pipe Joint Comp6Y2-24305-06-00

Required: 1

.FUEL PIPE JOINT COMP 2

Supersedes: 6Y2-24305-02-00

In stock

Only 1 remaining

~~$26.30~~

$21.04

You save $5.26

-20%

..O-RING

In stock

5+ in stock

~~$5.49~~

$4.39

You save $1.10

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
