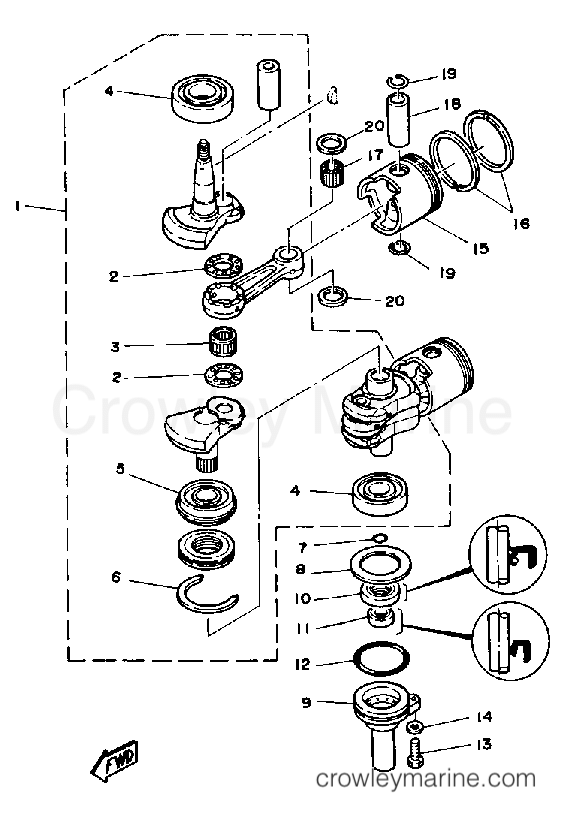

1990 Outboard 25hp - CV25ELD CRANKSHAFT PISTON diagram
-15%
1
Yamaha Motors
Crankshaft Assembly695-11400-00-00
Required: 1
CRANKSHAFT ASSEMBLY
No longer availableSearch Nationwide Inventory
$705.93
You save $124.58
-15%
2
Yamaha Motors
Washer90209-22248-00
Required: 4
.WASHER, SPECIAL SHAPE
$17.84
You save $3.15
-15%
3
Yamaha Motors
Cylindrical Bearing93310-522W0-00
Required: 2
.BEARING, CYLINDRICAL
No longer availableSearch Nationwide Inventory
$29.74
You save $5.25
-15%
$48.44
You save $8.55
-15%
$84.99
You save $15.00
-15%
6
Yamaha Motors
Circlip93440-62057-00
Required: 1
.CIRCLIP, OUTER
$4.67
You save $0.82
-20%
In stock
Only 1 remaining
$2.84
You save $0.71
-15%
8
Yamaha Motors
Plate Washer90201-50306-00
Required: 1
WASHER, PLATE
$5.94
You save $1.05
-15%
9
Yamaha Motors
Oil Seal Housing689-15396-01-CA
Required: 1
HOUSING, OIL SEAL
Supersedes: 689-15396-01-5B
$22.94
You save $4.05
-15%
In stock
Only 1 remaining
$14.87
You save $2.62
-20%
In stock
5+ in stock
$6.79
You save $1.70
-20%
In stock
5+ in stock
$5.99
You save $1.50
-15%
13
Yamaha Motors
BOLT (61K)97095-06022-00
Required: 1
BOLT
Supersedes: 97395-06022-00
No longer availableSearch Nationwide Inventory
$5.94
You save $1.05
-20%
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
15
Yamaha Motors
Piston (0.50MM O/S)664-11636-80-00
Required: 2
PISTON (0.50MM O/S)
$83.29
You save $14.70
-15%
15
Yamaha Motors
Piston (Standard)664-11631-80-96
Required: 2
PISTON (STD)
Supersedes: 664-11631-80-97
No longer availableSearch Nationwide Inventory
$63.28
You save $11.17
-15%
16
Yamaha Motors
Piston Ring Set (Standard)664-11610-80-00
Required: 2
PISTON RING SET (STD)
$38.24
You save $6.75
-15%
16
Yamaha Motors
Piston Ring Set (0.50Mm O/S)664-11610-50-00
Required: 2
PISTON RING SET (0.50MM O/S)
No longer availableSearch Nationwide Inventory
$31.11
You save $5.49
-50%
In stock
Only 4 remaining
$1.65
You save $1.65
-15%
$12.32
You save $2.17
-15%
In stock
Only 4 remaining
$8.07
You save $1.42
-50%
20
Yamaha Motors
Plate Washer90201-18522-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$3.00
You save $3.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
