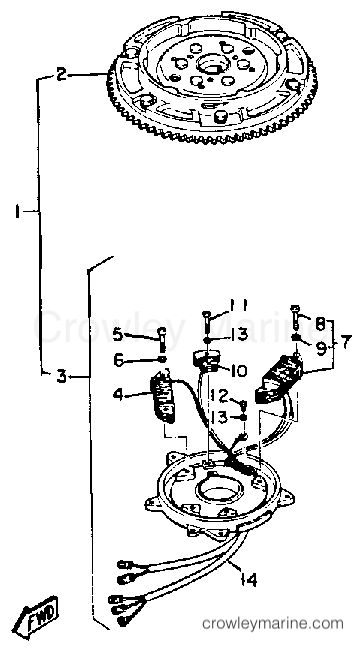

1987 Outboard 25hp - 25ESH CDI MAGNETO (25EJ) diagram
-15%
2
Yamaha Motors
Rotor Assembly689-85550-41-00
Required: 1
.ROTOR ASSEMBLY
No longer availableSearch Nationwide Inventory
$502.18
You save $88.62
-15%
3
Yamaha Motors
Base Assembly689-85560-A2-00
Required: 1
.BASE ASSEMBLY
No longer availableSearch Nationwide Inventory
$432.35
You save $76.30
-15%
4
Yamaha Motors
Ignition Coil689-81311-40-00
Required: 1
.COIL, IGNITION 1
$110.49
You save $19.50
-20%
5
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
..SCREW, PAN HEAD
Supersedes: 98503-05025-00
In stock
Only 2 remaining
$1.60
You save $0.40
-20%
6
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
..WASHER, SPRING
$0.28
You save $0.07
-15%
7
Yamaha Motors
Lighting Coil Assembly689-81303-A0-00
Required: 1
..LIGHTING COIL ASSEMBLY
No longer availableSearch Nationwide Inventory
$73.91
You save $13.04
-20%
8
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 2
..SCREW, PAN HEAD
Supersedes: 98503-05025-00
In stock
Only 2 remaining
$1.60
You save $0.40
-20%
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
..WASHER, SPRING
$0.28
You save $0.07
-15%
10
Yamaha Motors
Pulser Coil689-85580-40-00
Required: 1
..COIL, PULSER
No longer availableSearch Nationwide Inventory
$108.93
You save $19.22
-15%
11
Yamaha Motors
Pan Head Screw98517-04025-00
Required: 1
..SCREW, PAN HEAD
Supersedes: 98511-04025-00
$2.80
You save $0.50
-15%
12
Yamaha Motors
98511040060098501-04006-00
Required: 1
..SCREW, PAN HEAD (98502-04006)
Supersedes: 98511-04006-00
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-50%
13
Yamaha Motors
Plate Washer92990-04600-00
Required: 3
..WASHER
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-15%
14
Yamaha Motors
Lead Wire Assembly689-81315-40-00
Required: 1
.LEAD WIRE ASSEMBLY
No longer availableSearch Nationwide Inventory
$28.56
You save $5.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
