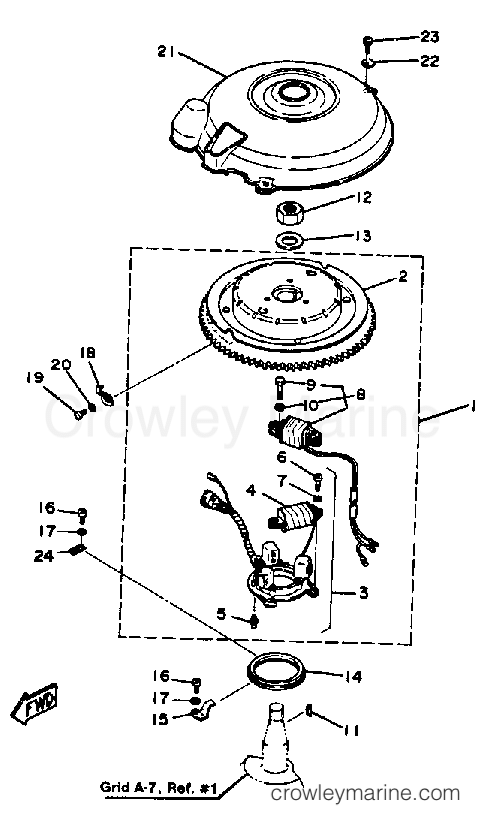

1984 Outboard 70hp - 70ETLN CDI MAGNETO diagram
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
2
Yamaha Motors
Rotor Assembly6K5-85550-A1-00
Required: 1
.ROTOR ASSY
Supersedes: 6K5-85550-A0-00
$1064.19
You save $187.80
-15%
3
Yamaha Motors
Stator Assembly6H3-85510-A1-00
Required: 1
.STATOR ASSEMBLY
Supersedes: 6H3-85510-A0-00
$453.95
You save $80.04
-15%
4
Yamaha Motors
Charge Coil6H3-85520-00-00
Required: 1
..COIL, CHARGE
$147.04
You save $25.95
-15%
5
Yamaha Motors
Ball Joint663-85518-00-00
Required: 1
..JOINT, BALL
$9.34
You save $1.65
-20%
6
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 2
..SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.76
You save $0.94
-20%
7
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
..WASHER, SPRING
$0.28
You save $0.07
-15%
8
Yamaha Motors
Lighting Coil Assembly6H3-81303-A0-00
Required: 1
.LIGHTING COIL ASSY
$152.99
You save $27.00
-20%
9
Yamaha Motors
Bolt97080-06030-00
Required: 2
..BOLT
Supersedes: 97313-06030-00
In stock
Only 3 remaining
$3.28
You save $0.82
-20%
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
..WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-20%
11
Yamaha Motors
Woodruff Key90280-05049-00
Required: 1
KEY, WOODRUFF
In stock
Only 1 remaining
$7.59
You save $1.90
-20%
$9.19
You save $2.30
-20%
13
Yamaha Motors
Plate Washer90201-21M18-00
Required: 1
WASHER, PLATE
$5.99
You save $1.50
-15%
14
Yamaha Motors
Magneto Base Retainer6H3-41611-00-00
Required: 1
RETAINER, MAGNETO BASE
No longer availableSearch Nationwide Inventory
$11.98
You save $2.12
-15%
15
Yamaha Motors
Magneto Base Retainer6H3-41612-00-00
Required: 2
RETAINER, MAGNETO BASE
$6.79
You save $1.20
-20%
16
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98580-06012-00
$2.76
You save $0.69
-20%
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
$21.24
You save $3.75
-15%
19
Yamaha Motors
92580-06010-0097803-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-06010-00
In stock
Only 2 remaining
$1.32
You save $0.23
-20%
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
21
Yamaha Motors
Flywheel Cover6H3-81337-01-00
Required: 1
COVER, FLYWHEEL
$27.19
You save $4.80
-15%
No longer availableSearch Nationwide Inventory
$7.73
You save $1.37
-15%
23
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98503-06014-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
24
Yamaha Motors
Magneto Base Retainer6H3-41612-10-00
Required: 1
RETAINER, MAGNETO BASE
$13.59
You save $2.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
