All diagrams for this model

2016 Maxi-Scooter MWS150-A - MWS150-A (BB82) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

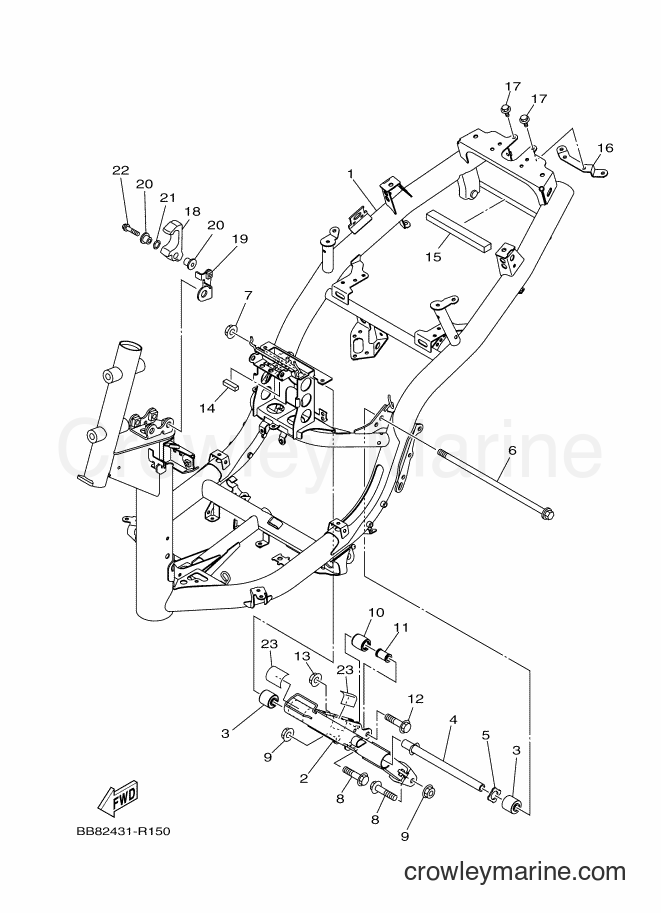

Yamaha Motors MWS150-A (BB82) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.BB8-F1110-00
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.
2
Yamaha Motors
ENGINE BRACKET COMP.BB8-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
BUSH 1
3
Yamaha Motors
BUSH 15VV-F2123-00
Required: 2
BUSH 1
Price unavailable
SPACER
4
Yamaha Motors
SPACERBB8-F1459-00
Required: 1
SPACER
Price unavailable
DAMPER
5
Yamaha Motors
DAMPER2DP-F113B-00
Required: 1
DAMPER
Price unavailable
SHAFT, PIVOT
6
Yamaha Motors
SHAFT, PIVOT2DP-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
-15%
Self Locking Nut
7
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
-15%
Flange Bolt
8
Yamaha Motors
Flange Bolt90105-10283-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
-15%
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
STOPPER, MAIN STAND
10
Yamaha Motors
STOPPER, MAIN STANDBB8-F7114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
COLLAR
11
Yamaha Motors
COLLARBB8-F1748-00
Required: 1
COLLAR
Price unavailable
-15%
Flange Bolt
12
Yamaha Motors
Flange Bolt90105-10283-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
-15%
Self Locking Nut
13
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
DAMPER, PLATE
14
Yamaha Motors
DAMPER, PLATE90520-02837
Required: 1
DAMPER, PLATE
Price unavailable
DAMPER, PLATE
15
Yamaha Motors
DAMPER, PLATE90520-08803
Required: 1
DAMPER, PLATE
Price unavailable
DAMPER, PLATE
16
Yamaha Motors
DAMPER, PLATE90520-20801
Required: 1
DAMPER, PLATE
Price unavailable
BRACKET, TAILLIGHT
17
Yamaha Motors
BRACKET, TAILLIGHTBB8-F117E-00
Required: 1
BRACKET, TAILLIGHT
Price unavailable
-15%
95817-06010-00
18
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
HOOK 1
19
Yamaha Motors
HOOK 12CM-F8257-00
Required: 1
HOOK 1
Price unavailable
STAY 1
20
Yamaha Motors
STAY 12CM-F116A-00
Required: 1
STAY 1
Price unavailable
COLLAR
21
Yamaha Motors
COLLAR90387-068G3
Required: 2
COLLAR
Price unavailable
-15%
Wave Washer
22
Yamaha Motors
Wave Washer90206-10036-00
Required: 1
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
Flange Bolt
23
Yamaha Motors
Flange Bolt95812-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
