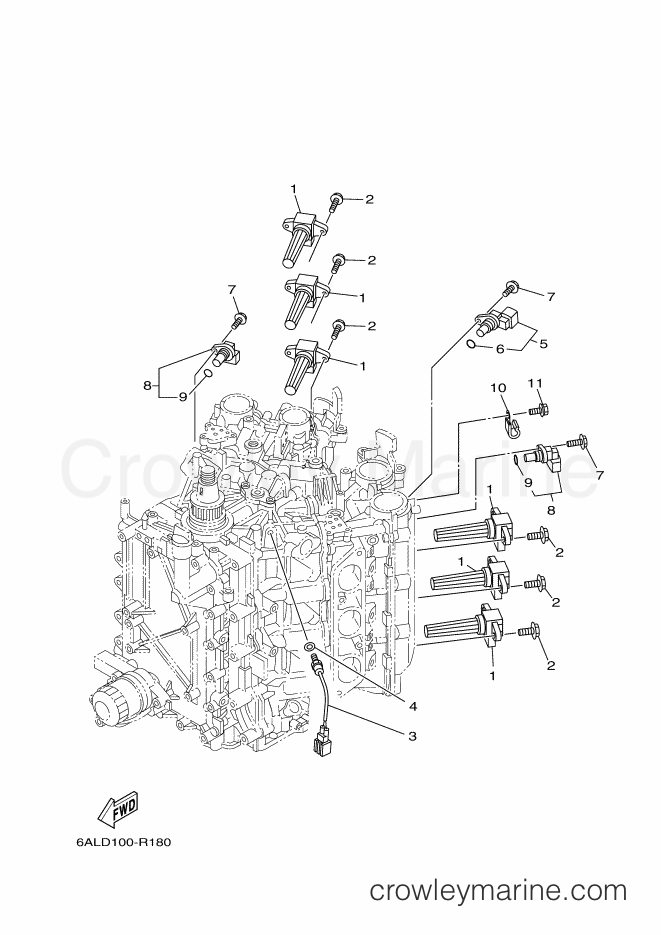

2017 International 250hp - F250XA-2017 (6P2E) [220] ELECTRICAL 1 diagram
![Yamaha Motors F250XA-2017 (6P2E) [220] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/6Bg9Ayks.png)
-15%
1
Yamaha Motors
Ignition Coil Assembly6P2-82310-03-00
Required: 6
IGNITION COIL ASSY
Supersedes: 6P2-82310-01-00
$170.95
You save $30.04
-20%
2
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 12
BOLT, WITH WASHER
Supersedes: 97595-06520-00
$2.52
You save $0.63
-20%
3
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
5+ in stock
$117.95
You save $29.04
-20%
4
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.48
You save $0.62
-15%
5
Yamaha Motors
Cam Position Sensor6P2-85896-00-00
Required: 1
SENSOR, CAM POSITION
$177.64
You save $31.35
-15%
$8.92
You save $1.57
-20%
7
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97595-06520-00
$2.52
You save $0.63
-15%
8
Yamaha Motors
Cam Position Sensor6P2-85897-00-00
Required: 2
SENSOR, CAM POSITION 2
$177.64
You save $31.35
-15%
$8.92
You save $1.57
-15%
$6.79
You save $1.20
-50%
11
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.05
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
