All diagrams for this model

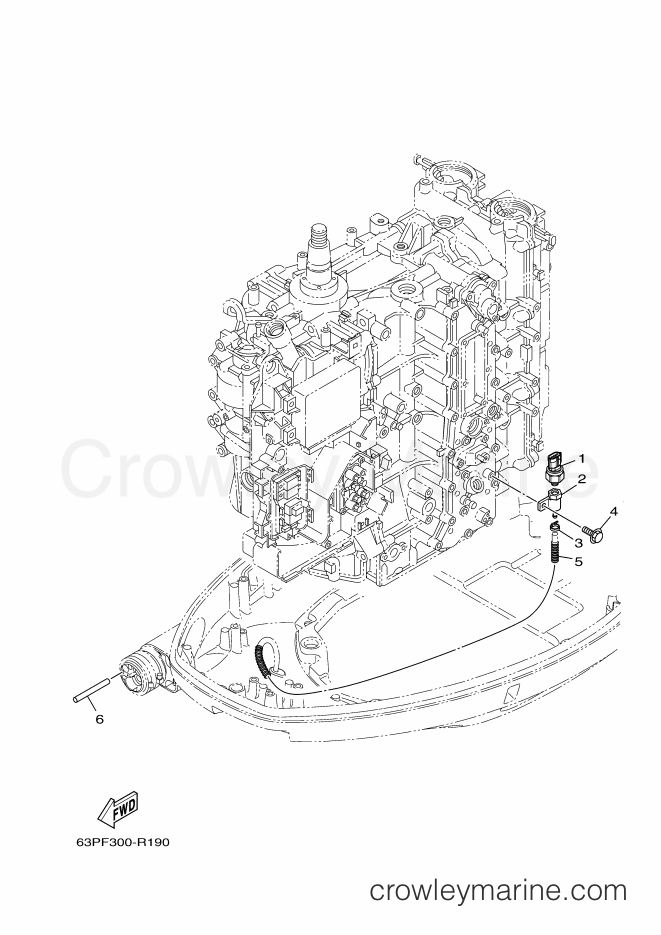

2017 International 150hp - F150DETX (63PF) [060] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F150DETX (63PF) [060] - ELECTRICAL 4
Change View:
-15%
SENSOR, WATER PRES
1
Yamaha Motors
SENSOR, WATER PRES6AW-8366B-10-00
Required: 1
SENSOR, WATER PRESSURE
Supersedes: 6AW-8366B-01-00
Cross Ship
Leaves in 2-5 days
$230.50
$195.95
You save $34.55
More details
-15%
Input Adaptor
2
Yamaha Motors
Input Adaptor60V-8366D-00-00
Required: 1
ADAPTOR, INPUT
Cross Ship
Leaves in 2-5 days
$74.99
$63.74
You save $11.25
More details
-15%
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.30
$3.65
You save $0.65
More details
-15%
Cover Hose(L: 700Mm)
5
Yamaha Motors
Cover Hose(L: 700Mm)90447-07013-00
Required: 1
HOSE, COVER (L: 700MM)
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
-15%
Seal
6
Yamaha Motors
Seal60V-42629-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
