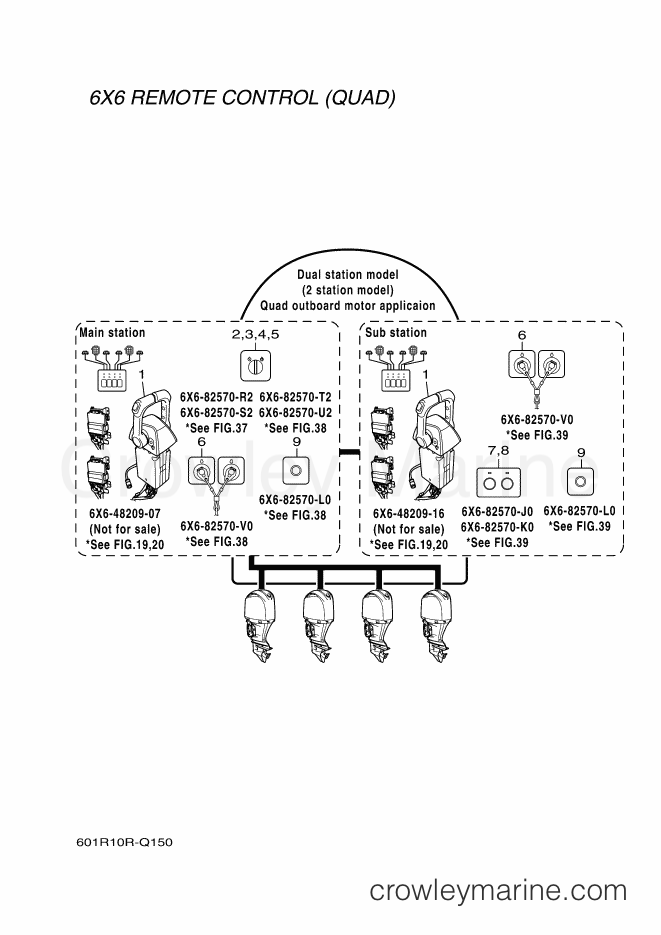

2016 International RIGGING - RIGGING REMOCON-2016 (601R) [010] LAYOUT CHART 4 (QUAD) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RIGGING REMOCON-2016 (601R) [010] - LAYOUT CHART 4 (QUAD)
Change View:
REMOTE CONTROL ASSY (QUAD)
1
Yamaha Motors
REMOTE CONTROL ASSY (QUAD)6X6-48209-16
Required: 1
REMOTE CONTROL ASSY (QUAD)
Price unavailable
REMOTE CONTROL ASSY (QUAD)
1
Yamaha Motors
REMOTE CONTROL ASSY (QUAD)6X6-48209-07
Required: 1
REMOTE CONTROL ASSY (QUAD)
Price unavailable
-15%
Panel Switch Assembly
2
Yamaha Motors
Panel Switch Assembly6X6-82570-R2-00
Required: 1
PANEL SWITCH ASSY (FOR PORT)
Cross Ship
Leaves in 2-5 days
$370.50
$314.93
You save $55.57
More details
-15%
Panel Switch Assembly
3
Yamaha Motors
Panel Switch Assembly6X6-82570-S2-00
Required: 1
PANEL SWITCH ASSY (FOR C-PORT)
Cross Ship
Leaves in 2-5 days
$337.50
$286.88
You save $50.63
More details
-15%
Panel Switch Assembly
4
Yamaha Motors
Panel Switch Assembly6X6-82570-T2-00
Required: 1
PANEL SWITCH ASSY (FOR C-STBD)
Cross Ship
Leaves in 2-5 days
$364.00
$309.40
You save $54.60
More details
-15%
Panel Switch Assembly
5
Yamaha Motors
Panel Switch Assembly6X6-82570-U2-00
Required: 1
PANEL SWITCH ASSY (FOR STBD)
Cross Ship
Leaves in 2-5 days
$337.50
$286.88
You save $50.63
More details
-15%
Panel Switch Aseembly
6
Yamaha Motors
Panel Switch Aseembly6X6-82570-V0-00
Required: 2
PANEL SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$279.50
$237.57
You save $41.93
More details
-15%
Panel Switch Assembly
9
Yamaha Motors
Panel Switch Assembly6X6-82570-L0-00
Required: 2
PANEL SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$214.00
$181.90
You save $32.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
