2016 International 25hp - F25DEL (6BP9) [410] ELECTRICAL 6 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

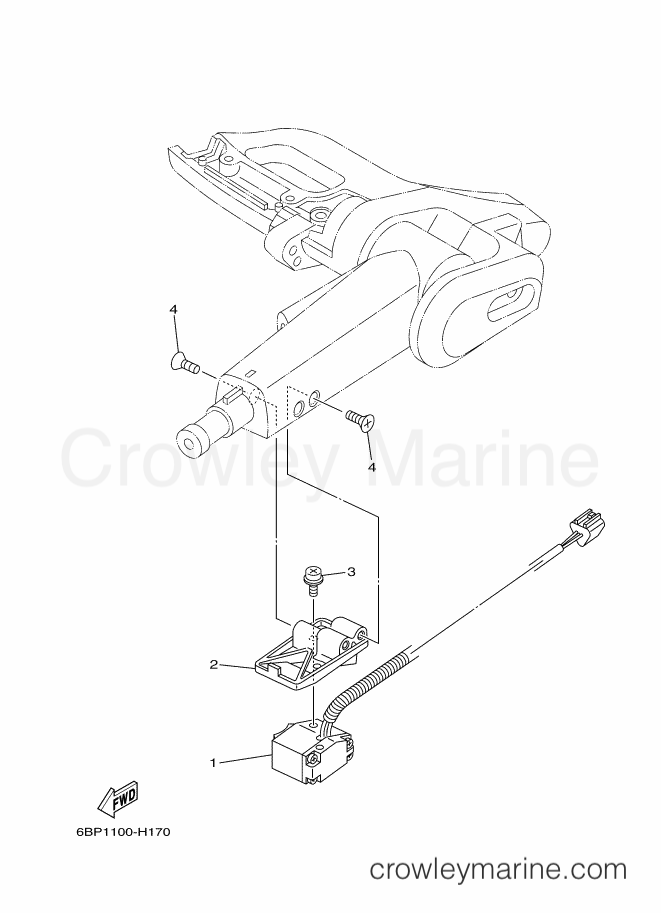

Yamaha Motors F25DEL (6BP9) [410] - ELECTRICAL 6

Change View:

Yamaha Motors

TRIM & TILT SWITCH ASSY6BL-82563-00

Required: 1

TRIM & TILT SWITCH ASSY

Price unavailable

-50%

Yamaha Motors

Stay69A-42176-00-00

Required: 1

STAY 2

In stock

Only 1 remaining

~~$27.99~~

$14.00

You save $14.00

More details

-20%

Yamaha Motors

Screw With Washer97985-06220-00

Required: 2

SCREW, WITH WASHER

In stock

Only 3 remaining

~~$3.49~~

$2.79

You save $0.70

More details

-20%

Yamaha Motors

Countersunk Screw90151-06040-00

Required: 3

SCREW, COUNTERSUNK

In stock

Only 2 remaining

~~$3.85~~

$3.08

You save $0.77

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
