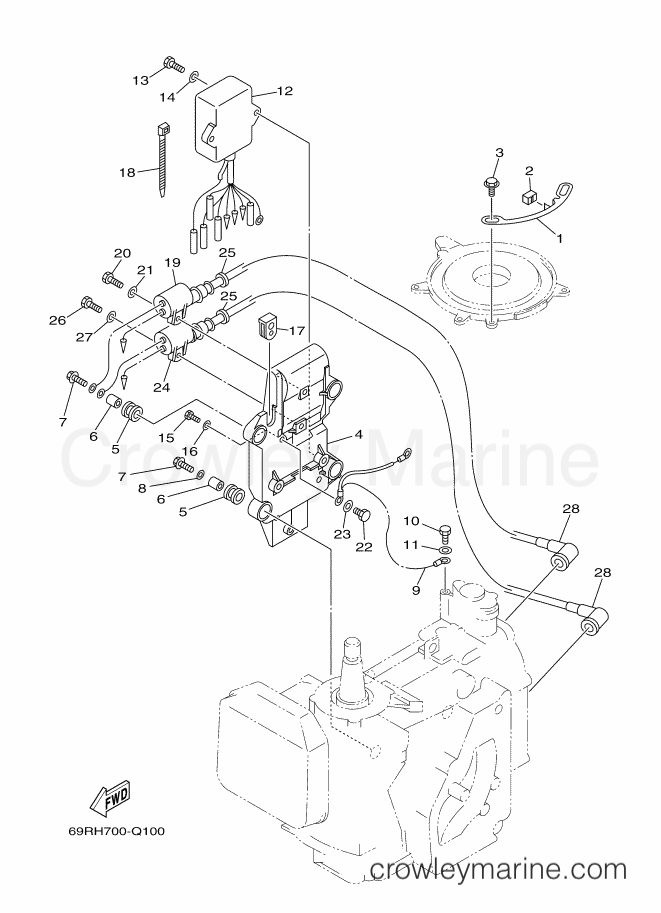

2016 International 25hp - 25BMH (69RH) [020] ELECTRICAL 1 diagram
![Yamaha Motors 25BMH (69RH) [020] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/AwQbZ9Kv.png)
-15%
1
Yamaha Motors
Magneto Base Stopper61N-41615-00-00
Required: 1
STOPPER, MAGNETO BASE
$14.87
You save $2.62
2
Yamaha Motors
CAP61N-44194-01
Required: 1
CAP
Price unavailable
2
Yamaha Motors
CAP61T-44194-01
Required: 1
CAP
Price unavailable
-50%
3
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06510-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06510-00
In stock
Only 4 remaining
$0.42
You save $0.42
4
Yamaha Motors
BRACKET61N-85542-00
Required: 1
BRACKET
Price unavailable
-15%
5
Yamaha Motors
DAMPER, IGNITION COIL61N-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 61N-82317-00-00
$0.98
You save $0.17
-20%
In stock
5+ in stock
$3.92
You save $0.98
-20%
7
Yamaha Motors
Bolt with Washer90119-06294-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M95-00
In stock
5+ in stock
$1.64
You save $0.41
-15%
8
Yamaha Motors
Plate Washer90201-06M30-00
Required: 2
WASHER, PLATE
$2.25
You save $0.40
-15%
9
Yamaha Motors
Earth Lead Wire61N-82519-01-00
Required: 1
WIRE, EARTH LEAD
$17.84
You save $3.15
-15%
10
Yamaha Motors
Bolt97080-06012-00
Required: 1
BOLT
Supersedes: 97090-06012-00
In stock
Only 4 remaining
$2.54
You save $0.45
-20%
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
12
Yamaha Motors
C.D.I. UNIT KIT99999-04544-00
Required: 1
C.D.I. UNIT ASSY
Supersedes: 61N-85540-13-00
$345.94
You save $61.05
-20%
13
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
15
Yamaha Motors
Bolt97080-06012-00
Required: 1
BOLT
Supersedes: 97090-06012-00
In stock
Only 4 remaining
$2.54
You save $0.45
-20%
16
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
$9.77
You save $1.72
-15%
In stock
Only 4 remaining
$7.22
You save $1.27
-20%
19
Yamaha Motors
Ignition Coil Assembly61N-85570-00-00
Required: 1
IGNITION COIL ASSY
$79.99
You save $20.00
-20%
19
Yamaha Motors
Ignition Coil Assembly6H5-85570-00-00
Required: 1
IGNITION COIL ASSY
In stock
5+ in stock
$113.95
You save $28.04
-20%
20
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
22
Yamaha Motors
Bolt97080-06012-00
Required: 1
BOLT
Supersedes: 97090-06012-00
In stock
Only 4 remaining
$2.54
You save $0.45
-20%
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-20%
24
Yamaha Motors
Ignition Coil Assembly61N-85570-00-00
Required: 1
IGNITION COIL ASSY
$79.99
You save $20.00
-15%
24
Yamaha Motors
Ignition Coil Assembly61N-85570-10-00
Required: 1
IGNITION COIL ASSY
$84.99
You save $15.00
-15%
$4.67
You save $0.82
-20%
26
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.68
You save $0.92
-20%
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
$29.32
You save $5.17
-20%
In stock
5+ in stock
$12.79
You save $3.20
-20%
In stock
Only 2 remaining
$29.59
You save $7.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
