All diagrams for this model

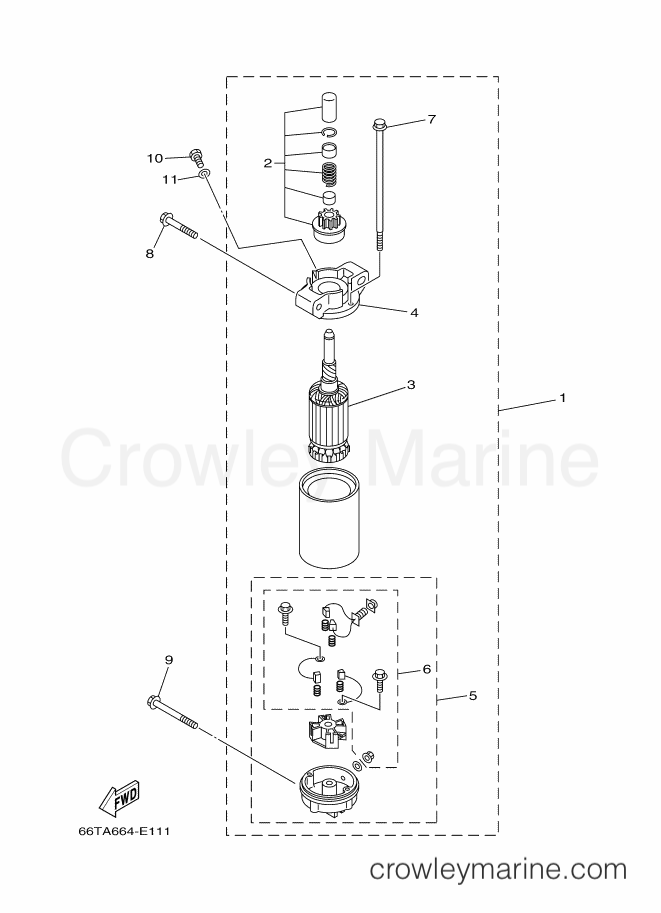

2012 International 40hp - E40XMHX (66TR) [460] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E40XMHX (66TR) [460] - STARTING MOTOR
Change View:
STARTING MOTOR ASSY
1
Yamaha Motors
STARTING MOTOR ASSY66T-81800-03
Required: 1
STARTING MOTOR ASSY
Price unavailable
. PINION STOPPER SET
2
Yamaha Motors
. PINION STOPPER SET66T-81857-10
Required: 1
. PINION STOPPER SET
Price unavailable
. ARMATURE ASSY
3
Yamaha Motors
. ARMATURE ASSY66T-81850-01
Required: 1
. ARMATURE ASSY
Price unavailable
. FRONT BRACKET ASSY
4
Yamaha Motors
. FRONT BRACKET ASSY66T-81830-00
Required: 1
. FRONT BRACKET ASSY
Price unavailable
. REAR BRACKET ASSY
5
Yamaha Motors
. REAR BRACKET ASSY66T-81820-00
Required: 1
. REAR BRACKET ASSY
Price unavailable
. . BRUSH HOLDER ASSY
6
Yamaha Motors
. . BRUSH HOLDER ASSY66T-81840-00
Required: 1
. . BRUSH HOLDER ASSY
Price unavailable
. BOLT
7
Yamaha Motors
. BOLT66T-81826-00
Required: 2
. BOLT
Price unavailable
BOLT, WITH WASHER
9
Yamaha Motors
BOLT, WITH WASHER90119-08M52
Required: 1
BOLT, WITH WASHER
Price unavailable
-15%
BOLT, HEXAGON DEEP R
10
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-08016-00
Required: 1
BOLT
Supersedes: 97095-08016-00
2 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
