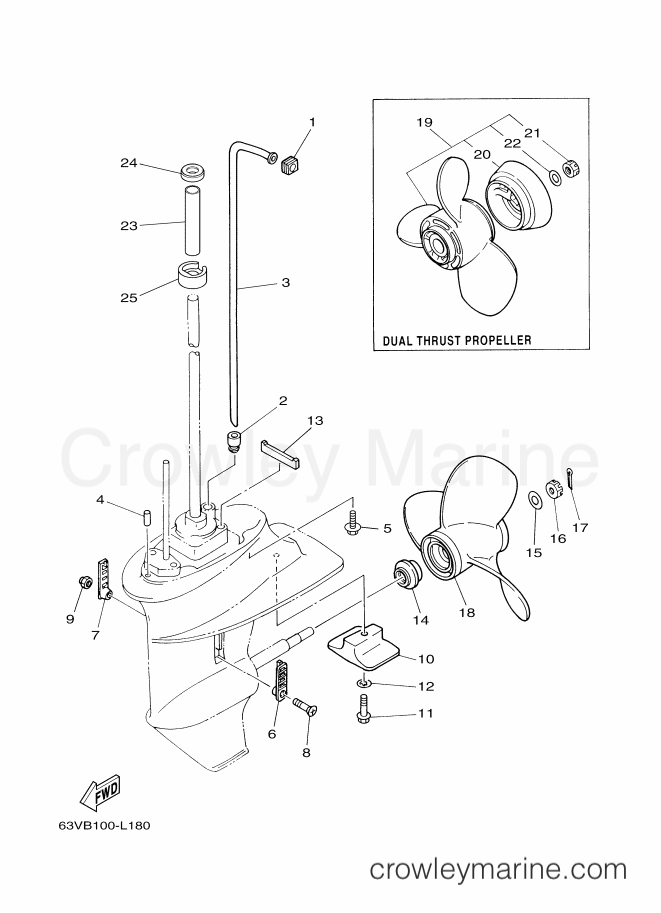

2012 International 15hp - 15SMH-2012 (63WB) [390] LOWER CASING & DRIVE 2 diagram
![Yamaha Motors 15SMH-2012 (63WB) [390] - LOWER CASING & DRIVE 2](https://cdn.crowleymarine.com/yamaha/qvXdQzg0.png)
-20%
1
Yamaha Motors
Water Seal Damper 163V-44365-11-00
Required: 1
DAMPER, WATER SEAL 1
Supersedes: 63V-44365-10-00
In stock
5+ in stock
$3.92
You save $0.98
-20%
2
Yamaha Motors
RUBBER, WATER SEAL 463V-44368-01-00
Required: 1
RUBBER, WATER SEAL 4
Supersedes: 63V-44368-00-00
In stock
Only 5 remaining
$2.24
You save $0.56
-20%
3
Yamaha Motors
Water Tube63V-44361-01-00
Required: 1
TUBE, WATER 1
In stock
Only 2 remaining
$24.79
You save $6.20
-15%
3
Yamaha Motors
Water Tube63V-44361-11-00
Required: 1
TUBE, WATER 1
$27.19
You save $4.80
-20%
4
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
5+ in stock
$4.39
You save $1.10
-20%
5
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08530-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-08530-00
$1.56
You save $0.39
-20%
6
Yamaha Motors
Water Inlet Cover6G1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 2 remaining
$6.79
You save $1.70
-20%
7
Yamaha Motors
Water Inlet Cover 263V-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
Only 1 remaining
$7.99
You save $2.00
-20%
8
Yamaha Motors
Countersunk Screw90152-05011-00
Required: 1
SCREW, COUNTERSUNK
In stock
Only 3 remaining
$2.76
You save $0.69
-20%
9
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.84
You save $0.46
-20%
In stock
5+ in stock
$14.36
You save $3.59
-20%
11
Yamaha Motors
DEEP FLANGE BOLT95D95-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06030-00
In stock
Only 5 remaining
$4.39
You save $1.10
-20%
12
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
$2.24
You save $0.56
-20%
In stock
5+ in stock
$5.59
You save $1.40
-20%
PartX Recommends:Yamaha Motors 6E7-45987-01-00
In stock
Only 1 remaining
$19.19
You save $4.80
-20%
15
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 4 remaining
$5.59
You save $1.40
-20%
In stock
Only 2 remaining
$5.99
You save $1.50
-20%
17
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN. COTTER
Supersedes: 91490-30020-00
In stock
Only 1 remaining
$3.19
You save $0.80
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum683-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
No longer availableSearch Nationwide Inventory
$153.00
You save $27.00
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9.75RH Aluminum683-45952-00-00
Required: 1
PROPELLER (3X9-1/4"X9-3/4"-J)
No longer availableSearch Nationwide Inventory
$153.00
You save $27.00
-50%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10.5RH Aluminum683-45943-00-00
Required: 1
PROPELLER (3X9-1/4"X10-1/2"-J)
In stock
Only 1 remaining
$79.50
You save $79.50
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum63V-45945-10-00
Required: 1
PROPELLER (3X9-1/4"X9"-J)
Supersedes: 683-45945-00-00
In stock
Only 2 remaining
$152.95
You save $27.05
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.5x6.5RH Aluminum683-45949-00-00
Required: 1
PROPELLER (3X9-1/2"X6-1/2"-J)
$135.15
You save $23.85
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x12RH Aluminum683-45941-00-00
Required: 1
PROPELLER (3X9-1/4"X12"-J)
$135.15
You save $23.85
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10RH Aluminum63V-45952-10-00
Required: 1
PROPELLER (3X9-1/4"X10"-J1)
$153.00
You save $27.00
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum63V-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
$153.00
You save $27.00
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum63V-45945-10-00
Required: 1
PROPELLER (3X9-1/4"X9"-J1)
In stock
Only 2 remaining
$152.95
You save $27.05
-15%
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x11RH Aluminum63V-45943-10-00
Required: 1
PROPELLER (3X9-1/4"X11"-J1)
$153.00
You save $27.00
-50%
19
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x8RH Aluminum683-W4591-02-00
Required: 1
PROPELLER (3X9-3/4"X8"-J)
In stock
Only 1 remaining
$84.50
You save $84.50
-15%
19
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x6.5RH Aluminum683-W4592-02-00
Required: 1
PROPELLER (3X9-3/4"X6-1/2"-J)
$143.65
You save $25.35
-15%
20
Yamaha Motors
Deflector Ring6E7-45986-00-00
Required: 1
. RING, DEFLECTOR
$13.39
You save $2.36
-20%
21
Yamaha Motors
Castle Nut90171-10M07-00
Required: 1
. NUT, CASTLE
$10.39
You save $2.60
-20%
22
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
. WASHER, PLATE
In stock
Only 1 remaining
$3.76
You save $0.94
23
Yamaha Motors
TUBE, WATER 263V-44362-00
Required: 1
TUBE, WATER 2
Price unavailable
24
Yamaha Motors
GROMMET, WATER TUBE 163V-44375-00
Required: 1
GROMMET, WATER TUBE 1
Price unavailable
25
Yamaha Motors
GROMMET, WATER TUBE 263V-44376-00
Required: 1
GROMMET, WATER TUBE 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
