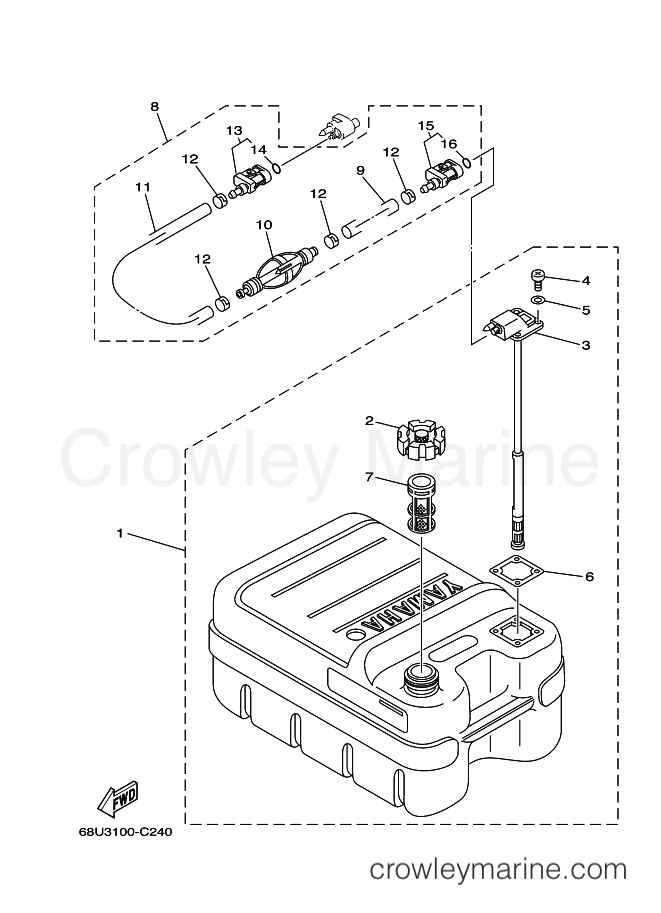

2012 International 85hp - 85AETL (688C) [190] FUEL TANK diagram
![Yamaha Motors 85AETL (688C) [190] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/ZW0w0t2v.png)
-15%
1
Yamaha Motors
Fuel Tank Assembly (24L)6YJ-24201-21-00
Required: 1
FUEL TANK ASSY (24L)
Supersedes: 6YJ-24201-00-00
$274.95
You save $49.04
-15%
$30.59
You save $5.40
-15%
3
Yamaha Motors
Fuel Meter Assembly6YJ-24260-11-00
Required: 1
. FUEL METER ASSY
Supersedes: 6YJ-24260-00-00
$191.24
You save $33.75
-50%
4
Yamaha Motors
Pan Head Screw90157-05M19-00
Required: 4
. SCREW, PAN HEAD
In stock
Only 1 remaining
$1.88
You save $1.88
-15%
In stock
5+ in stock
$2.38
You save $0.42
-20%
6
Yamaha Motors
Fuel Meter Gasket6Y1-24268-01-00
Required: 1
. GASKET, FUEL METER
Supersedes: 6Y1-24268-00-00
No longer availableSearch Nationwide Inventory
$1.68
You save $0.42
-50%
In stock
Only 1 remaining
$8.99
You save $8.99
-15%
8
Yamaha Motors
6YL-24306-63-006YL-24306-62-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 61J-24306-04-00
No longer availableSearch Nationwide Inventory
$85.55
You save $15.10
-20%
9
Yamaha Motors
.HOSE (L3000)90445-11M81-00
Required: 1
. HOSE (L2050)
Supersedes: 90445-11M06-00
In stock
Only 1 remaining
$33.59
You save $8.40
-20%
10
Yamaha Motors
Primer Pump Assembly6YL-24360-63-00
Required: 1
. PRIMER PUMP ASSY
Supersedes: 61J-24360-00-00
In stock
Only 5 remaining
$36.79
You save $9.20
-15%
11
Yamaha Motors
Hose (L800)90445-11M78-00
Required: 1
. HOSE (L850)
Supersedes: 90445-11M05-00
No longer availableSearch Nationwide Inventory
$7.57
You save $1.33
-20%
$2.24
You save $0.56
-20%
13
Yamaha Motors
Fuel Pipe Joint Comp6G1-24305-05-00
Required: 1
. FUEL PIPE JOINT COMP. 2
In stock
5+ in stock
$22.40
You save $5.60
-20%
In stock
5+ in stock
$4.39
You save $1.10
-20%
15
Yamaha Motors
Fuel Pipe Joint Comp6Y1-24305-06-00
Required: 1
. FUEL PIPE JOINT COMP. 2
In stock
Only 1 remaining
$20.08
You save $5.02
-20%
In stock
5+ in stock
$4.39
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
