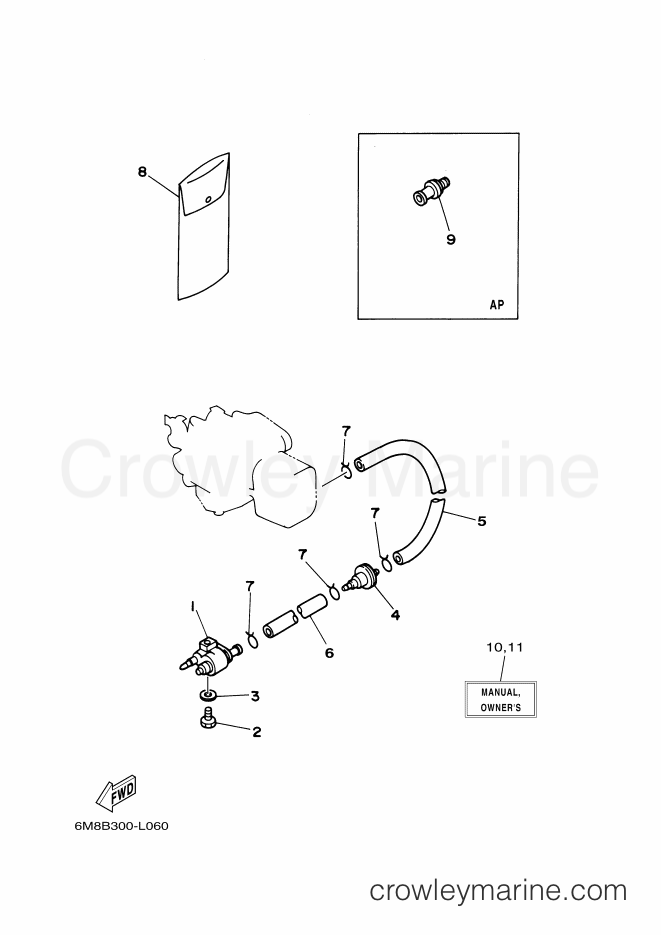

2012 International 8hp - 8CMHS (6N0C) [030] FUEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-20%

Yamaha Motors

FUEL PIPE JOINT COMP. 16G1-24304-11-00

Required: 1

FUEL PIPE JOINT COMP. 1

Supersedes: 6G1-24304-02-00

4 aftermarket alternatives

In stock

5+ in stock

~~$35.99~~

$28.79

You save $7.20

-15%

BOLT

No longer availableSearch Nationwide Inventory

~~$3.35~~

$2.85

You save $0.50

More details

-20%

Yamaha Motors

Plate Washer92990-06600-00

Required: 1

WASHER

Supersedes: 92995-06600-00

10 aftermarket alternatives

In stock

5+ in stock

~~$2.95~~

$2.36

You save $0.59

More details

-20%

Yamaha Motors

Strainer646-24251-02-00

Required: 1

STRAINER 1

7 aftermarket alternatives

In stock

5+ in stock

~~$19.95~~

$15.96

You save $3.99

-20%

HOSE (L205)

Supersedes: 90445-09221-00

13 aftermarket alternatives

In stock

5+ in stock

~~$12.49~~

$9.99

You save $2.50

More details

-20%

Yamaha Motors

Pipe 55RB-24315-00-00

Required: 1

HOSE (L30)

Supersedes: 90445-09220-00

1 aftermarket alternative

In stock

Only 1 remaining

~~$8.49~~

$6.79

You save $1.70

-20%

CLIP

2 aftermarket alternatives

In stock

Only 5 remaining

~~$9.49~~

$7.59

You save $1.90

More details

-15%

Yamaha Motors

TOOL KIT656-W2810-03-00

Required: 1

TOOL KIT

Supersedes: 6N0-F8100-00-00

~~$45.99~~

$39.09

You save $6.90

More details

-20%

Yamaha Motors

WATER CHECK PLUG6E0-28193-00-00

Required: 1

PLUG, WATER CHECK

Supersedes: 6L8-F8193-00-00

~~$7.49~~

$5.99

You save $1.50

More details

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-F0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-E0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-H0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-S0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-G0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-7D-D0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-N0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-K0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-P0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-R0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-M0

Required: 1

MANUAL,OWNER'S

Price unavailable

Yamaha Motors

MANUAL,OWNER'S6M8-F8199-8E-L0

Required: 1

MANUAL,OWNER'S

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
