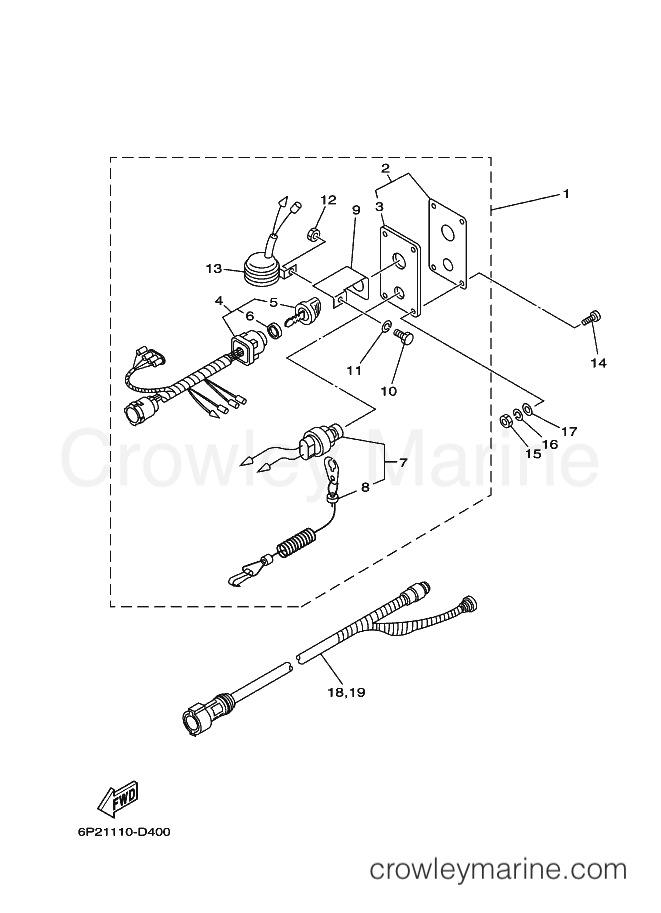

2005 International 250hp - FL250AETX (6P31) [020] SWITCH & PANEL 1 diagram
![Yamaha Motors FL250AETX (6P31) [020] - SWITCH & PANEL 1](https://cdn.crowleymarine.com/yamaha/tktUKCmh.png)
-20%
1
Yamaha Motors
PANEL, MAIN SWITCH ASSY704-82570-13-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 704-82570-08-00
$174.95
You save $43.55
-15%
2
Yamaha Motors
Switch Panel704-82571-02-00
Required: 1
. PANEL, SWITCH
$63.74
You save $11.25
-15%
$24.64
You save $4.35
-15%
4
Yamaha Motors
Main Switch Assembly TE, TP704-82510-0B-00
Required: 1
. MAIN SWITCH ASSY
Supersedes: 704-82510-07-00
$185.29
You save $32.70
-20%
5
Yamaha Motors
Key Cap703-82577-00-00
Required: 1
. . CAP, KEY
$7.59
You save $1.90
-15%
In stock
5+ in stock
$5.09
You save $0.90
-20%
7
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
. ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$31.19
You save $7.80
-20%
In stock
5+ in stock
$6.79
You save $1.70
-15%
9
Yamaha Motors
Cord Clamp Stator Assembly64D-82581-00-00
Required: 1
. STAY, CORD CLAMP
$22.09
You save $3.90
-15%
10
Yamaha Motors
BOLT97080-05012-00
Required: 1
. BOLT
Supersedes: 97303-05012-00
No longer availableSearch Nationwide Inventory
$0.76
You save $0.14
-20%
11
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
. WASHER, SPRING
Supersedes: 92903-05100-00
$0.28
You save $0.07
-20%
In stock
5+ in stock
$4.40
You save $1.10
-15%
13
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
. BUZZER
Supersedes: 688-83383-11-00
$55.24
You save $9.75
-50%
In stock
Only 1 remaining
$1.65
You save $1.65
-20%
In stock
5+ in stock
$7.59
You save $1.90
-20%
16
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
WASHER, SPRING
$0.28
You save $0.07
-20%
17
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$0.64
You save $0.16
-20%
18
Yamaha Motors
(5M) Wire Harness Extension688-8258A-50-00
Required: 1
EXTENSION, WIRE HARNESS (5M)
$114.95
You save $29.05
-15%
19
Yamaha Motors
EXTENSION, WIRE HA6K1-8258A-41-00
Required: 1
EXTENSION, WIRE HARNESS (8M)
Supersedes: 6K1-8258A-40-00
$153.42
You save $27.08
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
