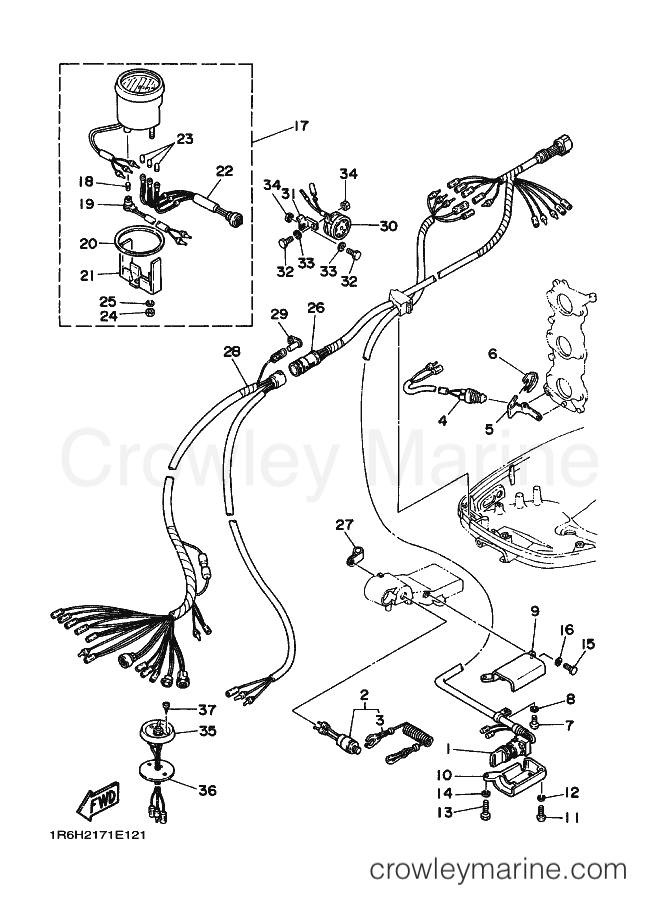

1994 International 60hp - 60F (6H2) [030] ELECTRICAL 2 diagram
![Yamaha Motors 60F (6H2) [030] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/tKSB0noA.png)
-15%
1
Yamaha Motors
Main Switch Assembly TE, TP67G-82510-31-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 6H5-82510-00-00
No longer availableSearch Nationwide Inventory
$164.13
You save $28.97
-20%
2
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$31.19
You save $7.80
-20%
In stock
5+ in stock
$6.79
You save $1.70
-20%
4
Yamaha Motors
Obsolete Yamaha Part688-82540-12-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 6H3-82540-00-00
In stock
5+ in stock
$39.19
You save $9.80
-15%
5
Yamaha Motors
Neutral Switch Stay6H3-82554-00-00
Required: 1
STAY, neutral switch
$11.04
You save $1.95
-20%
6
Yamaha Motors
Main Switch Damper663-82555-01-00
Required: 1
DAMPER, main switch 1
$11.19
You save $2.80
-20%
7
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, pan head
Supersedes: 98580-06012-00
$2.76
You save $0.69
-20%
8
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
9
Yamaha Motors
Obsolete Yamaha Part697-8252E-02-EK
Required: 1
COVER, main switch
Supersedes: 697-8252E-00-EK
No longer availableSearch Nationwide Inventory
$27.84
You save $4.91
-15%
10
Yamaha Motors
Obsolete Yamaha Part697-8252F-02-EK
Required: 1
COVER, main switch
Supersedes: 697-8252F-00-EK
No longer availableSearch Nationwide Inventory
$29.03
You save $5.12
-20%
11
Yamaha Motors
Pan Head Screw97885-06025-00
Required: 1
SCREW, pan head
Supersedes: 92580-06025-00
In stock
Only 4 remaining
$4.39
You save $1.10
-20%
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-20%
13
Yamaha Motors
Bolt97080-06030-00
Required: 1
BOLT
Supersedes: 97313-06030-00
In stock
Only 3 remaining
$3.28
You save $0.82
-20%
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-20%
16
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-15%
17
Yamaha Motors
Tachometer Assembly6Y5-83540-04-00
Required: 1
TACHOMETER ASSY
No longer availableSearch Nationwide Inventory
$284.66
You save $50.24
-15%
18
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 1
.BULB (12V-1.7W)
Supersedes: 6Y5-83517-00-00
$7.22
You save $1.27
-15%
19
Yamaha Motors
Meter Socket6Y5-83536-40-00
Required: 1
.SOCKET, meter
$11.04
You save $1.95
-15%
$8.07
You save $1.42
-15%
21
Yamaha Motors
Fitting Plate6Y5-83514-00-00
Required: 1
.PLATE, fitting
$15.29
You save $2.70
-15%
22
Yamaha Motors
Socket Cord Assembly6Y5-83509-02-00
Required: 1
.SOCKET CORD ASSY
No longer availableSearch Nationwide Inventory
$33.66
You save $5.94
-15%
23
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 3
.BULB (12V-1.7W)
Supersedes: 6Y5-83518-00-00
$8.07
You save $1.42
-20%
24
Yamaha Motors
Nut95380-05600-00
Required: 2
.NUT
Supersedes: 95303-05600-00
In stock
5+ in stock
$7.59
You save $1.90
-20%
25
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, spring
$0.28
You save $0.07
-15%
26
Yamaha Motors
Wire Lead Extension6H2-82586-00-00
Required: 1
EXTENSION, wireharness
No longer availableSearch Nationwide Inventory
$139.70
You save $24.65
-15%
No longer availableSearch Nationwide Inventory
$4.33
You save $0.77
28
Yamaha Motors
WIRE, lead6H5-83553-10
Required: 1
WIRE, lead
Price unavailable
-15%
29
Yamaha Motors
Lead Wire Cover6A0-82119-00-00
Required: 1
COVER, lead wire
$6.79
You save $1.20
-15%
30
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
BUZZER
Supersedes: 688-83383-11-00
$55.24
You save $9.75
-15%
No longer availableSearch Nationwide Inventory
$10.33
You save $1.82
-50%
In stock
Only 1 remaining
$0.85
You save $0.85
-20%
33
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, spring
$0.28
You save $0.07
-20%
34
Yamaha Motors
Nut95380-05600-00
Required: 2
NUT
Supersedes: 95303-05600-00
In stock
5+ in stock
$7.59
You save $1.90
-15%
35
Yamaha Motors
Trim & Tilt Switch Assembly688-82563-10-00
Required: 1
TRIM & TILT SWITCH ASSY
$50.14
You save $8.85
-15%
$8.92
You save $1.57
-15%
37
Yamaha Motors
Tapping Screw97780-40116-00
Required: 2
SCREW, tapping
$3.61
You save $0.64
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
