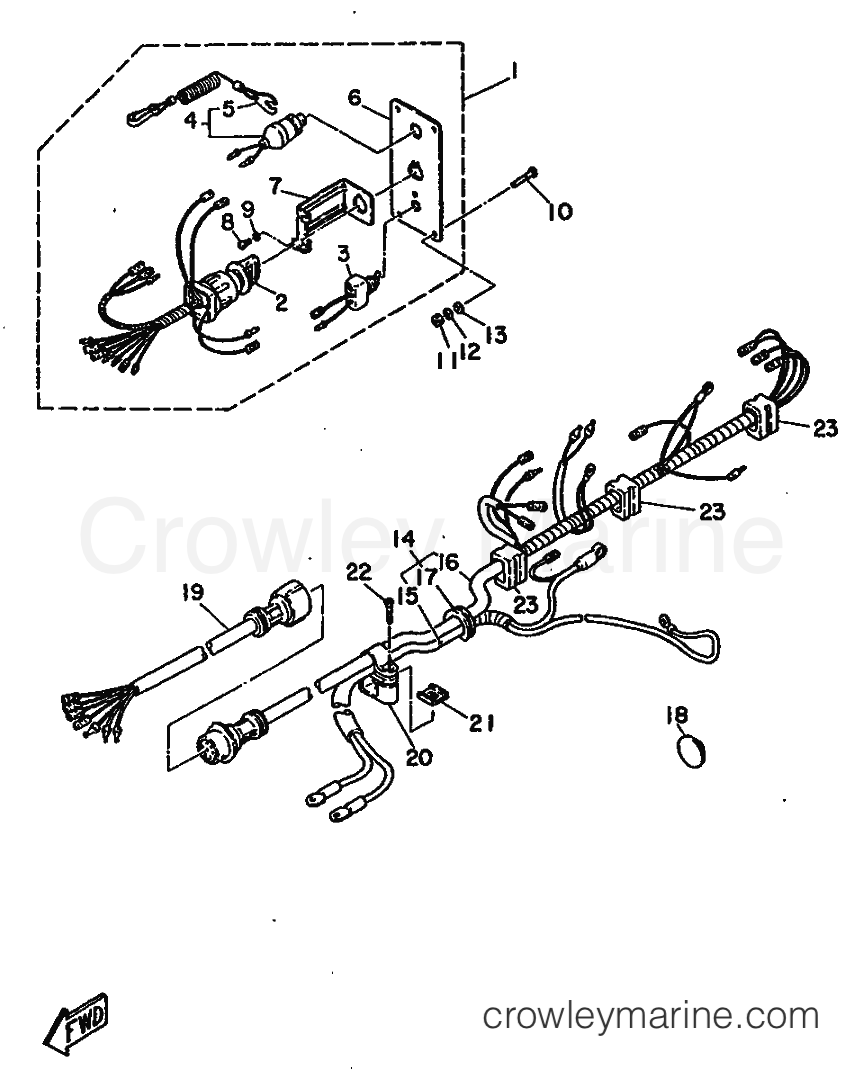

1985 International 30hp - 30A (689) [999] SWITCH PANEL diagram
![Yamaha Motors 30A (689) [999] - SWITCH PANEL](https://cdn.crowleymarine.com/yamaha/tVcVV4tm.png)
-15%
1
Yamaha Motors
Panel Switch Assembly689-82570-14-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 689-82570-13-00
No longer availableSearch Nationwide Inventory
$234.77
You save $41.43
-15%
2
Yamaha Motors
Main Switch Assembly TE, TP688-82510-13-00
Required: 1
. MAIN SWITCH ASSY
Supersedes: 688-82510-11-00
$128.34
You save $22.65
-15%
3
Yamaha Motors
Choke Switch6K1-82574-00-00
Required: 1
. GRAPHIC, PANEL SWITCH
Supersedes: 688-82574-00-00
$68.84
You save $12.15
-20%
4
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
. ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$31.19
You save $7.80
-20%
5
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
. . DAMPER, STOPPER
In stock
5+ in stock
$6.79
You save $1.70
-15%
6
Yamaha Motors
Switch Panel689-82571-02-00
Required: 1
. PANEL, SWITCH
Supersedes: 689-82571-01-00
No longer availableSearch Nationwide Inventory
$29.03
You save $5.12
-15%
7
Yamaha Motors
Cord Clamp Stay663-82581-01-00
Required: 1
. STAY, CORD CLAMP
$10.62
You save $1.87
-15%
8
Yamaha Motors
Cylinder Head Screw98303-04008-00
Required: 1
. SCREW, CYLINDER HEAD
$4.17
You save $0.74
-20%
9
Yamaha Motors
Spring Washer92990-04100-00
Required: 1
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.76
You save $0.19
$1.74
-20%
11
Yamaha Motors
Nut95380-05600-00
Required: 4
NUT
Supersedes: 95303-05600-00
In stock
5+ in stock
$7.59
You save $1.90
-20%
12
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
WASHER, SPRING
Supersedes: 92903-05100-00
$0.28
You save $0.07
-20%
13
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
Supersedes: 92903-05600-00
In stock
Only 1 remaining
$0.64
You save $0.16
-15%
14
Yamaha Motors
Obsolete Yamaha Part689-82580-19-00
Required: 1
WIRE HARNESS ASSY 2
Supersedes: 689-82580-13-00
No longer availableSearch Nationwide Inventory
$167.75
You save $29.60
-15%
15
Yamaha Motors
BATTERY CABLE (RL45)695-82105-13-00
Required: 1
. WIRE HARNESS
Supersedes: 689-82105-12-00
No longer availableSearch Nationwide Inventory
$126.18
You save $22.27
-15%
16
Yamaha Motors
Wire Harness Assembly689-82590-11-00
Required: 1
. WIRE HARNESS ASSY
No longer availableSearch Nationwide Inventory
$86.53
You save $15.27
-15%
17
Yamaha Motors
GROMMET689-42724-51-00
Required: 1
. GROMMET
Supersedes: 689-42724-50-00
$8.07
You save $1.42
-15%
$8.92
You save $1.57
-15%
19
Yamaha Motors
Wire Harness 49M Extension688-82586-21-00
Required: 1
EXTENSION, WIRE HARNESS
$96.04
You save $16.95
-15%
$11.47
You save $2.02
-15%
21
Yamaha Motors
Friction Plate682-42525-00-00
Required: 1
PLATE, FRICTION
$11.47
You save $2.02
-15%
22
Yamaha Motors
Tapping Screw90161-06M03-00
Required: 1
SCREW, TAPPING
Supersedes: 90161-06M00-00
$4.00
You save $0.71
-15%
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
