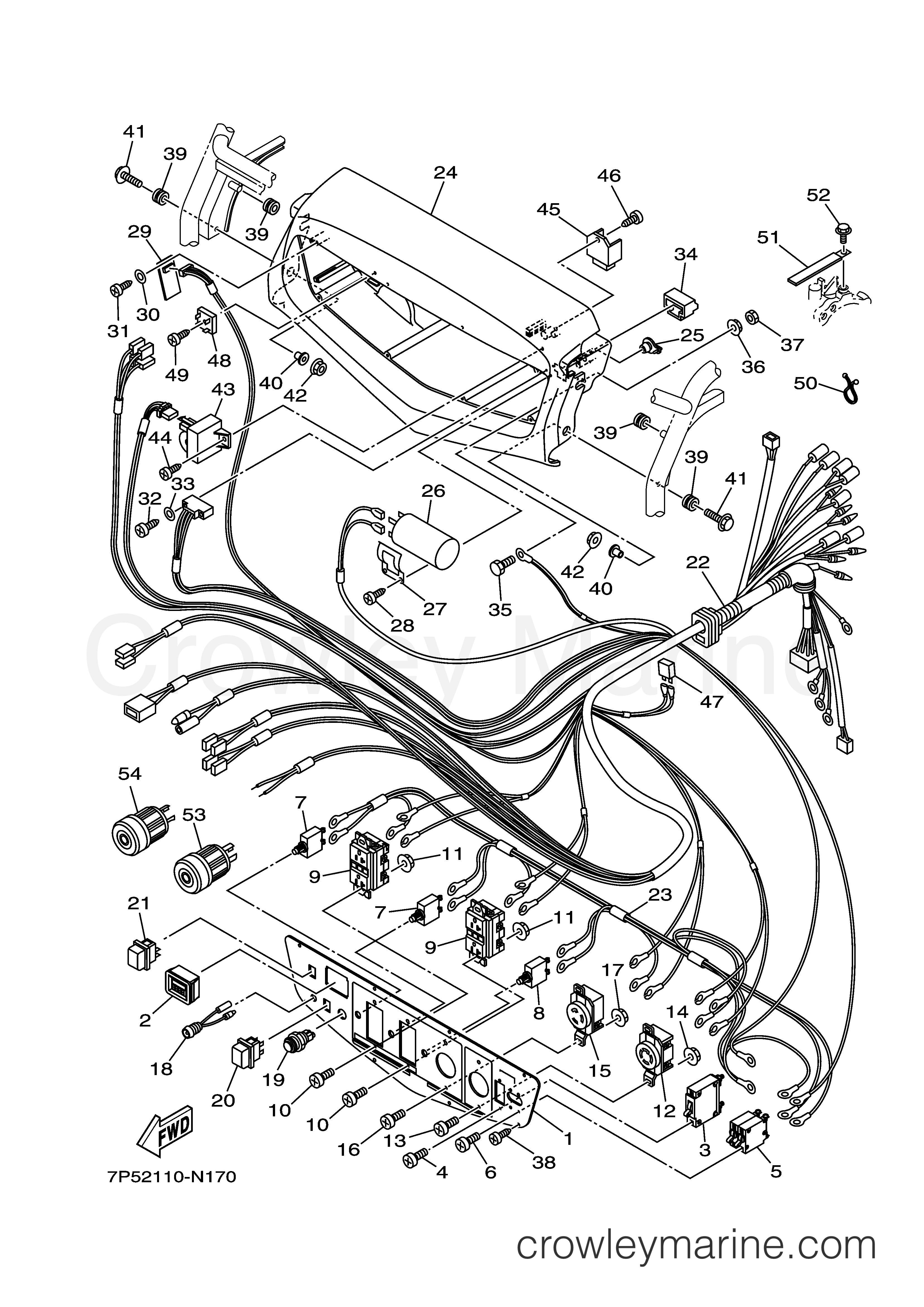

2014 Generator 55 - EF55DE CONTROL BOX 1 diagram
1
Yamaha Motors
PLATE7P5-H7249-90-00
Required: 1
PLATE
Price unavailable
2
Yamaha Motors
METER ASSY7P6-H3500-00-00
Required: 1
METER ASSY
Price unavailable
3
Yamaha Motors
BREAKER COMP.7P5-H7204-B0-00
Required: 1
BREAKER COMP.
Price unavailable
4
Yamaha Motors
SCREW, PAN HEAD98507-03005-00
Required: 2
SCREW, PAN HEAD
Price unavailable
5
Yamaha Motors
BREAKER COMP., CIRCUIT7P5-H720J-10-00
Required: 1
BREAKER COMP., CIRCUIT
Price unavailable
6
Yamaha Motors
SCREW, PAN HEAD98507-03005-00
Required: 4
SCREW, PAN HEAD
Price unavailable
7
Yamaha Motors
CIRCUIT BREAKER COMP.7P6-H2181-00-00
Required: 2
CIRCUIT BREAKER COMP.
Price unavailable
8
Yamaha Motors
CIRCUIT BREAKER COMP.7P6-H2181-10-00
Required: 1
CIRCUIT BREAKER COMP.
Price unavailable
-15%
9
Yamaha Motors
Receptacle7MC-87221-A3-00
Required: 2
RECEPTACLE 1 (20A 125V AC)
Supersedes: 7C6-H7221-A0-00
No longer availableSearch Nationwide Inventory
$304.29
You save $53.70
-15%
10
Yamaha Motors
Screw98517-04012-00
Required: 4
.SCREW, PAN HEAD
Supersedes: 98507-04012-00
$3.57
You save $0.63
-15%
$8.07
You save $1.42
12
Yamaha Motors
RECEPTACLE 1 (NEMA L14-30)7C6-H7221-90-00
Required: 1
RECEPTACLE 1 (NEMA L14-30)
Price unavailable
-15%
13
Yamaha Motors
Screw98517-04012-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98507-04012-00
$3.57
You save $0.63
-15%
$8.07
You save $1.42
-15%
15
Yamaha Motors
Receptacle7VU-87221-90-00
Required: 1
RECEPTACLE 2 (NEMA L5-30)
Supersedes: 7C6-H7222-40-00
In stock
Only 3 remaining
$65.44
You save $11.55
-15%
16
Yamaha Motors
Screw98517-04012-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98507-04012-00
$3.57
You save $0.63
-15%
$8.07
You save $1.42
-15%
18
Yamaha Motors
Pilot Light Assembly7PB-H3582-00-00
Required: 1
PILOT LIGHT ASSY
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
19
Yamaha Motors
Starting Switch Assembly7C6-H1870-00-00
Required: 1
STARTING SWITCH ASSY
No longer availableSearch Nationwide Inventory
$95.19
You save $16.80
20
Yamaha Motors
ENGINE STOP SWITCH ASSY7C6-H2550-00-00
Required: 1
ENGINE STOP SWITCH ASSY
Price unavailable
-15%
21
Yamaha Motors
STOP SWITCH ASSY7XX-82550-02-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 7C3-H2550-10-00
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
22
Yamaha Motors
WIRE HARNESS ASSY7P5-H7226-20-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
23
Yamaha Motors
WIRE, SUB LEAD7P6-H2509-20-00
Required: 1
WIRE, SUB LEAD
Price unavailable
-15%
24
Yamaha Motors
Control Box Cover7P6-H7213-90-00
Required: 1
COVER, CONTROL BOX
$130.89
You save $23.10
25
Yamaha Motors
GROMMET7C5-H4762-00-00
Required: 1
GROMMET
Price unavailable
-15%
$117.95
You save $21.04
27
Yamaha Motors
HOLDER, CONDENSER7C5-H7216-00-00
Required: 1
HOLDER, CONDENSER
Price unavailable
-15%
28
Yamaha Motors
Tapping Screw97702-50512-00
Required: 2
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.74
You save $0.66
29
Yamaha Motors
SPEED LIMITER ASSY7P6-H5680-00-00
Required: 1
SPEED LIMITER ASSY
Price unavailable
-15%
30
Yamaha Motors
Plate Washer90201-03644-00
Required: 1
WASHER, PLATE
Supersedes: 90201-03801-00
No longer availableSearch Nationwide Inventory
$1.83
You save $0.32
-15%
31
Yamaha Motors
Tapping Screw97707-30512-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-03803-00
$1.32
You save $0.23
-15%
32
Yamaha Motors
Tapping Screw97707-30512-00
Required: 2
SCREW, TAPPING
Supersedes: 90167-03803-00
$1.32
You save $0.23
33
Yamaha Motors
WASHER92902-03200-00
Required: 2
WASHER
Price unavailable
34
Yamaha Motors
COVER, CONNECTER7C6-H2599-00-00
Required: 1
COVER, CONNECTER
Price unavailable
-20%
In stock
5+ in stock
$3.68
You save $0.92
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-20%
In stock
Only 1 remaining
$7.59
You save $1.90
-15%
38
Yamaha Motors
Tapping Screw97707-40616-00
Required: 8
SCREW, TAPPING
Supersedes: 97707-40516-00
$1.57
You save $0.28
-15%
$8.07
You save $1.42
-15%
40
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
$8.07
You save $1.42
-15%
41
Yamaha Motors
95811-06025-0095801-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06025-00
No longer availableSearch Nationwide Inventory
$1.40
You save $0.25
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-15%
43
Yamaha Motors
SLOW DOWN UNIT ASS7C5-H7286-01-00
Required: 1
SLOW DOWN UNIT ASSY
Supersedes: 7C5-H7286-00-00
$204.95
You save $36.04
44
Yamaha Motors
Tapping Screw97702-60520-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.42
45
Yamaha Motors
RECTIFIER & REGULATOR ASSY7P6-H1960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
46
Yamaha Motors
Tapping Screw97702-60520-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.42
47
Yamaha Motors
FUSE7C6-H2151-00-00
Required: 1
FUSE
Price unavailable
48
Yamaha Motors
RECTIFIER ASSY 17C3-H7105-00-00
Required: 1
RECTIFIER ASSY 1
Price unavailable
49
Yamaha Motors
Tapping Screw97702-50520-00
Required: 1
SCREW, TAPPING
$0.99
50
Yamaha Motors
CLAMP90464-15803-00
Required: 1
CLAMP
Price unavailable
-15%
51
Yamaha Motors
Clamp90462-10236-00
Required: 1
CLAMP
Supersedes: 90462-05061-00
$9.77
You save $1.72
-15%
52
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
$2.72
You save $0.48
53
Yamaha Motors
PLUG, AC RECEPTACLE7C6-H7236-00-00
Required: 1
PLUG, AC RECEPTACLE
Price unavailable
54
Yamaha Motors
PLUG, AC RECEPTACLE7C6-H7236-10-00
Required: 1
PLUG, AC RECEPTACLE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
