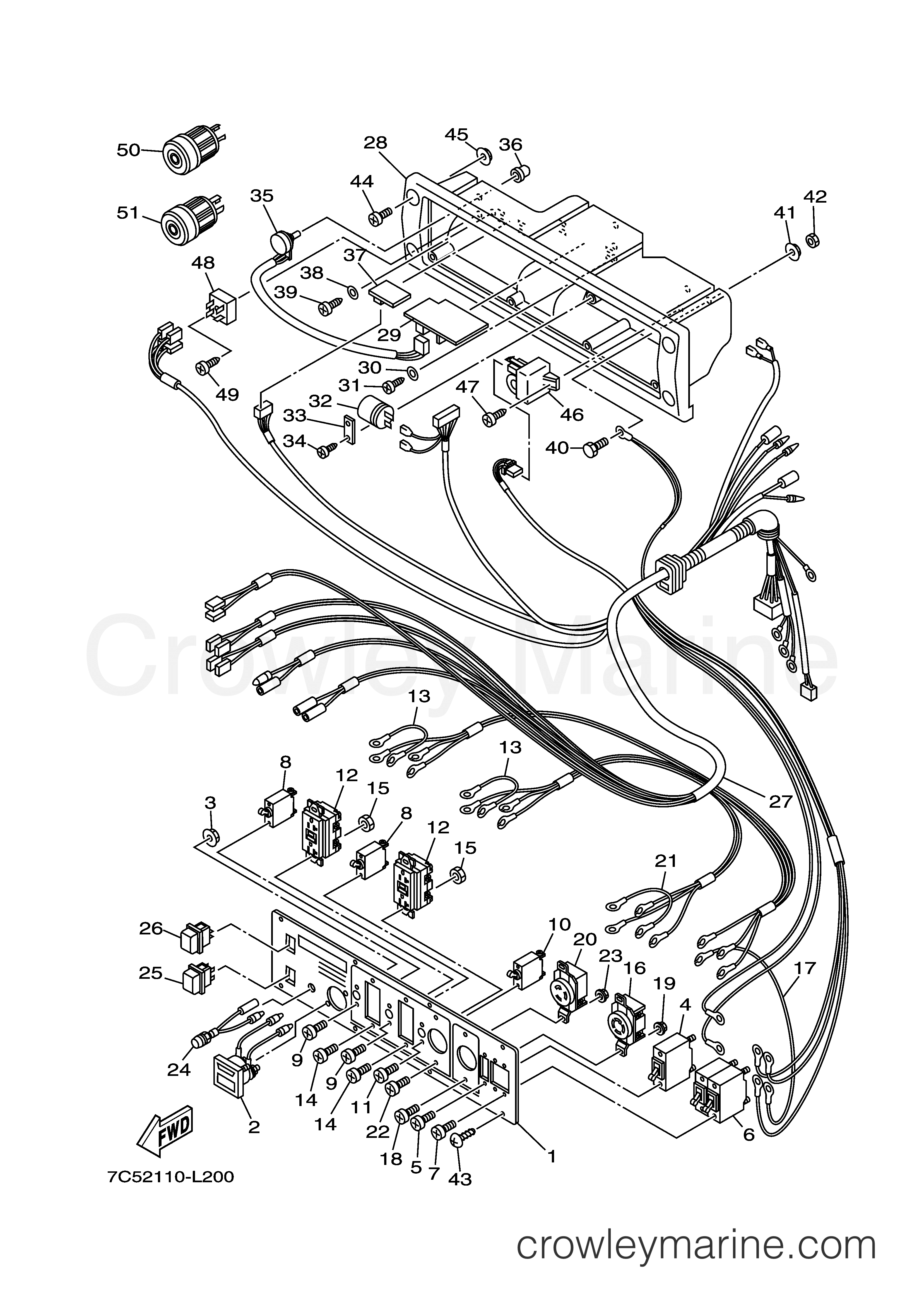

2012 Generator 5200 - EF5200DQ CONTROL BOX 2 diagram
1
Yamaha Motors
PLATE7C5-H7249-70-00
Required: 1
PLATE
Price unavailable
2
Yamaha Motors
METER SUB ASSY7C2-H7202-00-00
Required: 1
METER SUB ASSY
Price unavailable
$3.01
4
Yamaha Motors
BREAKER COMP. (DCP71BH 38A MS)7C5-H7204-10-00
Required: 1
BREAKER COMP. (DCP71BH 38A MS)
Price unavailable
-50%
5
Yamaha Motors
Pan Head Screw98580-03006-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98502-03006-00
In stock
Only 2 remaining
$5.25
You save $5.25
6
Yamaha Motors
BREAKER COMP. (DCP52BH 19A MS)7C5-H7204-70-00
Required: 1
BREAKER COMP. (DCP52BH 19A MS)
Price unavailable
-50%
7
Yamaha Motors
Pan Head Screw98580-03006-00
Required: 4
.SCREW, PAN HEAD
Supersedes: 98502-03006-00
In stock
Only 2 remaining
$5.25
You save $5.25
-15%
8
Yamaha Motors
Breaker Component7C3-H7204-81-00
Required: 2
BREAKER COMP. (DCP31SS 20A M S
Supersedes: 7C3-H7204-40-00
$117.29
You save $20.70
-50%
9
Yamaha Motors
Pan Head Screw98580-03006-00
Required: 4
.SCREW, PAN HEAD
Supersedes: 98502-03006-00
In stock
Only 2 remaining
$5.25
You save $5.25
-15%
10
Yamaha Motors
Circuit Breaker Assembly7C4-H7204-09-00
Required: 1
BREAKER COMP. (DCP31SS 30A M S
Supersedes: 7C6-H720H-80-00
$188.69
You save $33.30
-50%
11
Yamaha Motors
Pan Head Screw98580-03006-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98502-03006-00
In stock
Only 2 remaining
$5.25
You save $5.25
-15%
12
Yamaha Motors
Receptacle7MC-87221-A3-00
Required: 2
RECEPTACLE 1 (20A 125V AC)
Supersedes: 7C6-H7221-A0-00
No longer availableSearch Nationwide Inventory
$304.29
You save $53.70
13
Yamaha Motors
WIRE, LEAD 27C6-H7224-00-00
Required: 2
WIRE, LEAD 2
Price unavailable
-15%
14
Yamaha Motors
Pan Head Screw98502-04012-00
Required: 4
SCREW, PAN HEAD
$0.30
You save $0.05
-15%
$8.07
You save $1.42
16
Yamaha Motors
RECEPTACLE 1 (NEMA L14-30)7C6-H7221-90-00
Required: 1
RECEPTACLE 1 (NEMA L14-30)
Price unavailable
17
Yamaha Motors
WIRE, LEAD 27C6-H7224-10-00
Required: 1
WIRE, LEAD 2
Price unavailable
-15%
18
Yamaha Motors
Pan Head Screw98502-04012-00
Required: 2
SCREW, PAN HEAD
$0.30
You save $0.05
-15%
$8.07
You save $1.42
-15%
20
Yamaha Motors
Receptacle7VU-87221-90-00
Required: 1
RECEPTACLE 2 (NEMA L5-30)
Supersedes: 7C6-H7222-40-00
In stock
Only 3 remaining
$65.44
You save $11.55
21
Yamaha Motors
WIRE, LEAD 27C6-H7224-20-00
Required: 1
WIRE, LEAD 2
Price unavailable
-15%
22
Yamaha Motors
Pan Head Screw98502-04012-00
Required: 2
SCREW, PAN HEAD
$0.30
You save $0.05
-15%
$8.07
You save $1.42
-15%
24
Yamaha Motors
Oil Pilot Light Assembly7CA-H5770-01-00
Required: 1
OIL PILOT LIGHT ASSY
In stock
Only 1 remaining
$17.84
You save $3.15
25
Yamaha Motors
ENGINE STOP SWITCH ASSY7C6-H2550-00-00
Required: 1
ENGINE STOP SWITCH ASSY
Price unavailable
-15%
26
Yamaha Motors
STOP SWITCH ASSY7XX-82550-02-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 7C3-H2550-10-00
No longer availableSearch Nationwide Inventory
$14.02
You save $2.47
27
Yamaha Motors
WIRE HARNESS ASSY7C5-H7226-30-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-15%
28
Yamaha Motors
Control Box Cover7C6-H7213-G2-00
Required: 1
COVER, CONTROL BOX
$152.14
You save $26.85
-15%
29
Yamaha Motors
Voltage Regulator Assembly7C6-H722A-00-00
Required: 1
VOLTAGE REGULATOR ASSY
$231.19
You save $40.80
-15%
30
Yamaha Motors
Plate Washer90201-03644-00
Required: 1
WASHER, PLATE
Supersedes: 90201-03801-00
No longer availableSearch Nationwide Inventory
$1.83
You save $0.32
-15%
31
Yamaha Motors
Tapping Screw97707-30512-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-03803-00
$1.32
You save $0.23
-15%
$96.04
You save $16.95
33
Yamaha Motors
STAY, SOLENOID7C6-H6112-00-00
Required: 1
STAY, SOLENOID
Price unavailable
34
Yamaha Motors
SCREW, TAPPING97702-60512-00
Required: 1
SCREW, TAPPING
Price unavailable
-15%
35
Yamaha Motors
Variable Resistor7C6-H7283-00-00
Required: 1
RESISTOR, VARIABLE
$84.99
You save $15.00
36
Yamaha Motors
CAP7C6-H2532-00-00
Required: 1
CAP
Price unavailable
-15%
37
Yamaha Motors
Oil Warning Unit7C2-H5690-00-00
Required: 1
OIL WARNING UNIT
$93.49
You save $16.50
-15%
38
Yamaha Motors
Plate Washer90201-03644-00
Required: 1
WASHER, PLATE
Supersedes: 90201-03801-00
No longer availableSearch Nationwide Inventory
$1.83
You save $0.32
-15%
39
Yamaha Motors
Tapping Screw97707-30512-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-03803-00
$1.32
You save $0.23
-20%
In stock
5+ in stock
$3.68
You save $0.92
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-20%
In stock
Only 1 remaining
$7.59
You save $1.90
-15%
43
Yamaha Motors
Tapping Screw97780-40116-00
Required: 8
SCREW, TAPPING
Supersedes: 97702-40516-00
$3.61
You save $0.64
-15%
44
Yamaha Motors
98904-06014-0098903-06014-00
Required: 4
SCREW, BIND
Supersedes: 98902-06014-00
No longer availableSearch Nationwide Inventory
$1.87
You save $0.33
-15%
In stock
Only 1 remaining
$2.21
You save $0.39
-15%
46
Yamaha Motors
SLOW DOWN UNIT ASS7C5-H7286-01-00
Required: 1
SLOW DOWN UNIT ASSY
Supersedes: 7C5-H7286-00-00
$204.95
You save $36.04
47
Yamaha Motors
Tapping Screw97702-60520-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.42
48
Yamaha Motors
RECTIFIER ASSY 17C3-H7105-00-00
Required: 1
RECTIFIER ASSY 1
Price unavailable
49
Yamaha Motors
Tapping Screw97702-50520-00
Required: 1
SCREW, TAPPING
$0.99
50
Yamaha Motors
PLUG, AC RECEPTACLE7C6-H7236-00-00
Required: 1
PLUG, AC RECEPTACLE
Price unavailable
51
Yamaha Motors
PLUG, AC RECEPTACLE7C6-H7236-10-00
Required: 1
PLUG, AC RECEPTACLE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
