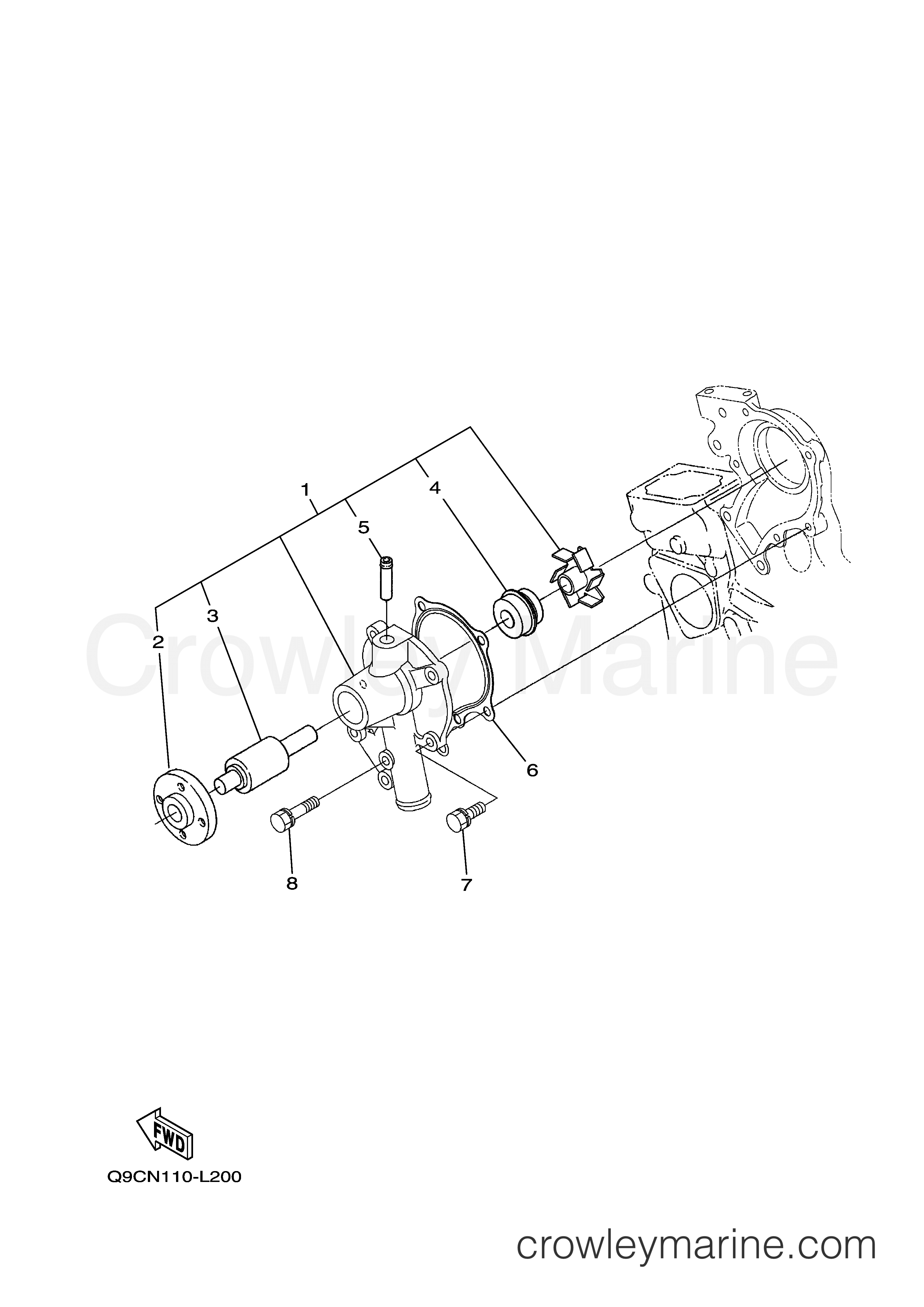

2012 Generator 7000 - EDL7000SDE WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

Yamaha Motors

WATERPUMP ASSYYF1-E0517-30-36

Required: 1

WATER PUMP ASSY

Supersedes: YF1-E0517-30-34

~~$308.99~~

$262.64

You save $46.35

More details

Yamaha Motors

..FLANGE, WATER PUMPYF1-58527-35-23

Required: 1

..FLANGE, WATER PUMP

Price unavailable

-15%

Yamaha Motors

BearingYF1-58527-35-50

Required: 1

.BEARING

~~$156.99~~

$133.44

You save $23.55

More details

-15%

Yamaha Motors

Mechanical Seal AssemblyYF1-54817-30-50

Required: 1

.MECHANICAL SEAL ASSY

~~$87.99~~

$74.79

You save $13.20

More details

-15%

Yamaha Motors

Water Return PipeYF1-58527-33-40

Required: 1

..PIPE, WATER RETURN 1

~~$17.99~~

$15.29

You save $2.70

More details

-15%

Yamaha Motors

Water Pump PackingYF1-68717-34-30

Required: 1

GASKET, WATER PUMP

~~$13.49~~

$11.47

You save $2.02

BOLT

No longer availableSearch Nationwide Inventory

$2.19

More details

-15%

Yamaha Motors

With Washer BoltYF0-10235-06-38

Required: 1

BOLT, WITH WASHER

~~$2.00~~

$1.70

You save $0.30

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2012 Generator 7000 - EDL7000SDE WATER PUMP diagram
