All diagrams for this model

2012 Generator 7000 - EDL7000SDE FRAME 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

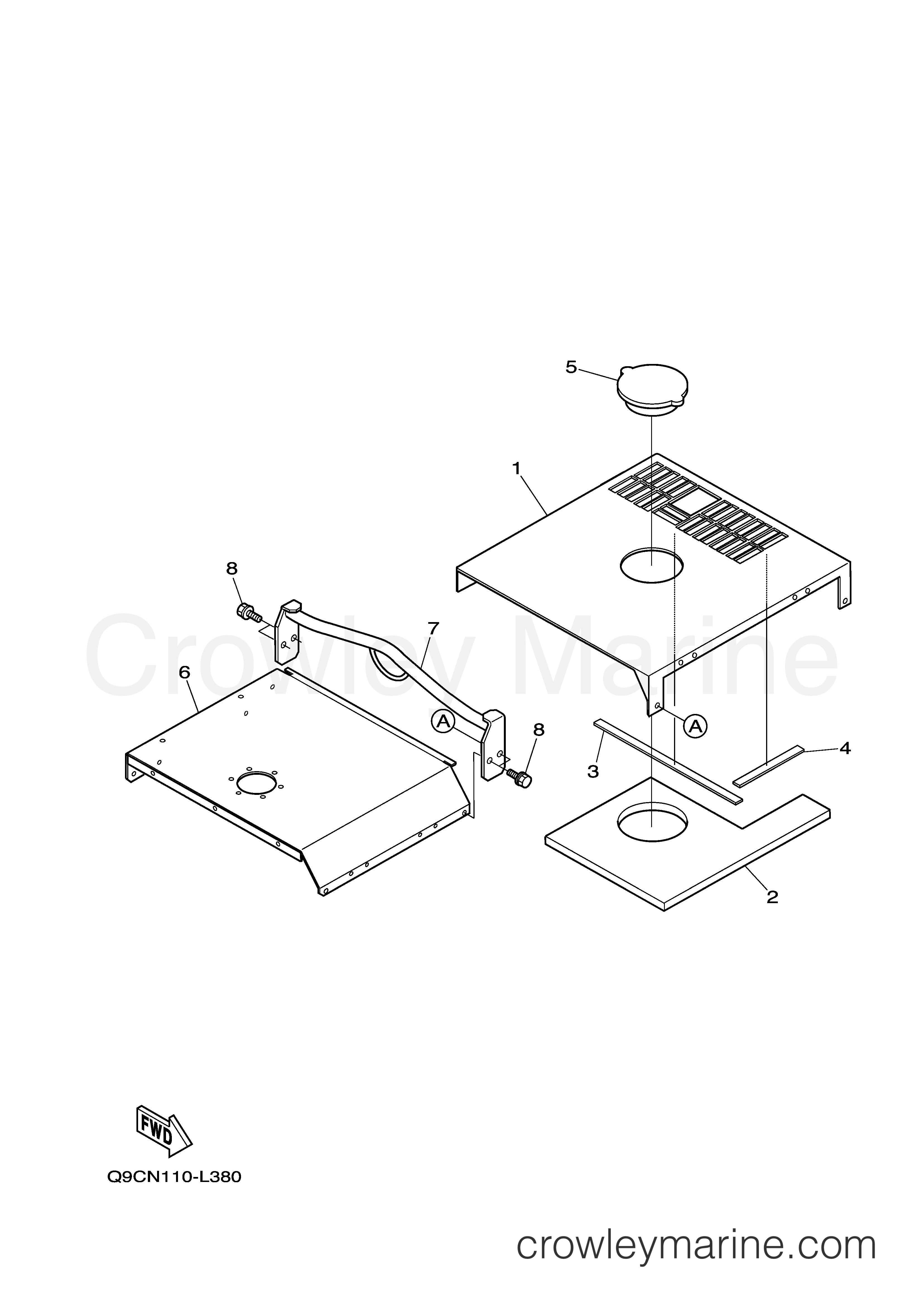

Yamaha Motors EDL7000SDE - FRAME 4
Change View:
ENGINE ROOF COMP.
1
Yamaha Motors
ENGINE ROOF COMP.Y04-00000-00-18
Required: 1
ENGINE ROOF COMP.
Price unavailable
SPONGE, ROOF
2
Yamaha Motors
SPONGE, ROOFYFG-31024-02-80
Required: 1
SPONGE, ROOF
Price unavailable
CUSHION
3
Yamaha Motors
CUSHIONYFG-31024-03-50
Required: 1
CUSHION
Price unavailable
CUSHION
4
Yamaha Motors
CUSHIONYFG-31024-03-60
Required: 1
CUSHION
Price unavailable
COVER, RADIATOR TOP
5
Yamaha Motors
COVER, RADIATOR TOPYF1-G2917-51-10
Required: 1
COVER, RADIATOR TOP
Price unavailable
GENERATOR ROOF COMP.
6
Yamaha Motors
GENERATOR ROOF COMP.Y04-00000-00-19
Required: 1
GENERATOR ROOF COMP.
Price unavailable
HANGER, ROOF
7
Yamaha Motors
HANGER, ROOFY04-00000-00-20
Required: 1
HANGER, ROOF
Price unavailable
BOLT
8
Yamaha Motors
BOLTYF0-17545-08-20
Required: 4
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
