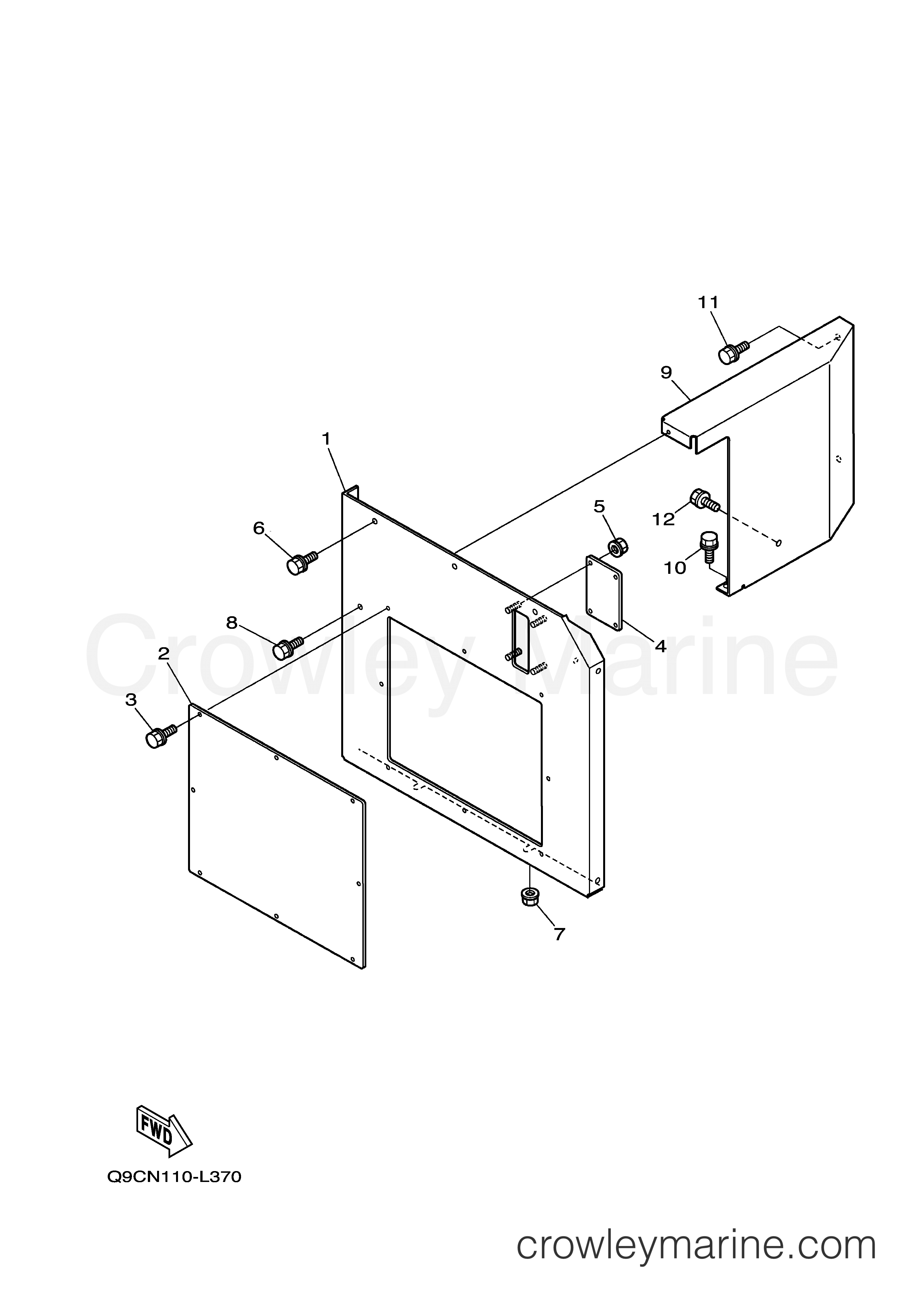

2012 Generator 7000 - EDL7000SDE FRAME 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

FRAME, REARY04-00000-00-15

Required: 1

FRAME, REAR

Price unavailable

Yamaha Motors

COVER, GAUGEY04-00000-00-16

Required: 1

COVER, GAUGE

Price unavailable

-15%

Yamaha Motors

BoltYF0-17545-06-14

Required: 8

BOLT

~~$3.90~~

$3.32

You save $0.58

More details

Yamaha Motors

COVER, GAUGEYFG-31023-01-20

Required: 1

COVER, GAUGE

Price unavailable

Yamaha Motors

Flange NutYF0-27515-00-60

Required: 4

NUT, FLANGE

$0.92

-15%

BOLT

~~$4.75~~

$4.04

You save $0.71

-15%

NUT, FLANGE

~~$5.49~~

$4.67

You save $0.82

-15%

BOLT

~~$3.90~~

$3.32

You save $0.58

More details

Yamaha Motors

COVERY04-00000-00-17

Required: 1

COVER

Price unavailable

-15%

Yamaha Motors

BoltYF0-17545-08-16

Required: 1

BOLT

~~$4.75~~

$4.04

You save $0.71

-15%

BOLT

~~$3.90~~

$3.32

You save $0.58

-15%

BOLT

~~$3.90~~

$3.32

You save $0.58

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
