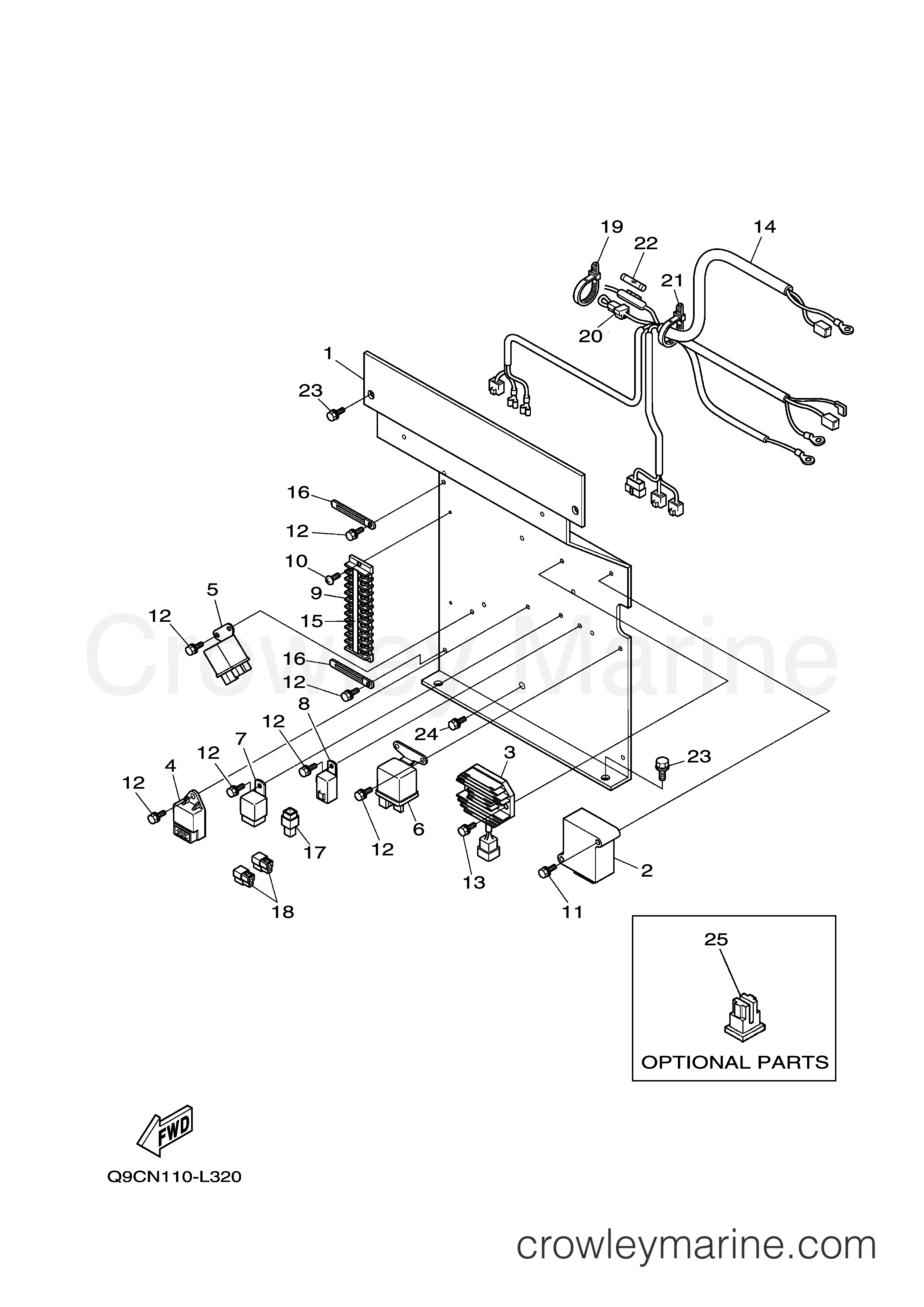

2012 Generator 7000 - EDL7000SDE CONTROL BOX 2 diagram
1
Yamaha Motors
BRACKETY04-00000-00-03
Required: 1
BRACKET
Price unavailable
-15%
2
Yamaha Motors
Emergency UnitYF1-71476-06-04
Required: 1
EMERGENCY UNIT
$429.24
You save $75.75
3
Yamaha Motors
REGULATOR COMP.YF1-58446-46-03
Required: 1
REGULATOR COMP.
Price unavailable
-15%
$225.24
You save $39.75
-15%
$160.64
You save $28.35
-15%
$139.39
You save $24.60
-15%
7
Yamaha Motors
Relay AssemblyYF1-74786-02-20
Required: 1
RELAY COMP. (B)
$102.84
You save $18.15
8
Yamaha Motors
RELAYYFG-39076-02-50
Required: 1
RELAY
Price unavailable
9
Yamaha Motors
AMF TERMINAL ASSYYFG-39070-34-10
Required: 1
AMF TERMINAL ASSY
Price unavailable
10
Yamaha Motors
SCREW, TAPPINGYFG-31029-10-60
Required: 2
SCREW, TAPPING
Price unavailable
11
Yamaha Motors
BOLTYF1-88071-05-90
Required: 2
BOLT
Price unavailable
12
Yamaha Motors
BOLT, W SEMS (PHILLIPSYF0-12055-06-12
Required: 9
BOLT, W SEMS (PHILLIPS
Price unavailable
13
Yamaha Motors
BOLTYF1-89131-58-30
Required: 2
BOLT
Price unavailable
14
Yamaha Motors
WIRE HARNESS, ENGINEYFG-31020-38-10
Required: 1
WIRE HARNESS, ENGINE
Price unavailable
15
Yamaha Motors
MARK, AMFYFG-39078-84-40
Required: 1
MARK, AMF
Price unavailable
16
Yamaha Motors
PLATEYFG-39070-28-50
Required: 2
PLATE
Price unavailable
17
Yamaha Motors
FUSEYF3-46703-45-30
Required: 1
FUSE
Price unavailable
18
Yamaha Motors
DIODEYFR-P2015-39-20
Required: 2
DIODE
Price unavailable
19
Yamaha Motors
FASTENERYF1-89010-40-60
Required: 5
FASTENER
Price unavailable
20
Yamaha Motors
WIRE HARNESSYFG-31020-37-10
Required: 1
WIRE HARNESS
Price unavailable
21
Yamaha Motors
CLAMP, CORDYFG-31120-40-60
Required: 1
CLAMP, CORD
Price unavailable
22
Yamaha Motors
FUSEYFG-39070-34-80
Required: 1
FUSE
Price unavailable
-15%
$4.04
You save $0.71
-15%
$3.32
You save $0.58
25
Yamaha Motors
FUSEYF3-46703-45-30
Required: 1
FUSE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
