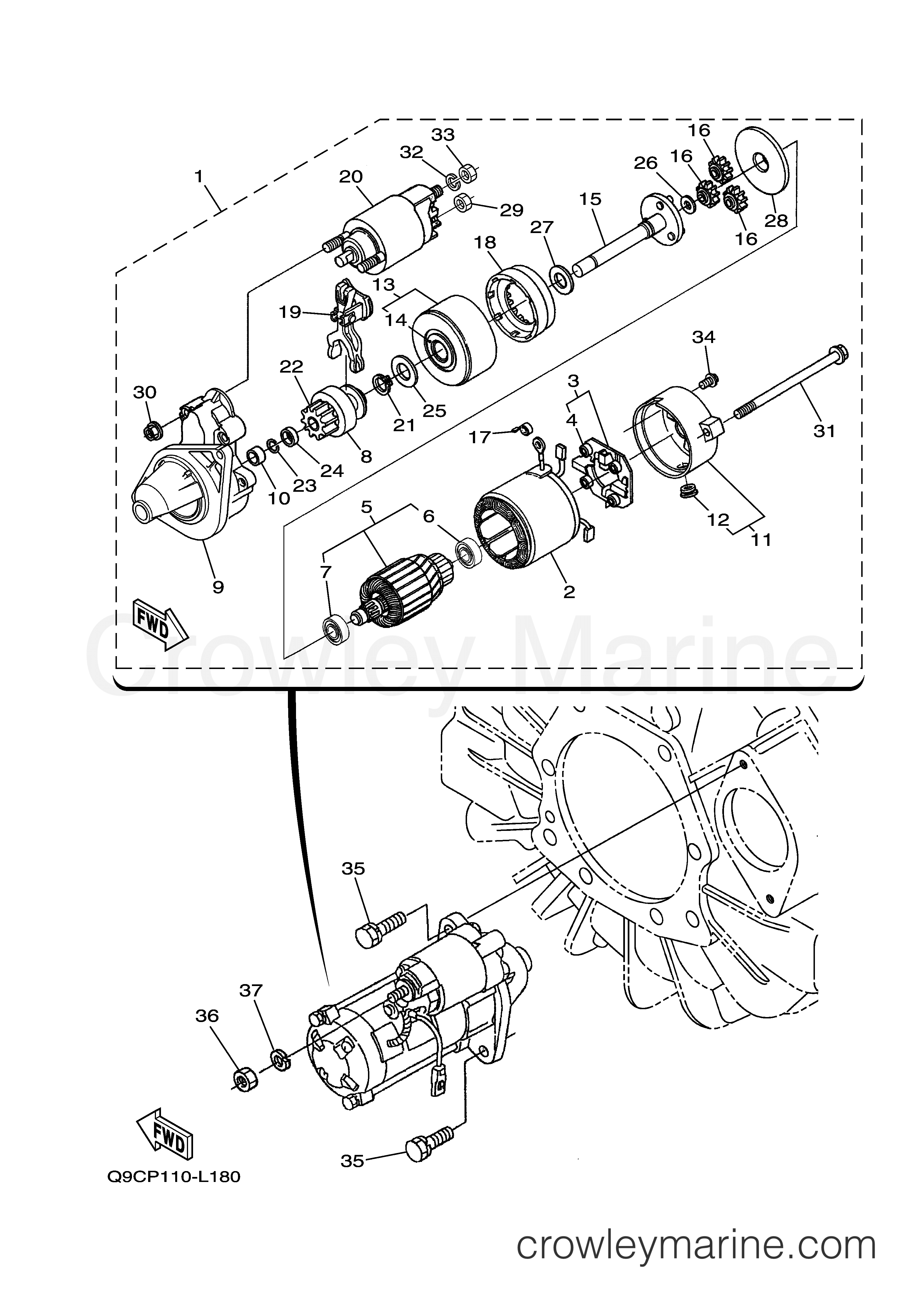

2012 Generator 11000 - EDL11000SDE STARTER diagram
-15%
$1314.94
You save $232.05
-15%
2
Yamaha Motors
Starter Yoke AssemblyYF6-A1003-11-60
Required: 1
..YOKE ASSY, STARTER
$346.79
You save $61.20
-15%
$112.19
You save $19.80
4
Yamaha Motors
....SPRING, BRUSHYF1-49586-34-80
Required: 4
....SPRING, BRUSH
Price unavailable
-15%
$688.49
You save $121.50
-15%
6
Yamaha Motors
Ball BearingYF1-55046-35-30
Required: 1
....BEARING, BALL
$56.09
You save $9.90
-15%
7
Yamaha Motors
Ball BearingYF1-55046-35-00
Required: 1
....BEARING, BALL
$56.09
You save $9.90
-15%
8
Yamaha Motors
Starboard Clutch Sub AssemblyYFK-35118-14-30
Required: 1
..CLUTCH SUB ASSY, STARTER
$265.19
You save $46.80
-15%
9
Yamaha Motors
Starter Housing AssemblyYF6-79803-11-80
Required: 1
..HOUSING ASSY, STARTER
$341.69
You save $60.30
-15%
10
Yamaha Motors
Bearing (Oil Less)YF6-A1003-11-90
Required: 1
..BEARING (OIL LESS)
$14.02
You save $2.47
-15%
11
Yamaha Motors
Commutato Flame AssemblyYFK-35118-14-50
Required: 1
..FLAME ASSY, COMMUTATOR
$201.44
You save $35.55
-15%
12
Yamaha Motors
Drain CoverYF1-21826-32-90
Required: 1
....COVER, WATER DRAIN
$22.09
You save $3.90
-15%
13
Yamaha Motors
Bearing Sub AssemblyYF1-49586-35-30
Required: 1
.BEARING SUB ASSY
$151.29
You save $26.70
14
Yamaha Motors
..BEARINGYF1-49586-30-60
Required: 1
..BEARING
Price unavailable
-15%
15
Yamaha Motors
Start Shaft Sub AssemblyYFK-35118-14-60
Required: 1
..SHAFT SUB ASSY, STARTER
$117.29
You save $20.70
-15%
16
Yamaha Motors
GearYF1-49586-32-60
Required: 3
.INTERNAL GEAR
$43.34
You save $7.65
-15%
17
Yamaha Motors
Brush SpringYF1-54016-33-90
Required: 4
..SPRING, BRUSH
$5.09
You save $0.90
-15%
$124.09
You save $21.90
-15%
19
Yamaha Motors
Starter Drive LeverYF1-49586-30-50
Required: 1
..LEVER, STARTER DRIVE
$50.99
You save $9.00
-15%
20
Yamaha Motors
Magnetic Switch AssemblyYF1-21816-30-80
Required: 1
..SWITCH ASSY, MAGNETIC
$404.59
You save $71.40
-15%
21
Yamaha Motors
Shaft Snap RingYF1-49586-31-70
Required: 1
..SNAP RING, SHAFT
$5.52
You save $0.97
22
Yamaha Motors
..GEAR, PINIONYF1-73116-32-80
Required: 1
..GEAR, PINION
Price unavailable
-15%
$9.77
You save $1.72
-15%
24
Yamaha Motors
Pinion Stop CollarYF1-38166-34-60
Required: 1
..COLLAR, PINION STOP
$19.54
You save $3.45
-15%
25
Yamaha Motors
Plate WasherYF1-49589-40-10
Required: 1
..WASHER, PLATE 1
$8.92
You save $1.57
-15%
26
Yamaha Motors
Plate WasherYF1-49589-40-20
Required: 1
..WASHER, PLATE 2
$5.09
You save $0.90
-15%
27
Yamaha Motors
Plate WasherYF1-49589-40-30
Required: 1
..WASHER, PLATE 3
$5.94
You save $1.05
-15%
$46.74
You save $8.25
-15%
29
Yamaha Motors
Hexagon NutYF1-66119-20-20
Required: 1
..NUT, HEXAGON
$6.37
You save $1.12
-15%
$2.63
You save $0.47
-15%
31
Yamaha Motors
Through BoltYF1-14606-33-20
Required: 2
..BOLT, THROUGH
$9.77
You save $1.72
-15%
32
Yamaha Motors
Spring WasherYF1-38019-41-00
Required: 1
..WASHER, SPRING (T=8)
$4.67
You save $0.82
-15%
33
Yamaha Motors
Hexagon NutYF1-96169-20-10
Required: 1
..NUT, HEXAGON
$5.09
You save $0.90
-15%
$6.37
You save $1.12
No longer availableSearch Nationwide Inventory
$1.65
-15%
37
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: YF0-45125-00-80
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
