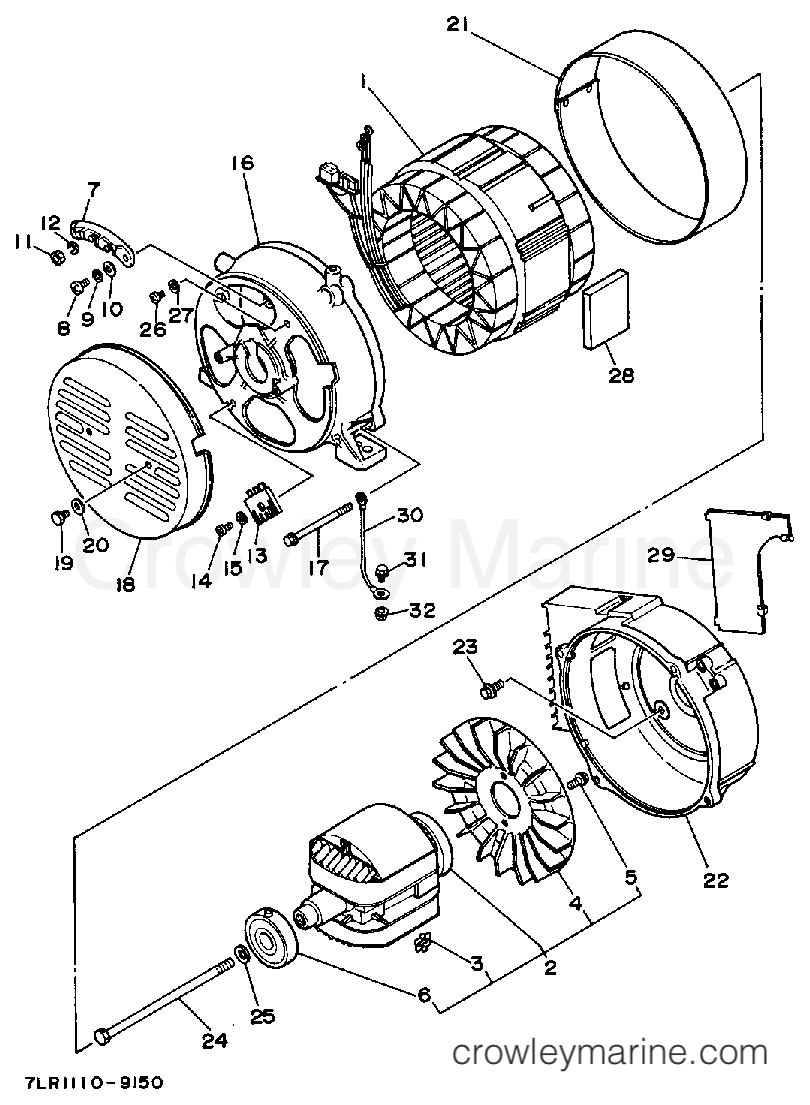

1998 Generator 3800 - EF3800DV GENERATOR diagram
-15%
1
Yamaha Motors
Stator Assembly7LR-87150-91-00
Required: 1
STATOR ASSEMBLY (120-240V/60HZ)
Supersedes: 7LR-87150-90-00
No longer availableSearch Nationwide Inventory
$702.94
You save $124.05
-15%
2
Yamaha Motors
Obsolete Yamaha Part7LR-87160-01-00
Required: 1
ROTOR ASSEMBLY
Supersedes: 7LR-87160-00-00
No longer availableSearch Nationwide Inventory
$444.54
You save $78.45
-15%
3
Yamaha Motors
Rectifier Assembly7FK-87115-01-00
Required: 4
.RECTIFIER ASSEMBLY 2
Supersedes: 7FK-87115-00-00
No longer availableSearch Nationwide Inventory
$15.29
You save $2.70
-15%
4
Yamaha Motors
GENERATOR FAN7LR-87172-01-00
Required: 1
.FAN, GENERATOR
Supersedes: 7LR-87172-00-00
No longer availableSearch Nationwide Inventory
$24.64
You save $4.35
-15%
5
Yamaha Motors
Screw With Washer90159-06056-00
Required: 2
.SCREW, WITH WASHER
$8.07
You save $1.42
-15%
$41.64
You save $7.35
-15%
7
Yamaha Motors
Terminal Sub Assembly7LR-87220-00-00
Required: 1
TERMINAL SUB ASSY 1
$35.69
You save $6.30
-20%
8
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.76
You save $0.94
-20%
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
$0.28
You save $0.07
-20%
10
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
$8.07
You save $1.42
-20%
12
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
.WASHER, SPRING
$0.28
You save $0.07
-15%
In stock
Only 1 remaining
$50.14
You save $8.85
-20%
14
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.76
You save $0.94
-20%
15
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
16
Yamaha Motors
Obsolete Yamaha Part7LR-87131-81-00
Required: 1
FRAME, REAR (7LR-87131-00-00)
Supersedes: 7LR-87131-80-00
No longer availableSearch Nationwide Inventory
$125.79
You save $22.20
-15%
17
Yamaha Motors
Flange Bolt95817-06090-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-06090-00
$3.27
You save $0.58
-15%
18
Yamaha Motors
READ END COVER7LR-87174-00-NJ
Required: 1
COVER, READ END
No longer availableSearch Nationwide Inventory
$47.59
You save $8.40
-15%
19
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97011-06010-00
$3.44
You save $0.61
-20%
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
21
Yamaha Motors
STATOR COVER7LR-87153-80-00
Required: 1
COVER, STATOR
Supersedes: 7LR-87153-00-00
No longer availableSearch Nationwide Inventory
$11.04
You save $1.95
-15%
No longer availableSearch Nationwide Inventory
$184.44
You save $32.55
-15%
23
Yamaha Motors
Flange Bolt 95821-08020-00
Required: 4
BOLT, FLANGE (95811-08020-00)
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
No longer availableSearch Nationwide Inventory
$11.04
You save $1.95
-20%
25
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$2.48
You save $0.62
-20%
26
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.52
You save $0.63
-20%
27
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-14%
$1.76
You save $0.29
-15%
No longer availableSearch Nationwide Inventory
$11.89
You save $2.10
-15%
30
Yamaha Motors
Lead Wire Assembly7LG-87139-00-00
Required: 1
LEAD WIRE ASSEMBLY 2
$6.37
You save $1.12
-15%
31
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-06010-00
$2.72
You save $0.48
-15%
32
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 1
NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.00
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
