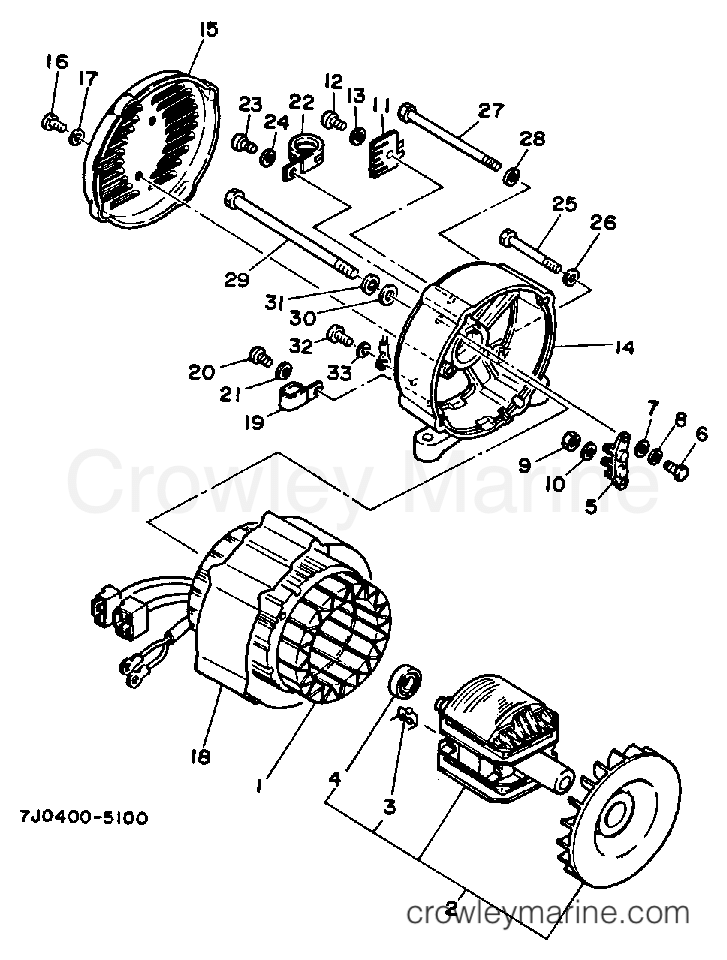

1998 Generator 2000 - EF2000 GENERATOR (800101~) diagram
-15%
1
Yamaha Motors
Stator Assembly7J0-87150-01-00
Required: 1
STATOR ASSEMBLY
No longer availableSearch Nationwide Inventory
$311.09
You save $54.90
-15%
2
Yamaha Motors
Obsolete Yamaha Part7J0-87160-01-00
Required: 1
ROTOR ASSEMBLY
Supersedes: 7GY-87160-00-00
No longer availableSearch Nationwide Inventory
$295.79
You save $52.20
-15%
3
Yamaha Motors
Rectifier Assembly75J-87115-01-00
Required: 4
.RECIFIER ASSEMBLY
Supersedes: 75J-87115-00-00
No longer availableSearch Nationwide Inventory
$11.47
You save $2.02
-15%
$49.29
You save $8.70
-15%
5
Yamaha Motors
Terminal Sub Assembly7NJ-87220-00-00
Required: 1
TERMINAL ASSEMBLYSUB-ASSEMBLY 1
Supersedes: 7H9-87220-00-00
$26.34
You save $4.65
-20%
6
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.76
You save $0.94
-20%
7
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-20%
8
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
$0.28
You save $0.07
-15%
$8.07
You save $1.42
-20%
10
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
$0.28
You save $0.07
-15%
In stock
Only 1 remaining
$50.14
You save $8.85
-20%
12
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.76
You save $0.94
-20%
13
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
14
Yamaha Motors
Rear Frame7N7-87131-01-00
Required: 1
FRAME, REAR
Supersedes: 7H9-87131-01-00
$232.89
You save $41.10
-15%
15
Yamaha Motors
READ END COVER7H9-87174-00-86
Required: 1
COVER, REAR END
No longer availableSearch Nationwide Inventory
$18.69
You save $3.30
-15%
16
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97011-06010-00
$3.44
You save $0.61
-20%
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
No longer availableSearch Nationwide Inventory
$10.19
You save $1.80
-15%
19
Yamaha Motors
Clamp90465-06376-00
Required: 1
CLAMP
Supersedes: 90465-08146-00
$8.92
You save $1.57
-20%
20
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.52
You save $0.63
-20%
21
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
22
Yamaha Motors
Clamp90462-10236-00
Required: 1
CLAMP
Supersedes: 90462-05061-00
$9.77
You save $1.72
-20%
23
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.52
You save $0.63
-20%
24
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
25
Yamaha Motors
HEXAGON BOLT97027-06075-00
Required: 2
BOLT, HEXAGON
Supersedes: 97021-06075-00
No longer availableSearch Nationwide Inventory
$2.38
You save $0.42
-20%
26
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.36
You save $0.59
-15%
27
Yamaha Motors
HEXAGON BOLT97027-06145-00
Required: 4
BOLT, HEXAGON
Supersedes: 97322-06145-00
No longer availableSearch Nationwide Inventory
$1.40
You save $0.25
-20%
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
-15%
29
Yamaha Motors
Hexagon bolt97322-08190-00
Required: 1
BOLT, HEXAGON
No longer availableSearch Nationwide Inventory
$3.66
You save $0.65
-20%
30
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$2.24
You save $0.56
-20%
31
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$4.48
You save $1.12
-20%
32
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.52
You save $0.63
-20%
33
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
