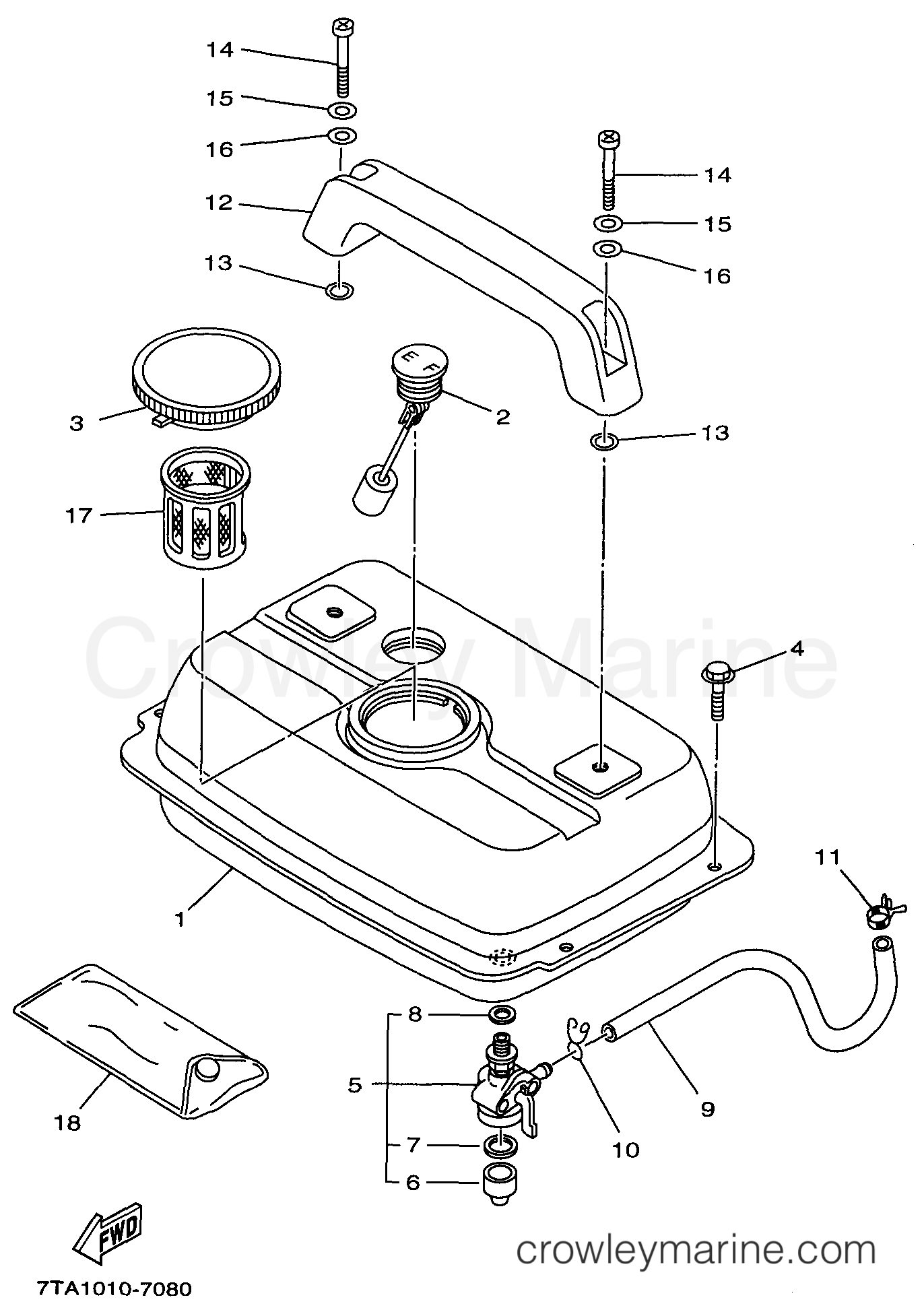

1997 Generator 1000 - EF1000AX FUEL TANK diagram
-15%
1
Yamaha Motors
Fuel Tank Complete7TA-24110-02-NJ
Required: 1
FUEL TANK COMP.
Supersedes: 7TA-24110-00-NJ
No longer availableSearch Nationwide Inventory
$158.94
You save $28.05
-15%
2
Yamaha Motors
Fuel Level Gauge Assembly7F7-85710-03-00
Required: 1
FUEL LEVEL GAUGE ASSY
Supersedes: 7F7-85710-02-00
No longer availableSearch Nationwide Inventory
$16.99
You save $3.00
-15%
3
Yamaha Motors
Cap Assembly7V5-24610-01-00
Required: 1
CAP ASSY
Supersedes: 74T-24610-00-00
$45.04
You save $7.95
-20%
4
Yamaha Motors
Flange Bolt95817-06012-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
-50%
5
Yamaha Motors
FUEL COCK ASSY 1Y06-02651-00-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 7RA-24500-00-00
In stock
Only 1 remaining
$28.50
You save $28.50
-15%
6
Yamaha Motors
Cup FilterY06-02458-00-00
Required: 1
.CUP, FILTER
Supersedes: 7J3-24521-00-00
$3.65
You save $0.65
-20%
7
Yamaha Motors
Tank Cap Gasket4X8-24565-10-00
Required: 1
.GASKET
Supersedes: 4X8-24565-00-00
In stock
Only 5 remaining
$8.79
You save $2.20
-15%
8
Yamaha Motors
Tank Cap Gasket7NJ-24532-10-00
Required: 1
.GASKET
Supersedes: 7NJ-24532-00-00
$1.57
You save $0.28
-15%
No longer availableSearch Nationwide Inventory
$4.25
You save $0.75
-15%
10
Yamaha Motors
Clip90467-090A2-00
Required: 1
.CLIP
Supersedes: 90467-09006-00
$4.04
You save $0.71
-15%
$1.96
You save $0.35
-15%
12
Yamaha Motors
Handle Assembly7TA-22830-00-00
Required: 1
HANDLE ASSEMBLY
No longer availableSearch Nationwide Inventory
$7.64
You save $1.35
-20%
13
Yamaha Motors
O-Ring93210-12790-00
Required: 2
.O-RING
Supersedes: 93210-12327-00
In stock
Only 4 remaining
$6.79
You save $1.70
-15%
14
Yamaha Motors
Pan Head Screw98507-06035-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
-15%
15
Yamaha Motors
Special Washer7G5-24186-00-00
Required: 2
WASHER, SPECIAL
$1.53
You save $0.27
-15%
$8.92
You save $1.57
-15%
$22.94
You save $4.05
-15%
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
