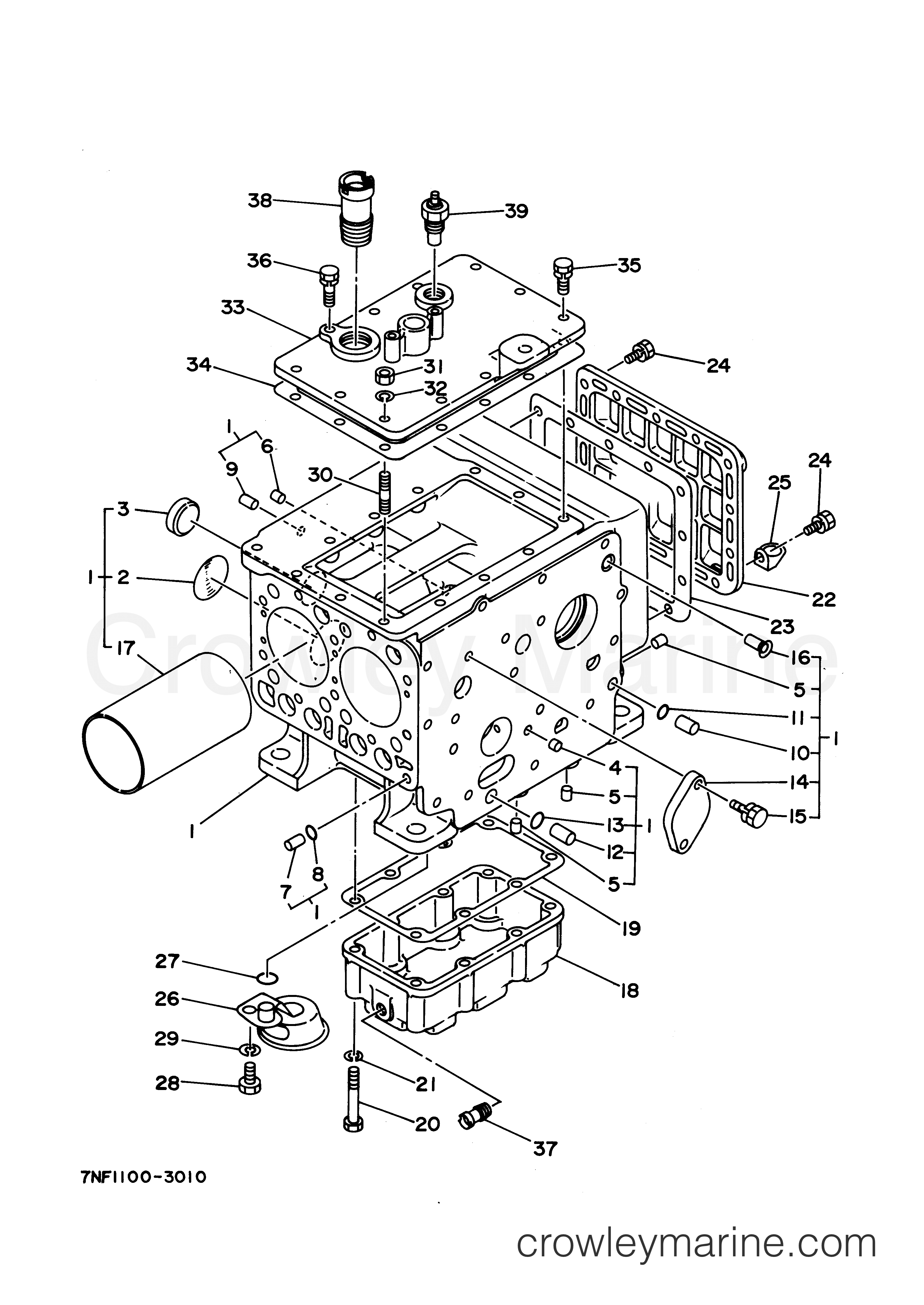

1995 Generator 6500 - EDL6500S2 CRANKCASE 1 diagram
-15%
1
Yamaha Motors
Crankcase AssemblyYF1-59030-10-10
Required: 1
CRANKCASE COMP. (EDL6500)
$4284.84
You save $756.15
2
Yamaha Motors
Expansion PlugYF0-63117-50-40
Required: 1
.PLUG, EXPANSION
$2.44
-15%
3
Yamaha Motors
Expansion PlugYF1-53219-62-60
Required: 1
.PLUG, EXPANSION
No longer availableSearch Nationwide Inventory
$9.77
You save $1.72
-15%
4
Yamaha Motors
Plug (Edl6500)YF1-59013-36-30
Required: 1
.PLUG (EDL6500)
$7.64
You save $1.35
-15%
5
Yamaha Motors
Pin PlugYF1-52213-36-30
Required: 5
.PLUG, PIN (EDL6500)
$9.77
You save $1.72
-15%
$14.87
You save $2.62
-15%
$7.64
You save $1.35
-15%
$9.77
You save $1.72
-15%
$3.50
You save $0.62
-15%
10
Yamaha Motors
Pipe Pin (Edl6500)YF1-26319-49-30
Required: 1
.PIN, PIPE (EDL6500)
$1.66
You save $0.29
-15%
11
Yamaha Motors
O-Ring (Edl6500)YF0-48111-01-00
Required: 1
.O-RING (EDL6500)
$2.80
You save $0.50
-15%
12
Yamaha Motors
Pipe Pin (Edl6500)YF1-52713-39-50
Required: 1
.PIN, PIPE (EDL6500)
$9.34
You save $1.65
-15%
13
Yamaha Motors
O-Ring (Edl6500)YF0-48111-01-20
Required: 1
.O-RING (EDL6500)
$2.80
You save $0.50
-15%
14
Yamaha Motors
Water (Edl6500) CoverYF1-52617-39-10
Required: 1
.COVER, WATER (EDL6500)
$72.24
You save $12.75
-15%
$2.89
You save $0.51
-15%
16
Yamaha Motors
Breather Inlet (Edl6500 PipeYF1-52710-57-60
Required: 1
.PIPE, BREATHER INLET (EDL6500
$11.04
You save $1.95
-15%
17
Yamaha Motors
Cylinder (Edl6500) LinerYF1-59010-23-10
Required: 2
.LINER, CYLINDER (EDL6500)
$294.09
You save $51.90
18
Yamaha Motors
Oil Pan (Edl6500)YF1-43840-16-10
Required: 1
OIL PAN (EDL6500)
$660.22
-15%
19
Yamaha Motors
Oil Pan Na (Edl6500) GasketYF1-92460-16-20
Required: 1
GASKET, OIL PAN NA (EDL6500)
$32.29
You save $5.70
-15%
20
Yamaha Motors
Bolt (Edl6500)YF0-10535-06-55
Required: 8
BOLT (EDL6500)
$1.53
You save $0.27
-15%
21
Yamaha Motors
Spring Washer YK0-45125-00-60
Required: 8
.WASHER, SPRING
Supersedes: YF0-45125-00-60
No longer availableSearch Nationwide Inventory
$2.93
You save $0.52
-15%
22
Yamaha Motors
Crankcase Cover (Edl6500)YF1-52710-47-10
Required: 1
COVER, CRANKCASE (EDL6500)
$206.54
You save $36.45
-15%
23
Yamaha Motors
Case Cover Na (Edl6500) GasketYF1-92460-47-20
Required: 1
GASKET, CASE COVER NA (EDL6500
$24.64
You save $4.35
-15%
$2.89
You save $0.51
-15%
25
Yamaha Motors
Pipe Clamp (Edl6500)YF1-52710-55-80
Required: 1
CLAMP, PIPE (EDL6500)
$11.04
You save $1.95
-15%
26
Yamaha Motors
Oil (Edl6500) FilterYF1-52713-21-10
Required: 1
FILTER, OIL (EDL6500)
No longer availableSearch Nationwide Inventory
$38.24
You save $6.75
-15%
27
Yamaha Motors
"O"-Ring/Seal (Swivel Bracket)YF0-48160-01-40
Required: 1
O-RING (EDL6500)
Supersedes: YF0-48110-01-20
No longer availableSearch Nationwide Inventory
$2.80
You save $0.50
-15%
$2.38
You save $0.42
-15%
29
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: YF0-45125-00-80
$8.07
You save $1.42
-15%
$2.25
You save $0.40
-20%
In stock
5+ in stock
$3.92
You save $0.98
-15%
32
Yamaha Motors
Spring Washer YK0-45125-00-60
Required: 2
.WASHER, SPRING
Supersedes: YF0-45125-00-60
No longer availableSearch Nationwide Inventory
$2.93
You save $0.52
-15%
33
Yamaha Motors
Water (Edl6500) CoverYF1-43847-22-90
Required: 1
COVER, WATER (EDL6500)
$271.99
You save $48.00
-15%
34
Yamaha Motors
Watercover Na (Edl6500 GasketYF1-43197-21-20
Required: 1
GASKET, WATERCOVER NA (EDL6500
$42.49
You save $7.50
-15%
$2.89
You save $0.51
-15%
37
Yamaha Motors
Water Return Pipe (EDL6500)YF1-53217-33-40
Required: 1
PIPE, WATER RETURN (EDL6500)
$18.69
You save $3.30
-15%
38
Yamaha Motors
Water PipeYF1-52617-28-80
Required: 1
PIPE, WATER (EDL6500)
$55.24
You save $9.75
-15%
39
Yamaha Motors
THERMO SWITCHYF1-55438-30-43
Required: 1
SWITCH, THERMO
Supersedes: YF1-55438-30-40
$126.64
You save $22.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
