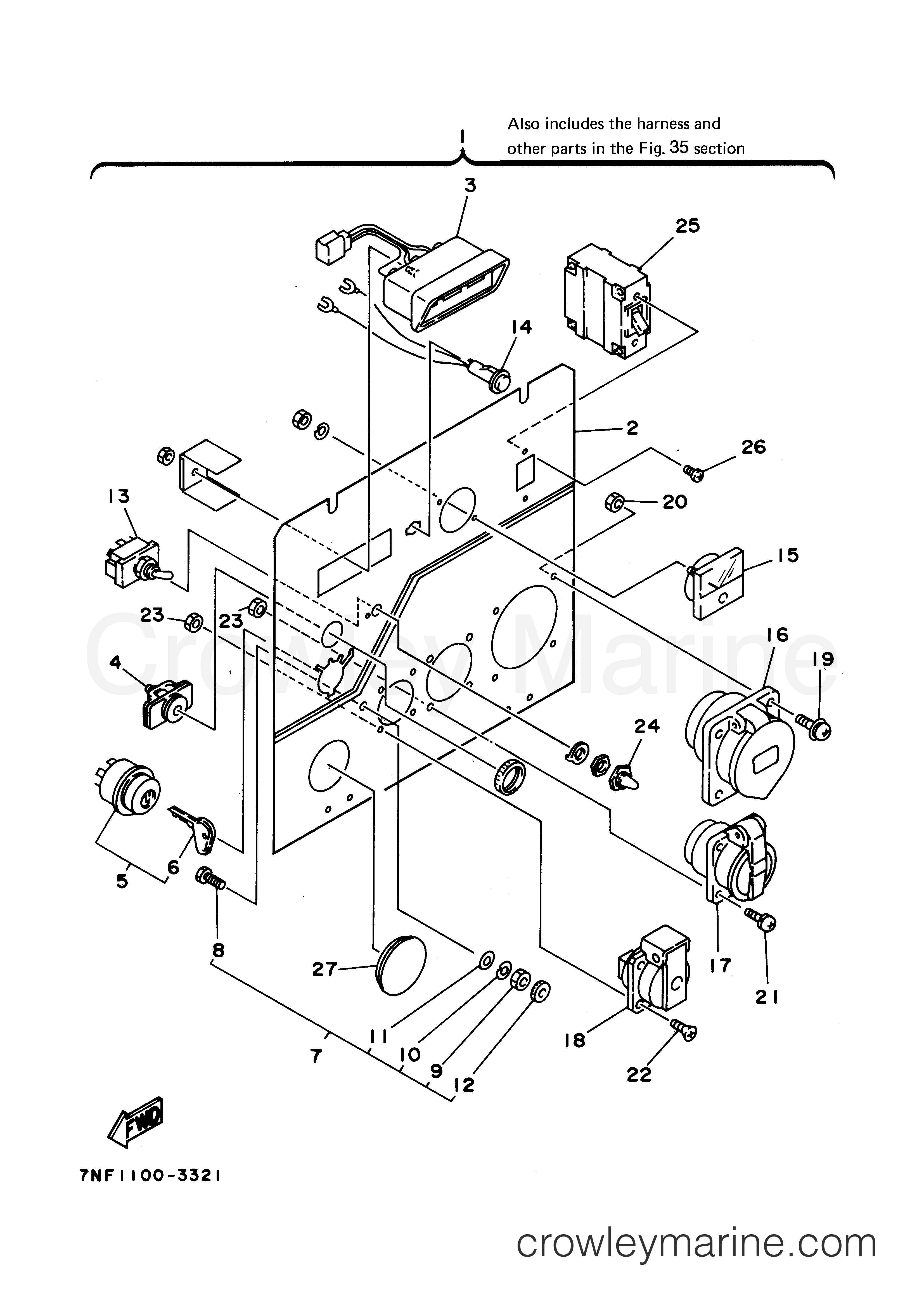

1995 Generator 6500 - EDL6500S2 CONTROL BOX 2 diagram
-15%
1
Yamaha Motors
Panel AssemblyYFG-31830-31-50
Required: 1
PANEL ASSY, FR-EDL6500
$1841.94
You save $325.05
-15%
1
Yamaha Motors
Panel Assembly (GER-EDL6500)YFG-31840-31-50
Required: 1
PANEL ASSY (GER-EDL6500)
No longer availableSearch Nationwide Inventory
$678.29
You save $119.70
-15%
2
Yamaha Motors
Panel Plate (FR-EDL6500)YFG-31830-32-10
Required: 1
.PLATE, PANEL FR-EDL6500
No longer availableSearch Nationwide Inventory
$180.19
You save $31.80
-15%
3
Yamaha Motors
Pilot Box (Edl6500)YF1-89610-34-20
Required: 1
.BOX, PILOT (EDL6500)
$138.54
You save $24.45
-15%
4
Yamaha Motors
IndicatorYF5-21704-18-50
Required: 1
.INDICATOR, GLOW PLUG (7NF1-5)
Supersedes: YF5-21704-18-52
$84.99
You save $15.00
-15%
5
Yamaha Motors
Starter Switch AssemblyYF1-53776-36-10
Required: 1
.STARTER SWITCH ASSY
No longer availableSearch Nationwide Inventory
$189.54
You save $33.45
-15%
6
Yamaha Motors
YF6-67115-52-40YF6-67115-51-44
Required: 2
..KEY, START
Supersedes: YF6-67115-51-40
No longer availableSearch Nationwide Inventory
$17.84
You save $3.15
-15%
7
Yamaha Motors
Terminal AssemblyYF1-89616-18-00
Required: 1
.TERMINAL ASSY, EARTH (EDL6500
$21.24
You save $3.75
-15%
8
Yamaha Motors
Terminal AssemblyYF1-89616-18-00
Required: 1
..BOLT, EARTH
Supersedes: YF1-89616-18-20
$21.24
You save $3.75
-15%
9
Yamaha Motors
NutYF1-89616-18-30
Required: 1
..NUT (EDL6500)
$6.37
You save $1.12
-15%
10
Yamaha Motors
Spring Washer YK0-45125-00-60
Required: 1
..WASHER, SPRING
Supersedes: YF0-45125-00-60
No longer availableSearch Nationwide Inventory
$2.93
You save $0.52
11
Yamaha Motors
Plate WasherYF0-40125-00-60
Required: 1
..WASHER, PLATE
$1.88
-15%
12
Yamaha Motors
NutYF1-89616-18-10
Required: 1
..NUT (EDL6500)
$13.17
You save $2.32
-15%
13
Yamaha Motors
Toggle SwitchYF1-89616-05-10
Required: 1
.SWITCH, TOGGLE (EDL6500)
No longer availableSearch Nationwide Inventory
$61.19
You save $10.80
-15%
14
Yamaha Motors
Pilot (Edl6500) Lamp AssemblyYF1-89746-12-10
Required: 1
.LAMP ASSY, PILOT (EDL6500)
$50.14
You save $8.85
-15%
15
Yamaha Motors
Meter, V (300V) (EDL6500)YF1-89740-35-50
Required: 1
.METER, V (300V) (EDL6500)
$286.44
You save $50.55
-15%
16
Yamaha Motors
Socket (EDL6500)YF1-89080-34-00
Required: 1
.SOCKET (EDL6500)
No longer availableSearch Nationwide Inventory
$22.07
You save $3.90
-15%
17
Yamaha Motors
(Uk) Receptacle, (Fr) Edl650YF1-89710-32-50
Required: 1
.RECEPTACLE, (UK), (FR) EDL650
$220.14
You save $38.85
-15%
18
Yamaha Motors
Receptacle (Edl6500)YF1-86830-32-50
Required: 1
.RECEPTACLE (EDL6500)
$276.24
You save $48.75
-15%
$197.19
You save $34.80
-15%
19
Yamaha Motors
Screw (Edl6500)YF0-30565-05-16
Required: 4
.SCREW (EDL6500)
$0.17
You save $0.03
-15%
No longer availableSearch Nationwide Inventory
$1.19
You save $0.21
21
Yamaha Motors
Screw With Washer (Edl6500)YF1-89619-64-10
Required: 4
.SCREW, WITH WASHER (EDL6500)
$2.26
-15%
22
Yamaha Motors
ScrewYF0-30565-04-10
Required: 4
.SCREW, CSK-HD (EDL6500)
$0.13
You save $0.02
-15%
23
Yamaha Motors
NUT (6TA)95307-04600-00
Required: 8
.NUT
Supersedes: YF0-20545-00-40
$8.07
You save $1.42
-15%
24
Yamaha Motors
Water Proof (Edl6500) CapYF1-89616-05-20
Required: 1
.CAP, WATER PROOF (EDL6500)
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
25
Yamaha Motors
Breaker (285A)YF1-89740-35-10
Required: 1
.BREAKER (285A)
$305.99
You save $54.00
26
Yamaha Motors
Screw With WasherYF1-89619-64-00
Required: 2
.SCREW, WITH WASHER (EDL6500)
$2.26
-15%
27
Yamaha Motors
Rubber (Edl6500) CoverYF3-63308-74-70
Required: 1
.COVER, RUBBER (EDL6500)
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
