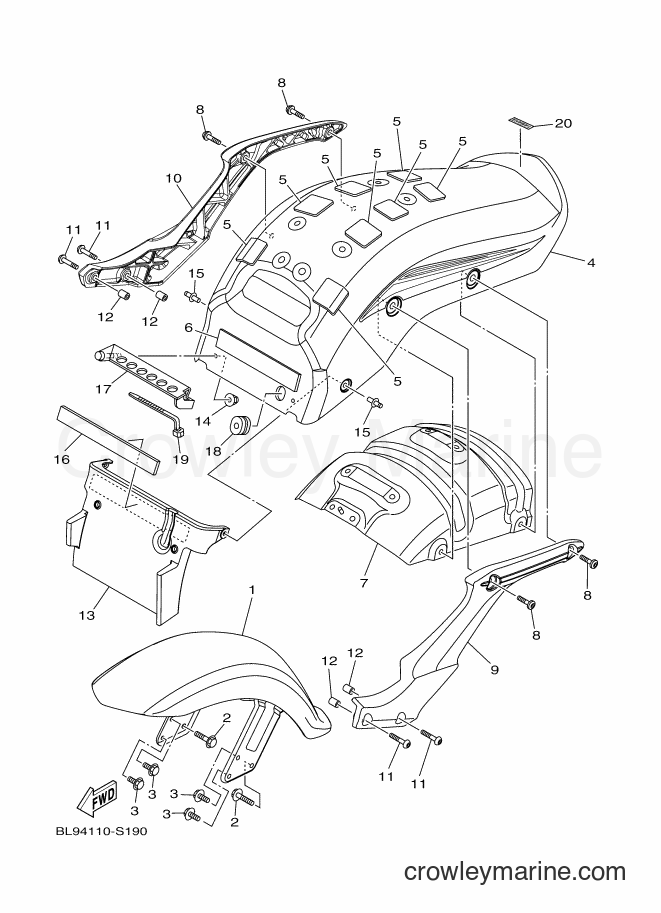

2017 Cruiser XV1900CU - XV1900CU (BL96) [010] FENDER diagram
![Yamaha Motors XV1900CU (BL96) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/AZGen6Tt.png)
-15%
1
Yamaha Motors
Front Fender Comp5C7-YK215-02-P1
Required: 1
FRONT FENDER COMP.
$885.69
You save $156.30
-15%
2
Yamaha Motors
Bolt with Washer90119-08111-00
Required: 2
BOLT, WITH WASHER
$7.22
You save $1.27
-15%
3
Yamaha Motors
Bolt with Washer90119-08110-00
Required: 4
BOLT, WITH WASHER
$7.22
You save $1.27
-15%
4
Yamaha Motors
Rear Fender Component5C7-Y2161-V0-P1
Required: 1
REAR FENDER COMP.
$922.24
You save $162.75
-15%
$11.04
You save $1.95
-15%
$7.22
You save $1.27
-15%
$247.34
You save $43.65
-15%
8
Yamaha Motors
HEX SOCKET BOLT90110-08071-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
$8.92
You save $1.57
-15%
9
Yamaha Motors
FENDER STAY5C7-21613-20-00
Required: 1
STAY, FENDER 1
$504.89
You save $89.10
-15%
10
Yamaha Motors
Fender Stay5C7-21614-20-00
Required: 1
STAY, FENDER 2
$504.89
You save $89.10
-50%
11
Yamaha Motors
BUTTON HEAD BOLT92014-10050-00
Required: 4
BOLT, BUTTON HEAD
In stock
Only 2 remaining
$4.75
You save $4.75
-20%
In stock
Only 2 remaining
$3.04
You save $0.76
-15%
$39.09
You save $6.90
-2%
14
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95602-06200-00
$2.89
-15%
$8.07
You save $1.42
-15%
$1.96
You save $0.35
-15%
17
Yamaha Motors
Rear Stay Bracket5C7-21688-00-00
Required: 1
BRACKET, REAR STAY
$33.99
You save $6.00
-15%
$7.22
You save $1.27
-15%
$8.07
You save $1.42
-15%
20
Yamaha Motors
YAMAHA EMBLEM3WF-2153E-71-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 1D6-2153E-00-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
