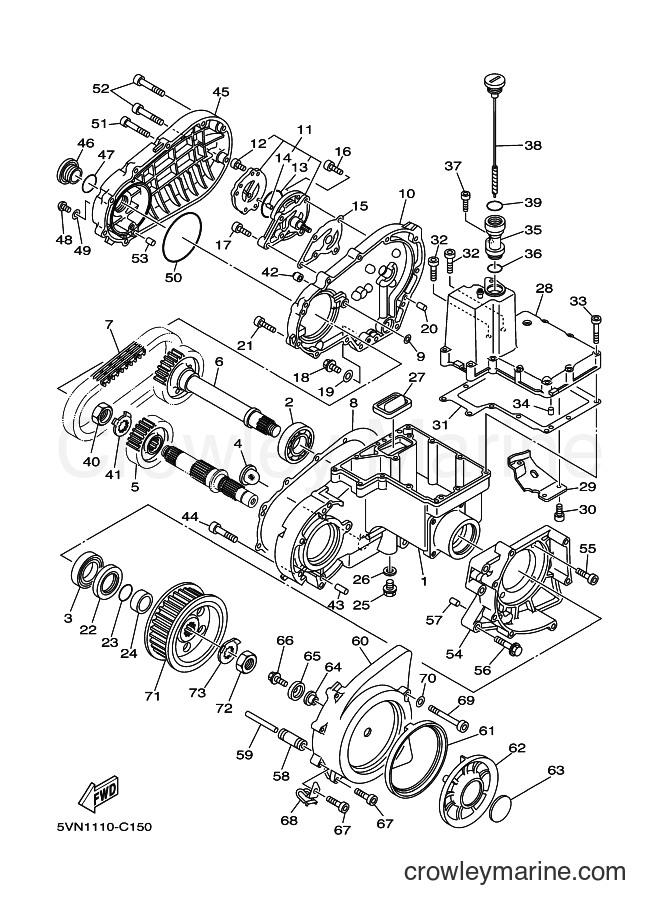

2004 Cruiser XV1700A - XV1700A (5VN6) [010] MIDDLE DRIVE GEAR diagram
![Yamaha Motors XV1700A (5VN6) [010] - MIDDLE DRIVE GEAR](https://cdn.crowleymarine.com/yamaha/jwyyVqjf.png)
-15%
1
Yamaha Motors
TRANSFER CASE5MB-17541-11-00
Required: 1
CASE, TRANSFER 1
Supersedes: 5MB-17541-10-00
No longer availableSearch Nationwide Inventory
$554.19
You save $97.80
-15%
No longer availableSearch Nationwide Inventory
$44.19
You save $7.80
-15%
3
Yamaha Motors
93306-20622-0093306-20618-00
Required: 1
BEARING
Supersedes: 93306-20601-00
No longer availableSearch Nationwide Inventory
$44.19
You save $7.80
-15%
$15.29
You save $2.70
-15%
5
Yamaha Motors
CHAIN DRIVE SPROCKET4WM-17682-00-00
Required: 1
SPROCKET, CHAIN DRIVE
$113.89
You save $20.10
-15%
6
Yamaha Motors
MIDDLE DRIVEN SHAFT4WM-1755A-00-00
Required: 1
MIDDLE DRIVEN SHAFT ASSY
$498.09
You save $87.90
-15%
7
Yamaha Motors
CHAIN, PRIMARY4WM-16139-01-00
Required: 1
CHAIN, PRIMARY
Supersedes: 4WM-16139-00-00
$266.89
You save $47.10
-15%
$35.69
You save $6.30
-15%
$5.09
You save $0.90
-15%
10
Yamaha Motors
TRANSFER CASE5PX-17542-00-00
Required: 1
CASE, TRANSFER 2
$360.39
You save $63.60
-15%
$265.19
You save $46.80
-15%
12
Yamaha Motors
BOLT91317-06014-00
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06004-00
$8.92
You save $1.57
-20%
In stock
Only 1 remaining
$9.19
You save $2.30
-50%
In stock
Only 5 remaining
$5.25
You save $5.25
-15%
15
Yamaha Motors
Pump Case Gasket4WM-13116-00-00
Required: 1
GASKET, PUMP CASE
$6.37
You save $1.12
-15%
16
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06047-00
In stock
Only 1 remaining
$5.52
You save $0.97
-50%
17
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06039-00
In stock
Only 1 remaining
$1.33
You save $1.33
-15%
$8.92
You save $1.57
-15%
$6.37
You save $1.12
-20%
In stock
Only 1 remaining
$2.12
You save $0.53
-15%
21
Yamaha Motors
BOLT (3DM)91314-06025-00
Required: 6
BOLT, HEXAGON SOCKET HEAD
$8.07
You save $1.42
-15%
$25.49
You save $4.50
-15%
$9.77
You save $1.72
-15%
$29.74
You save $5.25
25
Yamaha Motors
Straight Screw Plug90340-14132-00
Required: 1
PLUG, STRAIGHT SCREW
$3.33
-20%
In stock
5+ in stock
$2.54
You save $0.63
-15%
$14.44
You save $2.55
-15%
$261.79
You save $46.20
-15%
$43.34
You save $7.65
-15%
30
Yamaha Motors
BOLT91317-06014-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06004-00
$8.92
You save $1.57
-15%
$27.19
You save $4.80
-15%
32
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 2
BOLT,HEX.SOCKET HEAD
Supersedes: 91317-06030-00
In stock
Only 1 remaining
$5.52
You save $0.97
-15%
33
Yamaha Motors
Bolt (4MY)91317-06040-00
Required: 13
BOLT,HEX.SOCKET HEAD
$3.44
You save $0.61
-20%
In stock
Only 1 remaining
$2.12
You save $0.53
-15%
$64.59
You save $11.40
-15%
$8.07
You save $1.42
-50%
37
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 1
BOLT,HEX.SOCKET HEAD
In stock
Only 1 remaining
$1.33
You save $1.33
-15%
38
Yamaha Motors
Oil Level Plug4WM-15362-00-00
Required: 1
PLUG, OIL LEVEL
$27.19
You save $4.80
-15%
39
Yamaha Motors
O-Ring93210-27778-00
Required: 1
O-RING
Supersedes: 93210-27370-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
$24.64
You save $4.35
-15%
41
Yamaha Motors
Lock Washer90215-26241-00
Required: 1
WASHER, LOCK
Supersedes: 90215-30233-00
$14.44
You save $2.55
-15%
$8.92
You save $1.57
-20%
In stock
Only 1 remaining
$2.12
You save $0.53
-15%
44
Yamaha Motors
Socket Bolt91314-08050-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
$3.53
You save $0.62
-15%
$368.89
You save $65.10
-20%
46
Yamaha Motors
Straight Screw Plug90340-32116-00
Required: 1
PLUG, STRAIGHT SCREW
Supersedes: 90340-32140-00
$12.39
You save $3.10
-15%
In stock
Only 1 remaining
$7.22
You save $1.27
-50%
48
Yamaha Motors
Button head bolt92014-06010-00
Required: 1
BOLT, BUTTON HEAD
In stock
Only 2 remaining
$3.50
You save $3.50
-15%
$8.07
You save $1.42
-15%
$10.62
You save $1.87
-15%
51
Yamaha Motors
Bolt (3JP)91314-06050-00
Required: 5
BOLT, HEXAGON SOCKET HEAD
$8.07
You save $1.42
-15%
52
Yamaha Motors
BOLT91314-08055-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$4.12
You save $0.73
-20%
In stock
Only 1 remaining
$2.12
You save $0.53
-15%
$169.14
You save $29.85
-15%
55
Yamaha Motors
Socket Bolt91317-08030-00
Required: 4
BOLT,HEX.SOCKET HEAD
$8.07
You save $1.42
-15%
$7.22
You save $1.27
-15%
No longer availableSearch Nationwide Inventory
$7.64
You save $1.35
-15%
$8.07
You save $1.42
-15%
59
Yamaha Motors
Dowel Pin93606-76002-00
Required: 2
PIN, DOWEL
Supersedes: 93606-76259-00
$6.37
You save $1.12
-15%
No longer availableSearch Nationwide Inventory
$238.84
You save $42.15
-15%
$14.87
You save $2.62
-15%
$181.89
You save $32.10
-15%
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
$9.34
You save $1.65
-15%
$8.92
You save $1.57
-20%
66
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
Only 2 remaining
$1.56
You save $0.39
-50%
67
Yamaha Motors
Socket Heat Bolt91314-06035-00
Required: 5
BOLT, HEXAGON SOCKET HEAD
In stock
Only 4 remaining
$4.75
You save $4.75
-15%
$7.22
You save $1.27
-15%
69
Yamaha Motors
HEXAGON SOCKET BOLT90110-08002-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$8.07
You save $1.42
-15%
70
Yamaha Motors
Plain Washer90201-08035-00
Required: 2
WASHER, PLATE
$3.36
You save $0.59
-15%
$283.04
You save $49.95
-15%
$24.64
You save $4.35
-15%
73
Yamaha Motors
Lock Washer90215-26241-00
Required: 1
WASHER, LOCK
Supersedes: 90215-30233-00
$14.44
You save $2.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
