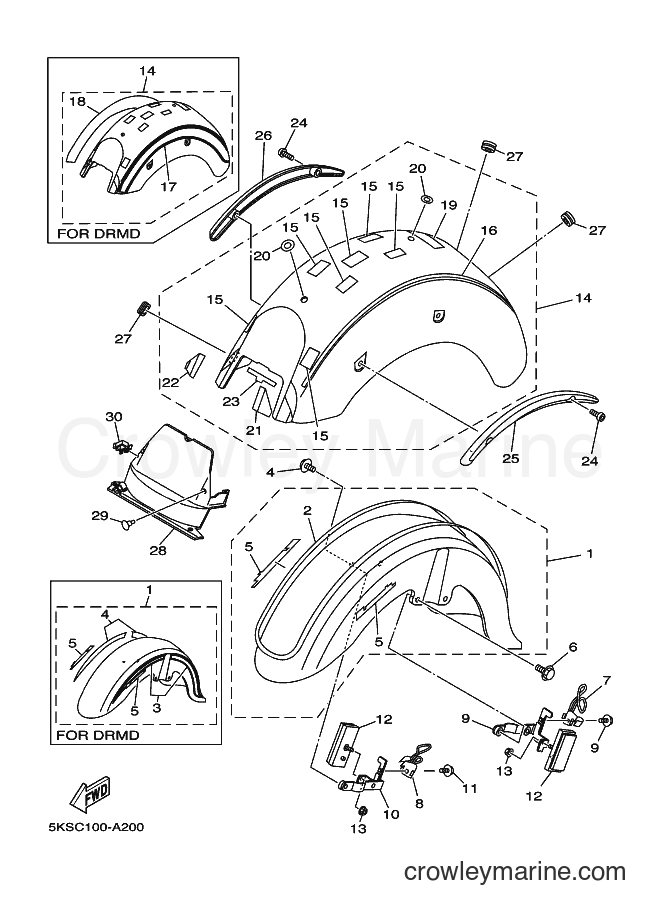

2002 Cruiser XVS1100A - XVS1100A (5KSE) [010] FENDER diagram
![Yamaha Motors XVS1100A (5KSE) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/rcBDaOE8.png)
-15%
1
Yamaha Motors
Front Fender Assembly5KS-Y2151-V1-33
Required: 1
FRONT FENDER COMP.
Supersedes: 5KS-Y2151-90-33
No longer availableSearch Nationwide Inventory
$595.84
You save $105.15
1
Yamaha Motors
FRONT FENDER COMP.5KS-Y2151-C0-6X
Required: 1
FRONT FENDER COMP.
Price unavailable
-15%
2
Yamaha Motors
Front Fender Graphic Set5KS-21570-80-00
Required: 1
. GRAPHIC SET, FRONT FENDER
$202.29
You save $35.70
2
Yamaha Motors
. GRAPHIC SET, FRONT FENDER5KS-21570-B0
Required: 1
. GRAPHIC SET, FRONT FENDER
Price unavailable
-15%
4
Yamaha Motors
GRAPHIC SET 25KS-2159B-00-00
Required: 1
. GRAPHIC SET 2
No longer availableSearch Nationwide Inventory
$98.59
You save $17.40
-15%
5
Yamaha Motors
EMBLEM5BN-21565-01-00
Required: 2
. EMBLEM, 2
Supersedes: 5BN-21565-00-00
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-15%
7
Yamaha Motors
WIRE HOLDER5KS-21597-00-00
Required: 1
HOLDER,WIRE 1
$27.19
You save $4.80
-15%
8
Yamaha Motors
Wire Holder5KS-21598-00-00
Required: 1
HOLDER, WIRE 2
$31.44
You save $5.55
-15%
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
No longer availableSearch Nationwide Inventory
$49.29
You save $8.70
-15%
11
Yamaha Motors
Flange Bolt95817-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 1 remaining
$4.67
You save $0.82
-15%
$26.34
You save $4.65
-15%
$8.07
You save $1.42
14
Yamaha Motors
REAR FENDER COMP.5KS-Y2161-C1-6X
Required: 1
REAR FENDER COMP.
Price unavailable
-15%
14
Yamaha Motors
Rear Fender Component5KS-Y216R-0M-33
Required: 1
REAR FENDER COMP.
Supersedes: 5KS-Y2161-91-33
No longer availableSearch Nationwide Inventory
$805.79
You save $142.20
-15%
$16.14
You save $2.85
-15%
16
Yamaha Motors
REAR FENDER GRAPHIC SET5KS-2165A-80-00
Required: 1
. GRAPHIC SET,REAR FENDER
No longer availableSearch Nationwide Inventory
$96.04
You save $16.95
16
Yamaha Motors
. GRAPHIC SET,REAR FENDER5KS-2165A-B0
Required: 1
. GRAPHIC SET,REAR FENDER
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$158.09
You save $27.90
-15%
19
Yamaha Motors
YAMAHA EMBLEM99247-00080-00
Required: 1
. EMBLEM, YAMAHA
$14.87
You save $2.62
-15%
$6.37
You save $1.12
-15%
$8.49
You save $1.50
-15%
No longer availableSearch Nationwide Inventory
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$8.92
You save $1.57
-15%
24
Yamaha Motors
Button head bolt92014-08025-00
Required: 4
BOLT, BUTTON HEAD
$7.22
You save $1.27
-15%
$155.54
You save $27.45
-15%
$169.14
You save $29.85
-15%
$8.07
You save $1.42
-15%
$33.99
You save $6.00
-15%
$8.07
You save $1.42
-15%
$11.47
You save $2.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
