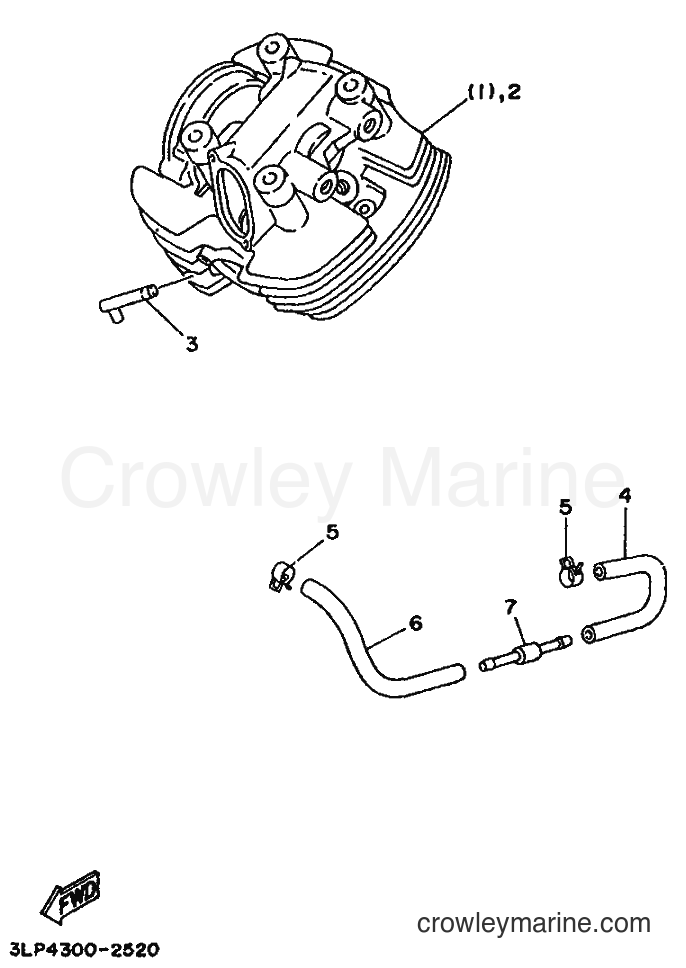

1996 Cruiser XV1100 - XV1100 (3EF7) [010] ALTERNATE FOR ENGINE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors XV1100 (3EF7) [010] - ALTERNATE FOR ENGINE

Change View:

Yamaha Motors

CYLINDER HEAD ASSY1TF-11102-01

Required: 1

CYLINDER HEAD ASSY

Price unavailable

-15%

Yamaha Motors

1TA-11102-02-001TA-11102-01-00

Required: 2

CYLINDER HEAD ASSY

No longer availableSearch Nationwide Inventory

~~$909.99~~

$773.49

You save $136.50

-15%

PIPE 3

No longer availableSearch Nationwide Inventory

~~$73.99~~

$62.89

You save $11.10

More details

-15%

Yamaha Motors

HOSE,VAC.SENSING 51TA-13534-00-00

Required: 1

HOSE, VACUUM SENSING 5

No longer availableSearch Nationwide Inventory

~~$16.49~~

$14.02

You save $2.47

More details

-15%

Yamaha Motors

Scissor Clip90467-08092-00

Required: 2

CLIP

~~$10.49~~

$8.92

You save $1.57

More details

-15%

Yamaha Motors

HOSE,VACUUM SENSNG1TA-13535-00-00

Required: 1

HOSE, VACUUM SENSING 5

No longer availableSearch Nationwide Inventory

~~$15.99~~

$13.59

You save $2.40

More details

-15%

Yamaha Motors

Nozzle41R-14489-00-00

Required: 1

NOZZLE

~~$10.99~~

$9.34

You save $1.65

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
