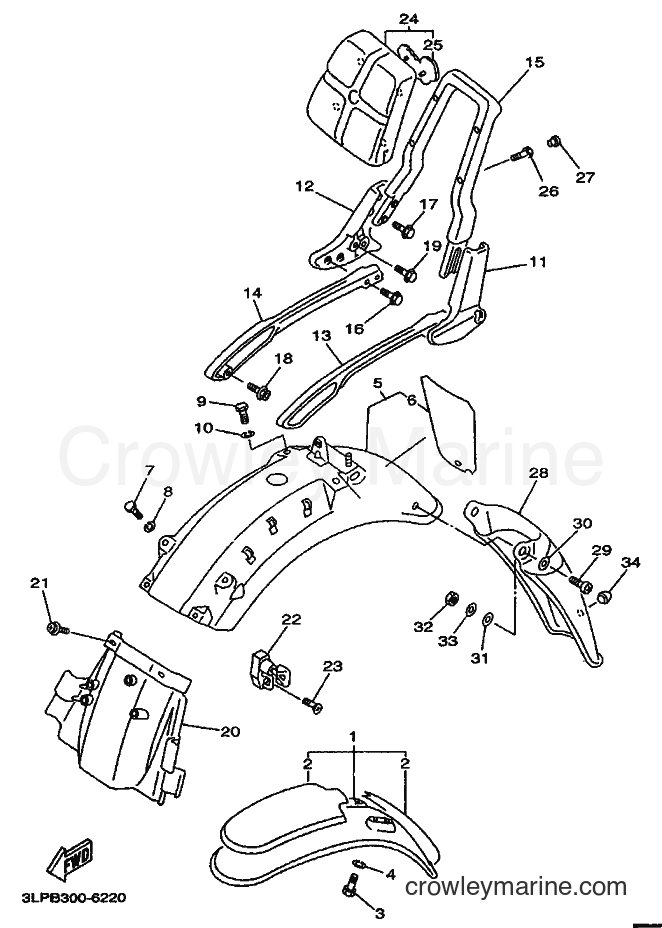

1996 Cruiser XV1100 - XV1100 (3LPB) [040] FENDER diagram
![Yamaha Motors XV1100 (3LPB) [040] - FENDER](https://cdn.crowleymarine.com/yamaha/pPADTP3R.png)
1
Yamaha Motors
FRONT FENDER COMP.1MY-Y2151-50-JW
Required: 1
FRONT FENDER COMP.
Price unavailable
1
Yamaha Motors
FRONT FENDER COMP.1MY-21510-90-PA
Required: 1
FRONT FENDER COMP.
Price unavailable
2
Yamaha Motors
. GRAPHIC SET, FRONT FENDER4PW-21570-01
Required: 1
. GRAPHIC SET, FRONT FENDER
Price unavailable
-15%
2
Yamaha Motors
Front Fender Graphic Set3JK-21570-21-00
Required: 1
. GRAPHIC SET, FRONT FENDER
No longer availableSearch Nationwide Inventory
$73.94
You save $13.05
-15%
No longer availableSearch Nationwide Inventory
$0.72
You save $0.13
-50%
4
Yamaha Motors
Spring Washer92907-06100-00
Required: 4
WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
5
Yamaha Motors
REAR FENDER COMP.3EF-Y2161-C0-P1
Required: 1
REAR FENDER COMP.
Price unavailable
5
Yamaha Motors
REAR FENDER COMP.3EF-Y2161-80-JW
Required: 1
REAR FENDER COMP.
Price unavailable
-15%
6
Yamaha Motors
GRAPHIC,REAR FENDR3JK-21675-10-00
Required: 1
. GRAPHIC, REAR FENDER
No longer availableSearch Nationwide Inventory
$75.64
You save $13.35
6
Yamaha Motors
. GRAPHIC, REAR FENDER4PW-21675-00
Required: 1
. GRAPHIC, REAR FENDER
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$0.72
You save $0.13
-50%
8
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
-15%
No longer availableSearch Nationwide Inventory
$0.76
You save $0.14
-15%
10
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$209.09
You save $36.90
-15%
No longer availableSearch Nationwide Inventory
$187.84
You save $33.15
-15%
No longer availableSearch Nationwide Inventory
$145.34
You save $25.65
-15%
No longer availableSearch Nationwide Inventory
$162.34
You save $28.65
-15%
No longer availableSearch Nationwide Inventory
$277.94
You save $49.05
-15%
16
Yamaha Motors
95817-06016-0090105-06010-00
Required: 4
BOLT, FLANGE
Supersedes: 95817-06016-00
$1.49
You save $0.26
-20%
17
Yamaha Motors
Flange Bolt95817-06016-00
Required: 4
BOLT, FLANGE
Supersedes: 95827-06016-00
In stock
Only 3 remaining
$1.56
You save $0.39
-15%
No longer availableSearch Nationwide Inventory
$28.89
You save $5.10
-15%
19
Yamaha Motors
Flange Bolt90105-10153-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-10217-00
$5.52
You save $0.97
-15%
No longer availableSearch Nationwide Inventory
$60.34
You save $10.65
-15%
21
Yamaha Motors
Screw with Washer90159-06128-00
Required: 2
SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.34
You save $0.41
-15%
22
Yamaha Motors
Helmet Hanger Assembly26H-21308-01-00
Required: 1
HELMET HANGER ASSY
Supersedes: 26H-21308-00-00
$76.49
You save $13.50
-15%
$8.92
You save $1.57
-15%
No longer availableSearch Nationwide Inventory
$140.24
You save $24.75
-15%
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
$3.32
You save $0.58
-15%
$10.62
You save $1.87
28
Yamaha Motors
FLAP3EF-21621-00
Required: 1
FLAP
Price unavailable
-12%
29
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
$3.60
You save $0.50
-15%
30
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
-15%
31
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
In stock
Only 4 remaining
$1.44
You save $0.26
-15%
$3.27
You save $0.58
-15%
$8.07
You save $1.42
-15%
34
Yamaha Motors
Plug90338-07018-00
Required: 1
DAMPER 2
Supersedes: 4G0-21639-00-00
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
