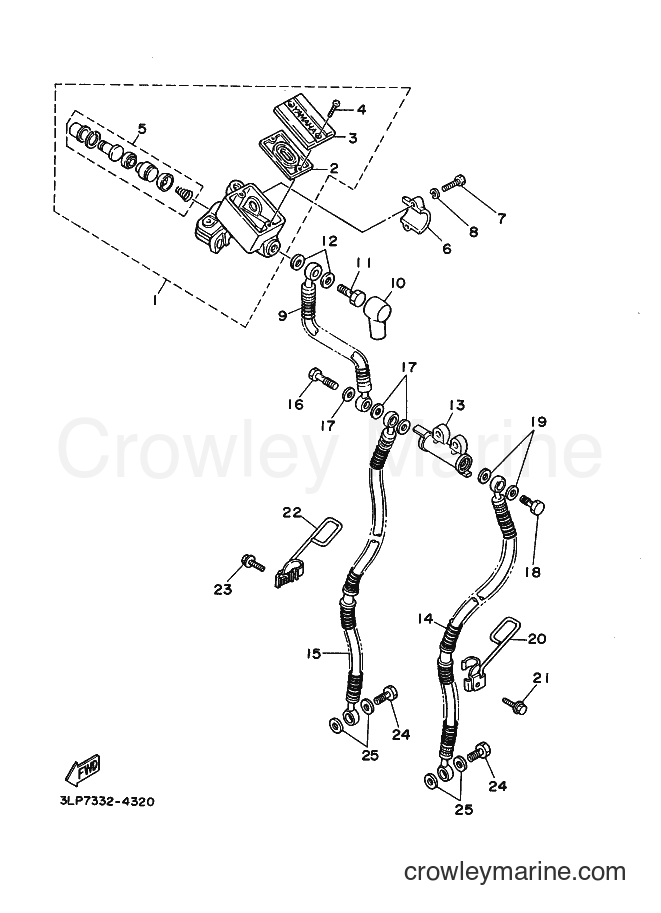

1996 Cruiser XV1100 - XV1100 (3LPB) [080] FRONT MASTER CYLINDER diagram
![Yamaha Motors XV1100 (3LPB) [080] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/3ju2M52l.png)
-15%
1
Yamaha Motors
MSTR. CYL. SUB ASY3SD-25870-20-00
Required: 1
MASTER CYLINDER ASSY
Supersedes: 22R-25850-02-00
No longer availableSearch Nationwide Inventory
$448.79
You save $79.20
-15%
2
Yamaha Motors
Reservoir Diaphragm4HM-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
Supersedes: 4K0-25854-00-00
$33.14
You save $5.85
-15%
3
Yamaha Motors
Reservoir Cap3GM-25852-02-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3GM-25852-01-00
$53.54
You save $9.45
-15%
4
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
$1.57
You save $0.28
-15%
5
Yamaha Motors
Master Cylinder Kit4K0-W0041-50-00
Required: 1
. CYLINDER KIT, MASTER
$84.99
You save $15.00
-15%
6
Yamaha Motors
Master Cylinder Bracket4L0-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$30.59
You save $5.40
-50%
7
Yamaha Motors
BOLT97315-06025-00
Required: 2
BOLT
Supersedes: 97017-06025-00
In stock
Only 3 remaining
$0.56
You save $0.56
-15%
8
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
9
Yamaha Motors
HOSE, BRAKE 13LP-25872-11
Required: 1
HOSE, BRAKE 1
Price unavailable
-15%
10
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
Supersedes: 4L0-25862-00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
$10.62
You save $1.87
-15%
12
Yamaha Motors
Plate Washer90201-10118-00
Required: 2
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
-15%
No longer availableSearch Nationwide Inventory
$70.54
You save $12.45
14
Yamaha Motors
HOSE, BRAKE 23LP-25873-10
Required: 1
HOSE, BRAKE 2
Price unavailable
15
Yamaha Motors
HOSE, BRAKE3LP-25874-10
Required: 1
HOSE, BRAKE
Price unavailable
-15%
16
Yamaha Motors
Union Bolt90401-10038-00
Required: 1
BOLT, UNION
Supersedes: 90401-10160-00
$11.47
You save $2.02
-15%
17
Yamaha Motors
Plate Washer90201-10118-00
Required: 3
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
-15%
$10.62
You save $1.87
-15%
19
Yamaha Motors
Plate Washer90201-10118-00
Required: 2
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
-15%
20
Yamaha Motors
BRAKE HOSE HOLDER55R-25875-00-00
Required: 1
HOLDER, BRAKE HOSE 1
No longer availableSearch Nationwide Inventory
$26.34
You save $4.65
-15%
$5.52
You save $0.97
-15%
22
Yamaha Motors
Brake Hose Holder 255R-25876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
$23.79
You save $4.20
-15%
$5.52
You save $0.97
-15%
$10.62
You save $1.87
-15%
25
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.23
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
