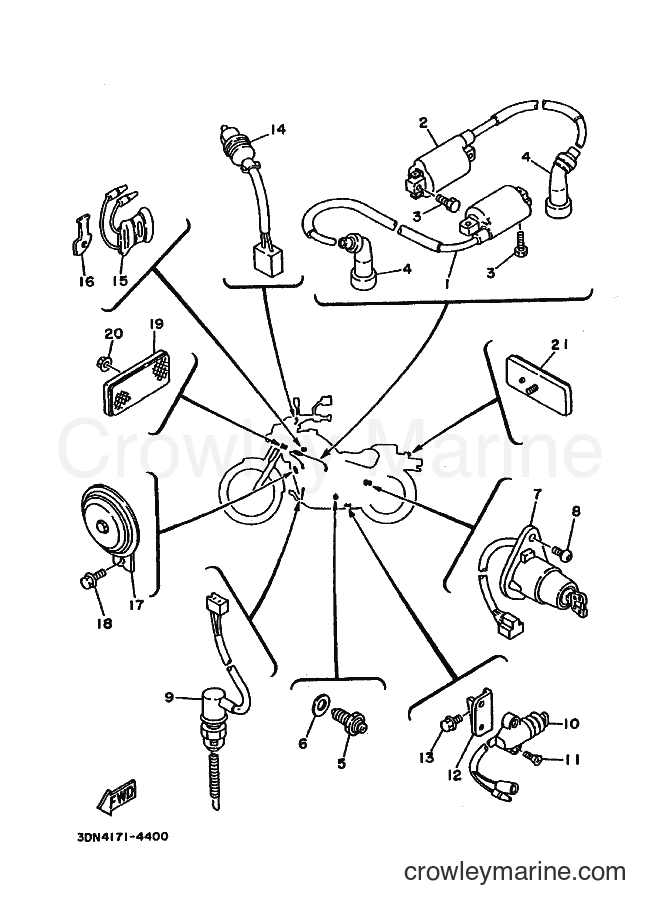

1994 Cruiser XV250 - XV250 (3DN4) [010] ELECTRICAL 2 diagram
![Yamaha Motors XV250 (3DN4) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/KeLbbrjA.png)
-15%
1
Yamaha Motors
Ignition Coil Assembly4DN-82320-01-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2UJ-82310-00-00
$102.84
You save $18.15
-15%
2
Yamaha Motors
Ignition Coil Assembly4DN-82320-01-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2UJ-82320-00-00
$102.84
You save $18.15
-15%
3
Yamaha Motors
Bolt (3JK)97027-05020-00
Required: 4
BOLT
Supersedes: 97021-05020-00
$3.02
You save $0.53
-15%
4
Yamaha Motors
Plug Cap Assembly3NS-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 1UY-82370-20-00
$35.69
You save $6.30
-15%
5
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 2H7-82540-00-00
$35.69
You save $6.30
-15%
In stock
Only 3 remaining
$5.09
You save $0.90
-15%
7
Yamaha Motors
Main Switch Assembly2UJ-82510-00-00
Required: 1
MAIN SWITCH ASSY
No longer availableSearch Nationwide Inventory
$203.99
You save $36.00
-15%
$8.92
You save $1.57
-15%
9
Yamaha Motors
STOP SWITCH ASSEMBLY3XV-82530-01-00
Required: 1
STOP SWITCH ASSY
No longer availableSearch Nationwide Inventory
$40.79
You save $7.20
-15%
10
Yamaha Motors
SIDE STAND SWITCH5Y1-82566-00-00
Required: 1
SWITCH, SIDE STAND
$122.39
You save $21.60
-15%
11
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, COUNTERSUNK
Supersedes: 90152-05021-00
$6.79
You save $1.20
-15%
$15.29
You save $2.70
-15%
In stock
Only 1 remaining
$4.67
You save $0.82
-15%
14
Yamaha Motors
STOP SWITCH ASSEMBLY2UJ-83980-00-00
Required: 1
FRONT STOP SWITCH ASSY
$40.79
You save $7.20
15
Yamaha Motors
THERMO SWITCH ASSY3LS-82560-00
Required: 1
THERMO SWITCH ASSY
Price unavailable
-15%
$4.67
You save $0.82
-15%
17
Yamaha Motors
Horn4LR-83371-11-00
Required: 1
HORN
Supersedes: 2KR-83371-00-00
$45.89
You save $8.10
-15%
18
Yamaha Motors
95817-06010-0095827-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95826-06010-00
No longer availableSearch Nationwide Inventory
$1.53
You save $0.27
-15%
$26.34
You save $4.65
-15%
No longer availableSearch Nationwide Inventory
$2.34
You save $0.41
-15%
21
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
$16.14
You save $2.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
