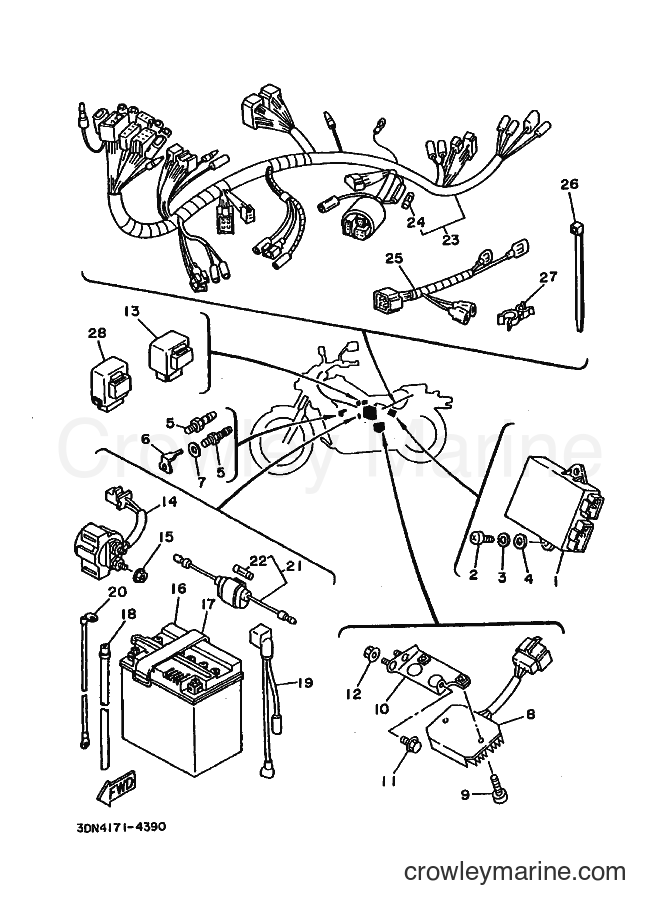

1994 Cruiser XV250 - XV250 (3DN4) [010] ELECTRICAL 1 diagram
![Yamaha Motors XV250 (3DN4) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/39sJiJ5B.png)
-15%
1
Yamaha Motors
Ignitor Unit Assembly2UJ-82305-00-00
Required: 1
IGNITOR UNIT ASSY
$395.24
You save $69.75
-20%
2
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 1
SCREW, PAN HEAD
In stock
5+ in stock
$2.76
You save $0.69
-20%
In stock
5+ in stock
$2.84
You save $0.71
-20%
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.36
You save $0.59
5
Yamaha Motors
HEATER ASSY3LS-83790-00
Required: 2
HEATER ASSY
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$1.00
You save $0.18
-15%
7
Yamaha Motors
Plain Washer90201-08016-00
Required: 2
WASHER, PLATE
Supersedes: 90201-081K4-00
$8.07
You save $1.42
-15%
8
Yamaha Motors
Rectifier/Regulator Assembly5A8-81960-A0-00
Required: 1
RECTIFIER & REGULATOR ASSY
No longer availableSearch Nationwide Inventory
$164.89
You save $29.10
-15%
No longer availableSearch Nationwide Inventory
$3.91
You save $0.69
-15%
10
Yamaha Motors
BRACKET,REGULATOR3DM-21287-00-00
Required: 1
BRACKET, REGULATOR
No longer availableSearch Nationwide Inventory
$20.39
You save $3.60
-15%
11
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-06010-00
$2.72
You save $0.48
-15%
12
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 95706-06500-00
$0.85
You save $0.15
-15%
13
Yamaha Motors
RELAY ASSY2UJ-81950-02-00
Required: 1
RELAY ASSY
Supersedes: 2UJ-81950-00-00
$61.19
You save $10.80
-15%
14
Yamaha Motors
Starter Switch Assembly36Y-81940-00-00
Required: 1
STARTER RELAY ASSY
$141.94
You save $25.05
-15%
No longer availableSearch Nationwide Inventory
$2.00
You save $0.35
16
Yamaha Motors
BATTERY ASSY (G.S. GM10-3A-2)3DN-82110-00
Required: 1
BATTERY ASSY (G.S. GM10-3A-2)
Price unavailable
-15%
$21.24
You save $3.75
-15%
18
Yamaha Motors
Hose90445-08719-00
Required: 1
HOSE
Supersedes: 90445-08248-00
No longer availableSearch Nationwide Inventory
$9.34
You save $1.65
-15%
19
Yamaha Motors
Plus Lead Wire2UJ-82115-01-00
Required: 1
WIRE, PLUS LEAD
Supersedes: 2UJ-82115-00-00
$28.04
You save $4.95
-15%
20
Yamaha Motors
MINUS LEAD WIRE2UJ-82116-00-00
Required: 1
WIRE, MINUS LEAD
$12.32
You save $2.17
-15%
21
Yamaha Motors
Obsolete Yamaha Part2UJ-82150-02-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 2UJ-82150-01-00
$15.29
You save $2.70
-15%
22
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
.FUSE (20A)
Supersedes: 148-82151-00-00
$7.22
You save $1.27
23
Yamaha Motors
WIRE HARNESS ASSY3DN-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-20%
In stock
Only 1 remaining
$6.79
You save $1.70
-15%
25
Yamaha Motors
Sub Lead Wire2UJ-82509-01-00
Required: 1
WIRE, SUB LEAD
Supersedes: 2UJ-82509-00-00
$15.29
You save $2.70
-15%
26
Yamaha Motors
Band1UA-82591-00-00
Required: 2
BAND
Supersedes: 12R-82591-00-00
$4.67
You save $0.82
-15%
$4.12
You save $0.73
-15%
28
Yamaha Motors
Flasher Relay Assembly2UJ-83350-01-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 2UJ-83350-00-00
$127.49
You save $22.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
