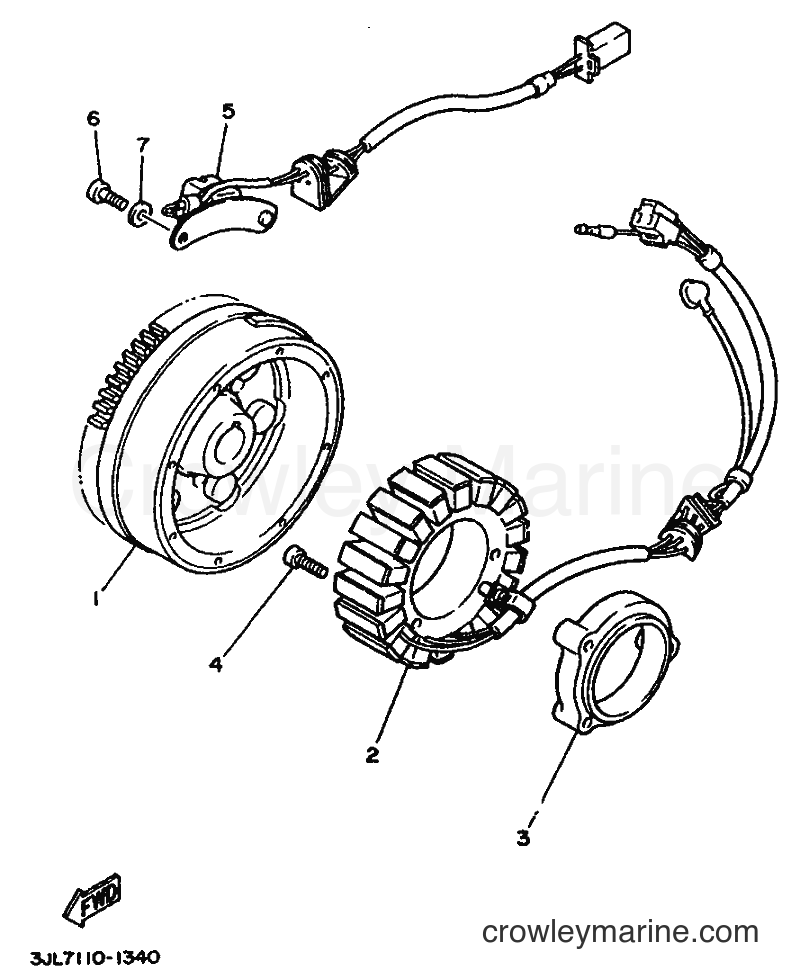

1993 Cruiser XV750 - XV750 (3JLF) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XV750 (3JLF) [010] - GENERATOR
Change View:
-15%
STATOR ASSEMBLY
2
Yamaha Motors
STATOR ASSEMBLY4PP-81410-00-00
Required: 1
STATOR ASSY
Supersedes: 1RM-81410-20-00
Cross Ship
Leaves in 2-5 days
$511.99
$435.19
You save $76.80
More details
-15%
Bolt (4MY)
4
Yamaha Motors
Bolt (4MY)91317-06050-00
Required: 3
BOLT
Supersedes: 91316-06050-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
PICK-UP ASSY
5
Yamaha Motors
PICK-UP ASSY3JL-81670-20
Required: 1
PICK-UP ASSY
Price unavailable
-15%
Bolt (4MY)
6
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT
Supersedes: 91316-06016-00
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
-15%
Plate Washer
7
Yamaha Motors
Plate Washer90201-06045-00
Required: 2
WASHER, plate
Supersedes: 90201-06643-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
