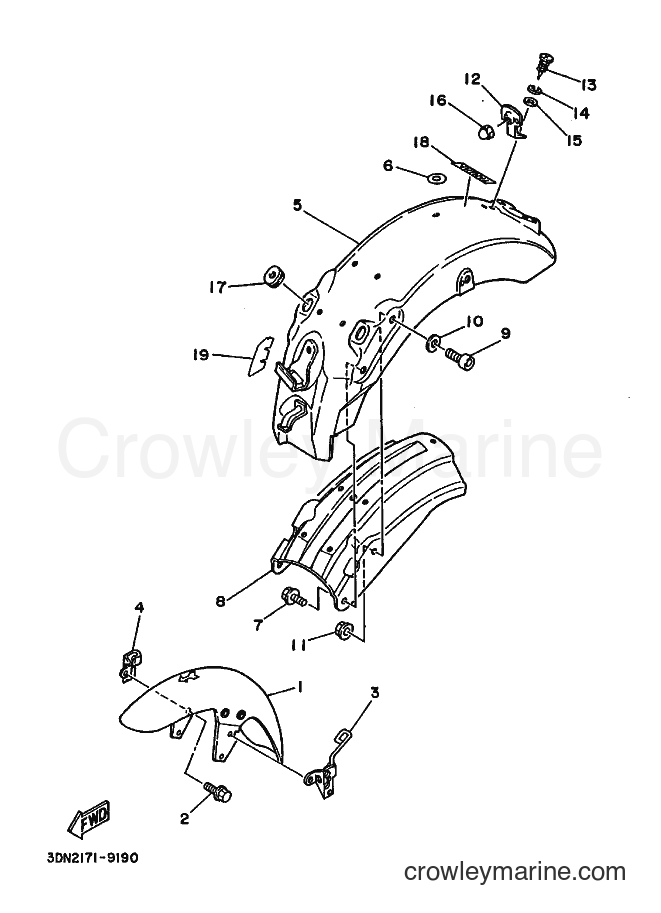

1989 Cruiser XV250 - XV250 (3DN2) [010] FENDER diagram
![Yamaha Motors XV250 (3DN2) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/ElwfLPLs.png)
-15%
1
Yamaha Motors
Front Fender2UJ-21510-00-TH
Required: 1
FRONT FENDER COMP.
No longer availableSearch Nationwide Inventory
$103.69
You save $18.30
-15%
2
Yamaha Motors
BOLT95023-08012-00
Required: 4
BOLT, flange
Supersedes: 95021-08012-00
No longer availableSearch Nationwide Inventory
$2.29
You save $0.41
-15%
3
Yamaha Motors
Wire Holder2GV-21597-00-00
Required: 1
HOLDER, wire 1
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-15%
4
Yamaha Motors
Wire Holder2GV-21598-00-00
Required: 1
HOLDER, wire 2
No longer availableSearch Nationwide Inventory
$22.09
You save $3.90
-15%
5
Yamaha Motors
REAR FENDER2UJ-21610-00-TH
Required: 1
REAR FENDER COMP.
No longer availableSearch Nationwide Inventory
$190.39
You save $33.60
-15%
$1.49
You save $0.26
-15%
No longer availableSearch Nationwide Inventory
$2.21
You save $0.39
-15%
8
Yamaha Motors
REINF. COMP.2UJ-21670-30-00
Required: 1
REINF. COMP.
Supersedes: 2UJ-21670-00-00
No longer availableSearch Nationwide Inventory
$67.99
You save $12.00
-15%
9
Yamaha Motors
BOLT91317-10035-00
Required: 2
BOLT
Supersedes: 91316-10035-00
$7.22
You save $1.27
-15%
10
Yamaha Motors
Plate Washer92907-10600-00
Required: 2
WASHER
Supersedes: 92906-10600-00
$8.07
You save $1.42
No longer availableSearch Nationwide Inventory
$2.03
-15%
12
Yamaha Motors
REFLECTOR BRACKET2UJ-21641-00-00
Required: 1
BRACKET, reflector
$7.22
You save $1.27
-20%
13
Yamaha Motors
Screw97885-05010-00
Required: 1
SCREW, pan head
Supersedes: 98501-05010-00
In stock
Only 2 remaining
$2.52
You save $0.63
-20%
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
WASHER, spring
$0.28
You save $0.07
-20%
15
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, plate
Supersedes: 92901-05600-00
In stock
Only 4 remaining
$0.64
You save $0.16
-15%
16
Yamaha Motors
Nut95307-05800-00
Required: 1
NUT, cap
Supersedes: 95306-05800-00
$7.22
You save $1.27
-15%
17
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-15061-00
Required: 2
GROMMET
Supersedes: 90480-01502-00
$8.07
You save $1.42
-15%
18
Yamaha Motors
99245-00080-0099235-00080-00
Required: 1
EMBLEM, yamaha
Supersedes: 99235-00020-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
19
Yamaha Motors
Seal 32UJ-2173M-01-00
Required: 1
SEAL 3
Supersedes: 2UJ-2173M-00-00
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
