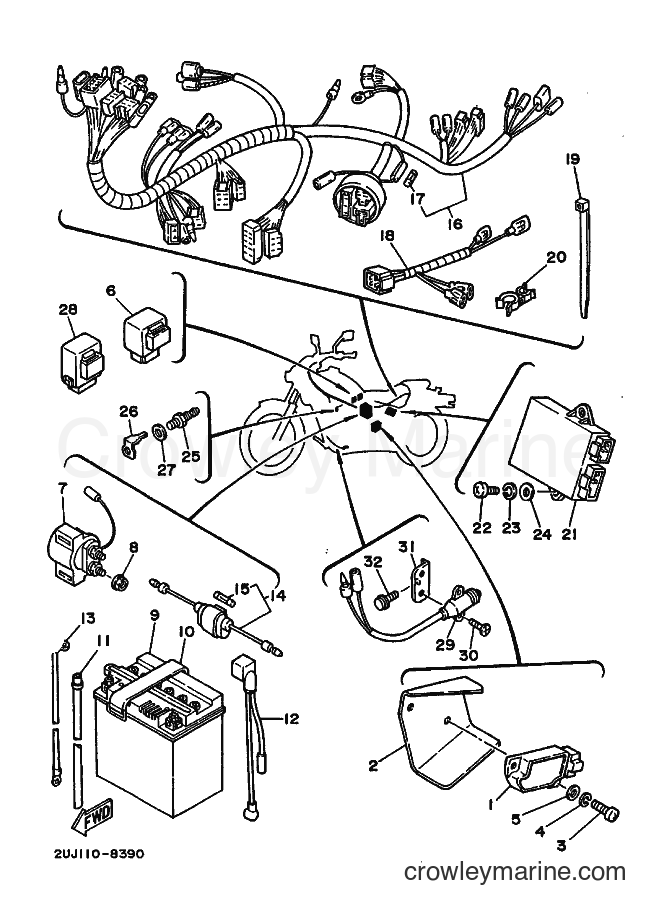

1989 Cruiser XV250 - XV250 (3DN2) [010] ELECTRICAL 1 diagram
![Yamaha Motors XV250 (3DN2) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/3izEDBKO.png)
-15%
1
Yamaha Motors
Rectifier & Regulator Assembly47X-81960-A3-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 47X-81960-A1-00
$175.94
You save $31.05
-15%
2
Yamaha Motors
PLATE,RECTIFR FTNG2UJ-81975-00-00
Required: 1
PLATE, rectifier fitting
No longer availableSearch Nationwide Inventory
$19.54
You save $3.45
-20%
3
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, pan head
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$7.59
You save $1.90
-20%
4
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-20%
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, plate
In stock
5+ in stock
$2.36
You save $0.59
-15%
6
Yamaha Motors
RELAY ASSY2UJ-81950-02-00
Required: 1
RELAY ASSY
Supersedes: 2UJ-81950-00-00
$61.19
You save $10.80
-15%
7
Yamaha Motors
Starter Switch Assembly36Y-81940-00-00
Required: 1
STARTER SWITCH ASSY
$141.94
You save $25.05
-15%
No longer availableSearch Nationwide Inventory
$2.00
You save $0.35
9
Yamaha Motors
BATTERY ASSY3DN-82110-00
Required: 1
BATTERY ASSY
Price unavailable
-15%
$21.24
You save $3.75
-15%
11
Yamaha Motors
Hose90445-08719-00
Required: 1
HOSE
Supersedes: 90445-08248-00
No longer availableSearch Nationwide Inventory
$9.34
You save $1.65
-15%
12
Yamaha Motors
Plus Lead Wire2UJ-82115-01-00
Required: 1
WIRE, plus lead
Supersedes: 2UJ-82115-00-00
$28.04
You save $4.95
-15%
13
Yamaha Motors
MINUS LEAD WIRE2UJ-82116-00-00
Required: 1
WIRE, minus lead
$12.32
You save $2.17
-15%
14
Yamaha Motors
Fuse Holder Assembly2UJ-82150-01-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 2UJ-82150-00-00
No longer availableSearch Nationwide Inventory
$8.49
You save $1.50
-15%
15
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
.FUSE (20A)
Supersedes: 148-82151-00-00
$7.22
You save $1.27
-15%
16
Yamaha Motors
WIRE,HARNESS2UJ-82590-01-00
Required: 1
WIRE HARNESS ASSY
Supersedes: 2UJ-82590-00-00
No longer availableSearch Nationwide Inventory
$127.49
You save $22.50
-20%
In stock
Only 1 remaining
$6.79
You save $1.70
-15%
18
Yamaha Motors
Sub Lead Wire2UJ-82509-01-00
Required: 1
WIRE, sub lead
Supersedes: 2UJ-82509-00-00
$15.29
You save $2.70
-15%
19
Yamaha Motors
Band1UA-82591-00-00
Required: 2
CLAMP
Supersedes: 12R-82591-00-00
$4.67
You save $0.82
-15%
$4.12
You save $0.73
-15%
21
Yamaha Motors
Ignitor Unit Assembly2UJ-82305-00-00
Required: 1
IGNITOR UNIT ASSY
$395.24
You save $69.75
-20%
22
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 1
SCREW, pan head
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.76
You save $0.69
-20%
23
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.84
You save $0.71
-20%
24
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, plate
In stock
5+ in stock
$2.36
You save $0.59
-15%
No longer availableSearch Nationwide Inventory
$22.09
You save $3.90
-15%
No longer availableSearch Nationwide Inventory
$1.00
You save $0.18
-15%
27
Yamaha Motors
Plain Washer90201-08016-00
Required: 2
WASHER, plate
Supersedes: 90201-081K4-00
$8.07
You save $1.42
-15%
28
Yamaha Motors
Flasher Relay Assembly2UJ-83350-01-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 2UJ-83350-00-00
$127.49
You save $22.50
-15%
29
Yamaha Motors
SIDE STAND SWITCH5Y1-82566-00-00
Required: 1
SWITCH, side stand
$122.39
You save $21.60
-15%
30
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, countersunk
Supersedes: 90152-05021-00
$6.79
You save $1.20
-15%
$15.29
You save $2.70
-15%
32
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, flange
Supersedes: 91026-06010-00
In stock
Only 1 remaining
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
