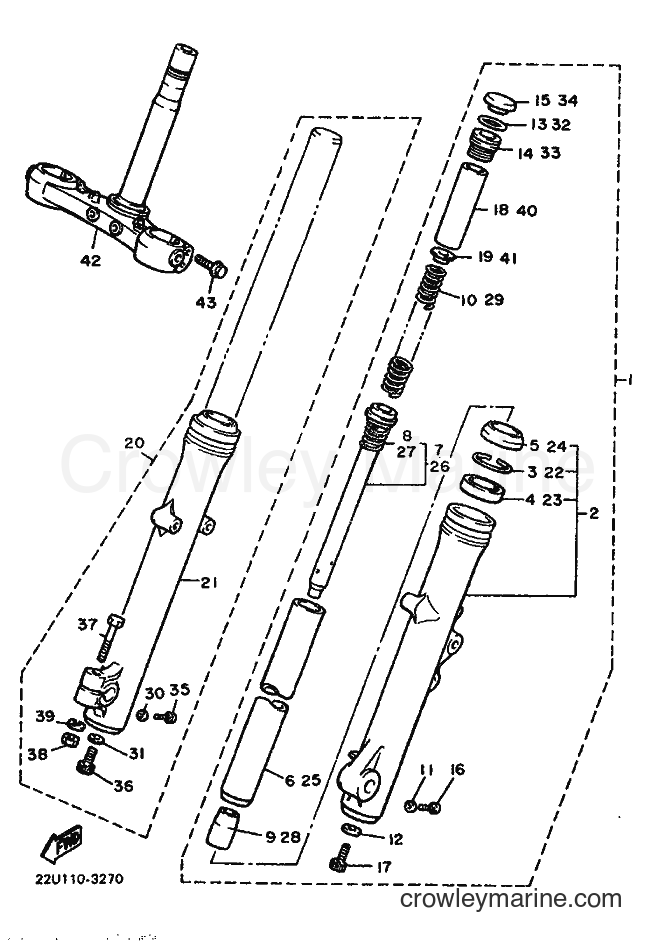

1983 Cruiser XV500 - XV500 (26R0) [020] FRONT FORK diagram
![Yamaha Motors XV500 (26R0) [020] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/h9ut4IvJ.png)
-15%
1
Yamaha Motors
Front Fork Assembly22U-23102-01-00
Required: 1
FRONT FORK ASSY (L.H)
No longer availableSearch Nationwide Inventory
$293.24
You save $51.75
-15%
2
Yamaha Motors
Outer Tube22U-23126-01-38
Required: 1
. TUBE, OUTER (LEFT)
No longer availableSearch Nationwide Inventory
$197.19
You save $34.80
3
Yamaha Motors
. . GASKET4A1-23158-00
Required: 1
. . GASKET
Price unavailable
-15%
4
Yamaha Motors
Oil Seal4ES-23145-00-00
Required: 1
. . OIL SEAL
Supersedes: 15R-23145-00-00
$21.24
You save $3.75
-15%
5
Yamaha Motors
Dust Seal33M-23144-00-00
Required: 1
. . SEAL, DUST
Supersedes: 15R-23144-00-00
$27.19
You save $4.80
-15%
6
Yamaha Motors
Inner Tube22U-23110-01-00
Required: 1
. INNER TUBE COMP.1
No longer availableSearch Nationwide Inventory
$183.59
You save $32.40
-15%
7
Yamaha Motors
Front Fork Cylinder22U-23170-00-00
Required: 1
. CYLINDER COMP., FRONT FORK
No longer availableSearch Nationwide Inventory
$20.35
You save $3.59
-15%
8
Yamaha Motors
Rebound Spring509-23151-L0-00
Required: 1
. . SPRING, REBOUND
No longer availableSearch Nationwide Inventory
$14.44
You save $2.55
-15%
9
Yamaha Motors
SPINDLE TAPER (39K-23173-00-00)3R6-23173-L0-00
Required: 1
. SPINDLE, TAPER
Supersedes: 3R8-23173-L0-00
$16.14
You save $2.85
-15%
10
Yamaha Motors
FRONT FORK SPRING22U-23141-00-00
Required: 1
. SPRING, FRONT FORK
No longer availableSearch Nationwide Inventory
$13.87
You save $2.45
-15%
11
Yamaha Motors
Drain Plug Gasket122-23129-00-00
Required: 1
. GASKET, DRAIN PLUG
$7.22
You save $1.27
12
Yamaha Motors
. GASKET509-23158-00
Required: 1
. GASKET
Price unavailable
-15%
$13.17
You save $2.32
-15%
No longer availableSearch Nationwide Inventory
$50.99
You save $9.00
-15%
15
Yamaha Motors
Front Fork Cap26H-23168-00-00
Required: 1
. CAP, FRONT FORK
Supersedes: 16G-23168-00-00
No longer availableSearch Nationwide Inventory
$10.62
You save $1.87
-15%
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-15%
17
Yamaha Motors
Hexagon Socket Bolt3D8-23181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 278-23181-50-00
$8.07
You save $1.42
-15%
$8.07
You save $1.42
-15%
19
Yamaha Motors
UPPER SPRING SEAT583-23142-00-00
Required: 1
SEAT, SPRING UPPER
No longer availableSearch Nationwide Inventory
$11.89
You save $2.10
-15%
20
Yamaha Motors
Front Fork Assembly22U-23103-01-00
Required: 1
FRONT FORK ASSY (R.H)
No longer availableSearch Nationwide Inventory
$378.24
You save $66.75
-15%
21
Yamaha Motors
OUTER TUBE22U-23136-01-38
Required: 1
. TUBE, OUTER (RIGHT)
No longer availableSearch Nationwide Inventory
$226.09
You save $39.90
-15%
22
Yamaha Motors
Oil Seal Clip4A1-23156-00-00
Required: 1
. . CLIP, OIL SEAL
$5.09
You save $0.90
-15%
23
Yamaha Motors
Oil Seal4ES-23145-00-00
Required: 1
. . OIL SEAL
Supersedes: 15R-23145-00-00
$21.24
You save $3.75
-15%
24
Yamaha Motors
Dust Seal33M-23144-00-00
Required: 1
. . SEAL, DUST
Supersedes: 15R-23144-00-00
$27.19
You save $4.80
-15%
25
Yamaha Motors
Inner Tube22U-23110-01-00
Required: 1
. INNER TUBE COMP.1
No longer availableSearch Nationwide Inventory
$183.59
You save $32.40
-15%
26
Yamaha Motors
Front Fork Cylinder22U-23170-00-00
Required: 1
. CYLINDER COMP., FRONT FORK
No longer availableSearch Nationwide Inventory
$20.35
You save $3.59
-15%
27
Yamaha Motors
Rebound Spring509-23151-L0-00
Required: 1
. . SPRING, REBOUND
No longer availableSearch Nationwide Inventory
$14.44
You save $2.55
-15%
28
Yamaha Motors
SPINDLE TAPER (39K-23173-00-00)3R6-23173-L0-00
Required: 1
. SPINDLE, TAPER
Supersedes: 3R8-23173-L0-00
$16.14
You save $2.85
-15%
29
Yamaha Motors
FRONT FORK SPRING22U-23141-00-00
Required: 1
. SPRING, FRONT FORK
No longer availableSearch Nationwide Inventory
$13.87
You save $2.45
-15%
30
Yamaha Motors
Drain Plug Gasket122-23129-00-00
Required: 1
. GASKET, DRAIN PLUG
$7.22
You save $1.27
-15%
$15.29
You save $2.70
-15%
$13.17
You save $2.32
-15%
No longer availableSearch Nationwide Inventory
$50.99
You save $9.00
-15%
34
Yamaha Motors
Front Fork Cap26H-23168-00-00
Required: 1
. CAP, FRONT FORK
Supersedes: 16G-23168-00-00
No longer availableSearch Nationwide Inventory
$10.62
You save $1.87
-15%
No longer availableSearch Nationwide Inventory
$3.82
You save $0.68
-15%
36
Yamaha Motors
Hexagon Socket Bolt3D8-23181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 278-23181-50-00
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$3.23
You save $0.57
-20%
38
Yamaha Motors
Nut95333-08600-00
Required: 1
. NUT
Supersedes: 95311-08600-00
$3.04
You save $0.76
-20%
39
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
. WASHER, SPRING
Supersedes: 92901-08100-00
In stock
5+ in stock
$4.48
You save $1.12
-15%
$8.07
You save $1.42
-15%
41
Yamaha Motors
UPPER SPRING SEAT583-23142-00-00
Required: 1
. SEAT, SPRING UPPER
No longer availableSearch Nationwide Inventory
$11.89
You save $2.10
42
Yamaha Motors
UNDER BRACKET COMP.26R-23340-F0-33
Required: 1
UNDER BRACKET COMP.
Price unavailable
-15%
43
Yamaha Motors
BOLT WITH WASHER18G-23128-00-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-08012-00
$8.49
You save $1.50
