All diagrams for this model

2012 ATV YFM250R - YFM250R (1BTH) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

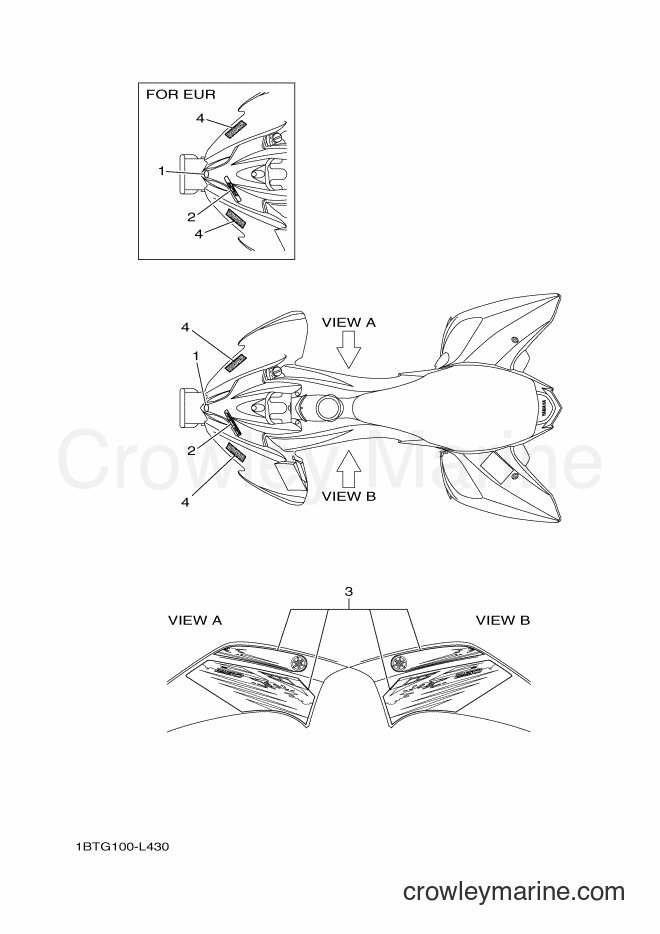

Yamaha Motors YFM250R (1BTH) [010] - GRAPHICS
Change View:
-15%
TUNING FORK MARK
1
Yamaha Motors
TUNING FORK MARK4KN-2836B-11-00
Required: 1
TUNING FORK MARK
Supersedes: 4KN-2836B-10-00
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
EMBLEM, 2
2
Yamaha Motors
EMBLEM, 21AS-21565-10
Required: 1
EMBLEM, 2
Price unavailable
-15%
YAMAHA EMBLEM
4
Yamaha Motors
YAMAHA EMBLEM3GD-2153E-01-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 3GD-2153E-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
