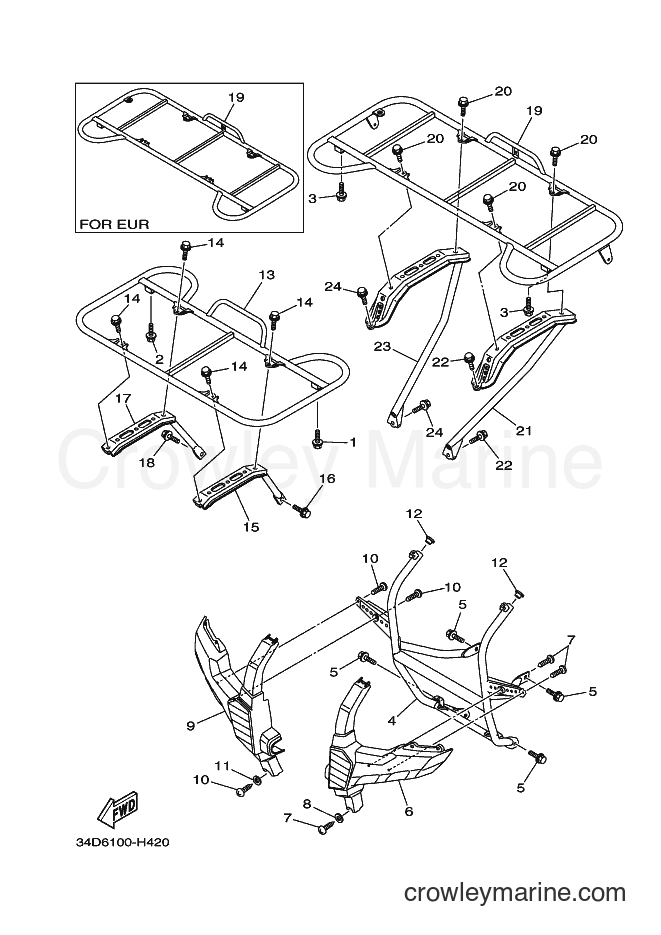

2011 ATV YFM700FWAD - YFM700FWAD (1DT9) [010] GUARD diagram
![Yamaha Motors YFM700FWAD (1DT9) [010] - GUARD](https://cdn.crowleymarine.com/yamaha/LfBpEAzT.png)
-15%
1
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 1
BOLT, WITH WASHER
$3.02
You save $0.53
-15%
2
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 1
BOLT, WITH WASHER
$3.02
You save $0.53
-15%
3
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 2
BOLT, WITH WASHER
$3.02
You save $0.53
-15%
4
Yamaha Motors
Front Carry Bar1HP-F845N-01-00
Required: 1
BAR, CARRY FRONT
Supersedes: 3B4-2845N-00-00
No longer availableSearch Nationwide Inventory
$499.79
You save $88.20
-15%
5
Yamaha Motors
95817-08014-0095811-08014-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-08014-00
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
6
Yamaha Motors
COVER 13B4-2842M-10
Required: 1
COVER 1
Price unavailable
-15%
$43.34
You save $7.65
-15%
7
Yamaha Motors
PAN HEAD TAP SCREW97780-50116-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50516-00
$1.27
You save $0.22
-50%
8
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.75
You save $2.75
9
Yamaha Motors
COVER 23B4-2842N-10
Required: 1
COVER 2
Price unavailable
-15%
$29.74
You save $5.25
-15%
10
Yamaha Motors
PAN HEAD TAP SCREW97780-50116-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50516-00
$1.27
You save $0.22
-50%
11
Yamaha Motors
Plain Washer92990-05200-00
Required: 1
WASHER
Supersedes: 92902-05200-00
In stock
Only 1 remaining
$2.75
You save $2.75
-15%
$8.07
You save $1.42
-15%
13
Yamaha Motors
FRONT CARRIER1HP-F4841-00-00
Required: 1
CARRIER, FRONT
Supersedes: 3B4-24841-01-00
No longer availableSearch Nationwide Inventory
$209.94
You save $37.05
-15%
14
Yamaha Motors
95817-08014-0095811-08014-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-08014-00
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
15
Yamaha Motors
Front Carrier Stay1HP-F4821-00-00
Required: 1
STAY, FRONT CARRIER 1
Supersedes: 3B4-24821-00-00
No longer availableSearch Nationwide Inventory
$65.44
You save $11.55
-15%
16
Yamaha Motors
Bolt with Washer90119-08118-00
Required: 1
BOLT, WITH WASHER
$7.22
You save $1.27
-15%
17
Yamaha Motors
Front Carrier Stay1HP-F4822-00-00
Required: 1
STAY, FRONT CARRIER 2
Supersedes: 3B4-24822-00-00
No longer availableSearch Nationwide Inventory
$66.29
You save $11.70
-15%
18
Yamaha Motors
Bolt with Washer90119-08118-00
Required: 1
BOLT, WITH WASHER
$7.22
You save $1.27
19
Yamaha Motors
CARRIER, REAR3B4-24842-11
Required: 1
CARRIER, REAR
Price unavailable
-15%
19
Yamaha Motors
Rear Carrier1HP-F4842-00-00
Required: 1
CARRIER, REAR
Supersedes: 3B4-24842-01-00
$216.74
You save $38.25
-15%
20
Yamaha Motors
95817-08014-0095811-08014-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-08014-00
No longer availableSearch Nationwide Inventory
$1.36
You save $0.24
-15%
21
Yamaha Motors
Carrier Frame1HP-F482J-00-00
Required: 1
FRAME, CARRIER 1
Supersedes: 3B4-2482J-10-00
$522.74
You save $92.25
-15%
22
Yamaha Motors
Bolt with Washer90119-10044-00
Required: 2
BOLT, WITH WASHER
$7.22
You save $1.27
-15%
23
Yamaha Motors
CARRIER FRAME 21HP-F482K-00-00
Required: 1
FRAME, CARRIER 2
Supersedes: 3B4-2482K-10-00
$339.14
You save $59.85
-15%
24
Yamaha Motors
Bolt with Washer90119-10044-00
Required: 2
BOLT, WITH WASHER
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
