All diagrams for this model

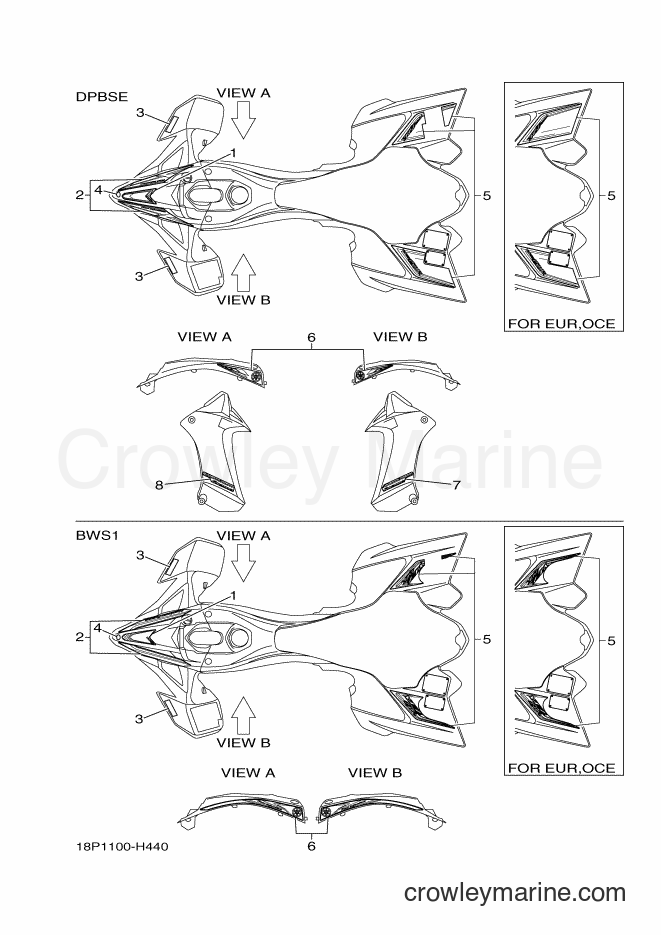

2009 ATV YFZ450R - YFZ450R (18P3) [010] GRAPHICS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFZ450R (18P3) [010] - GRAPHICS
Change View:
-15%
Graphic Set
2
Yamaha Motors
Graphic Set18P-2159A-00-00
Required: 1
GRAPHIC SET 1
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
-15%
YAMAHA EMBLEM
3
Yamaha Motors
YAMAHA EMBLEM4ES-2153E-41-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 4ES-2153E-40-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
-15%
TUNING FORK MARK
4
Yamaha Motors
TUNING FORK MARK4KN-2836B-11-00
Required: 1
TUNING FORK MARK
Supersedes: 4KN-2836B-10-00
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
GRAPHIC SET,REAR FENDER
5
Yamaha Motors
GRAPHIC SET,REAR FENDER18P-2165A-10
Required: 1
GRAPHIC SET,REAR FENDER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
